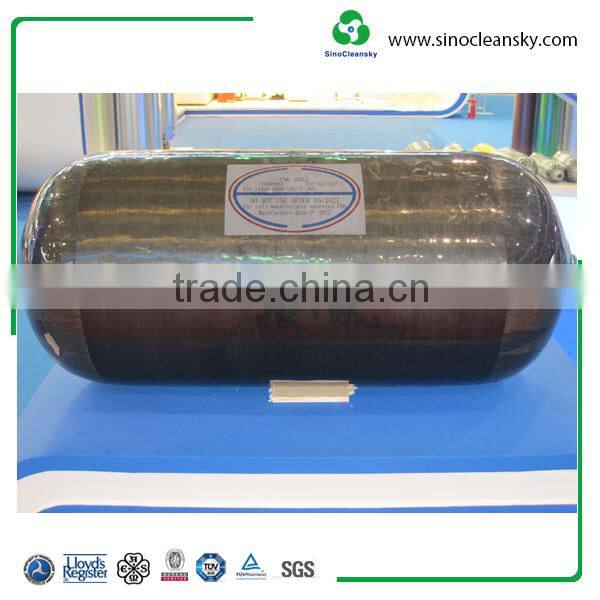

Cheap Price! CNG Cylinder Type 3
|
Name |
Type III CNG aluminum liner full-wrapped with carbon fiber cylinder |
Manufacturing STD |
ISO11119, DOT |
|
Outer diameter |
345mm, 360mm, 373mm |
|
Water capacity |
50L-200L |
|
Working pressure |
20MPA, 25MPA |
CNG cylinder type 3
SinoCleansky specializes in providing a comprehensive solution of NGV, covering various products and services. Particularly, SinoCleansky has a strong advantage in providing the essential part of NGV, the high pressure CNG cylinder, which is used to store the compressed natural gas on board the vehicle or as back-up storage as cascade cylinders. SinoCleansky CNG cylinders are manufactured as per different international standards, principally ISO11439, NZS5454, NGV2-2000 and etc. Our productions have been certified by the international third-party authorities including LRS, BV, SGS, DOT etc.If you focus on CNG cylinder3, especially for CNG cylinder type 4, SinoCleansky will be your excellent professional supplier.
We can provide:
Type I CNG steel cylinder for vehicle
Type II CNG composite cylinder for vehicle (steel liner hoop-wrapped with glass fiber)
Type III CNG composite cylinder for vehicle (aluminum liner fully-wrapped with carbon fiber)
CNG storage cylinder for cascade, both type I and type II and type III
Main types
Standard |
Type |
Liner Outside Diameter (mm) |
Composite Cylinder Outside Diameter (mm) |
Water Capacity (L) |
Height (mm) |
Weight (kg) |
Service Pressure (MPa) |
ISO11119 |
CNG3-CRP373-ISO-250-80 |
373 |
396 |
80 |
945 |
41 |
25 |
ISO11119 |
CNG3-CRP373-ISO-250-100 |
373 |
396 |
100 |
1145 |
44 |
25 |
ISO11119 |
CNG3-CRP373-ISO-250-135 |
373 |
396 |
135 |
1487 |
58 |
25 |
ISO11119 |
CNG3-CRP373-ISO-250-150 |
373 |
396 |
150 |
1633 |
64 |
25 |
