2 Ton. 2.5 Ton and 3 Ton Hand Pallet Truck
- Shanghai
- Money Gram
You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | JIALIFT | Model Number | DF-30 | |
| Type | Manual Pallet Truck | Power Souce | Other, Manual | |
| Rated Loading Capacity | 3000kg | Max. Lifting Height | 190 | |
| Min. Lifting Height | 85 | Fork Length | 1100/1220mm | |
| Fork Width | 550/685mm |
Product Description
Specifications
Standard equip hand shank, equip Up and down button for both side.Folding non-slip pedal, make the feet feel comfortable
The specification of hand pallet truck DF-20 DF 25 and DF-30

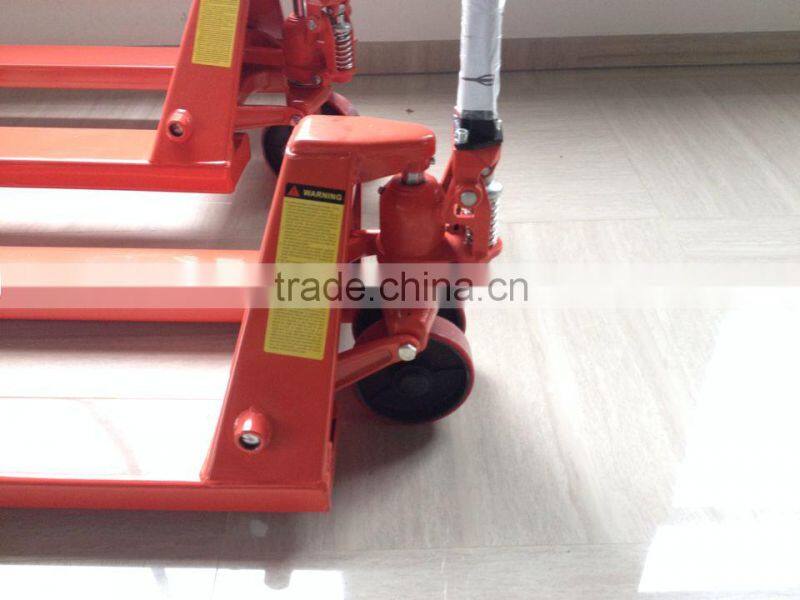

1, The oil pump with the manual slow down control value.

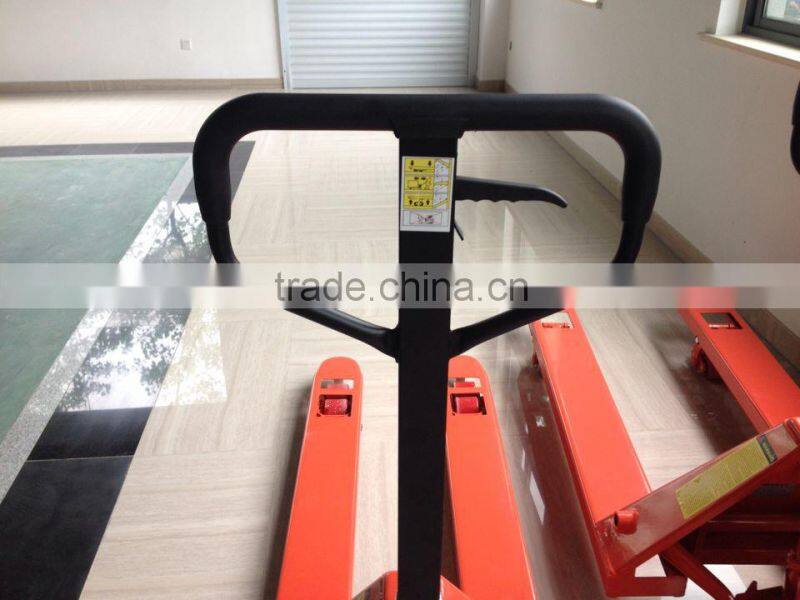

2, Three-position adjustadle Fixing Handle.
3, The push rod under the fork is adjustable, To control the minimum height of the pallet fork.
4, The pallet fork front-end is curved, convenient for loading and unloading of goods.
5, The fork with “c” structure can support overloading, is very strong.
6, All Acitivites add long rime lubricating oil
Parameter list:
Model | unit | DF20 | DF25 | DF30 |
Load capacity | kg | 2000 | 2500 | 3000 |
Min.fork height | mm | 75 | 85 | 75 |
Max.fork height | mm | 190 | 200 | 190 |
Steeling wheel | mm | Φ180×50 | Φ180×50 | Φ180×50 |
Load roller | mm | Φ74×55 | Φ80×70 | Φ74×70 |
Size of fork (width*thickness ) | mm | 150×50 | 160×60 | 160×60 |
width overall forks | mm | 550/685 | 550/685 | 550/685 |
Fork length | mm | 1100/1150/1220 | 1100/1150/1220 | 1100/1150/1220 |

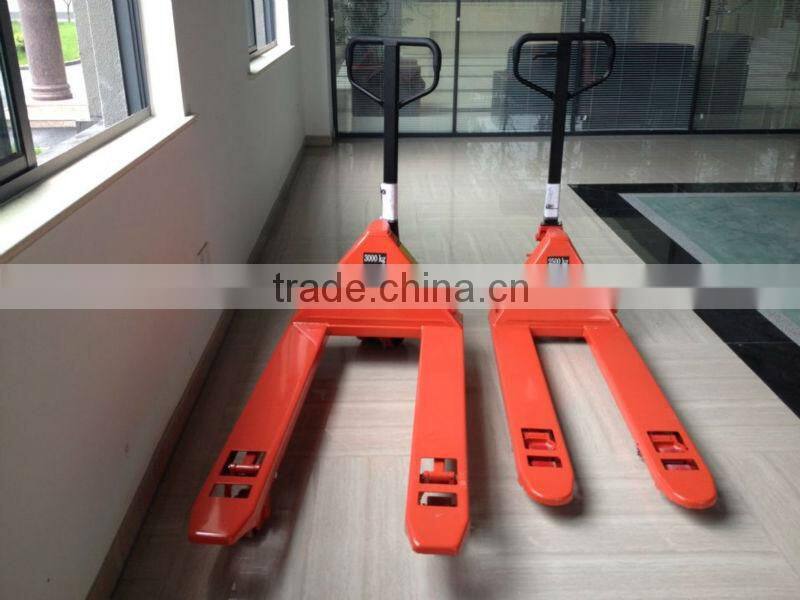

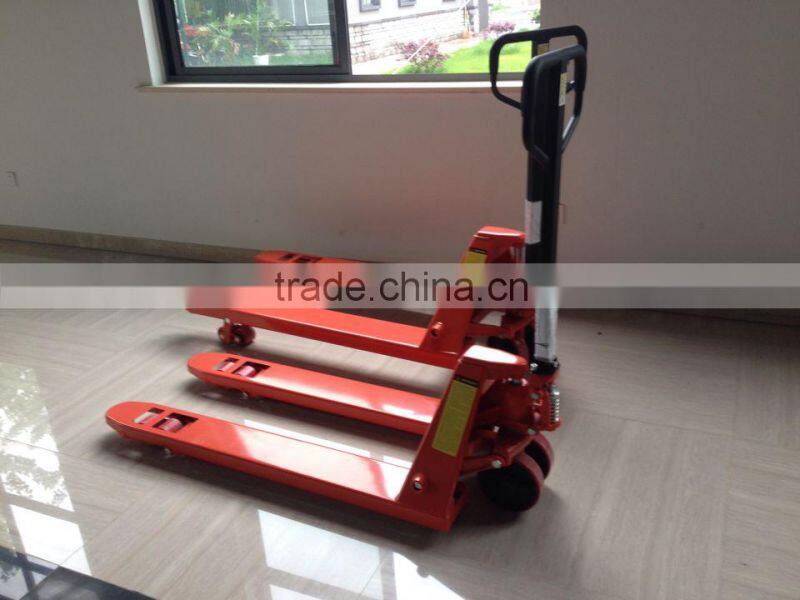

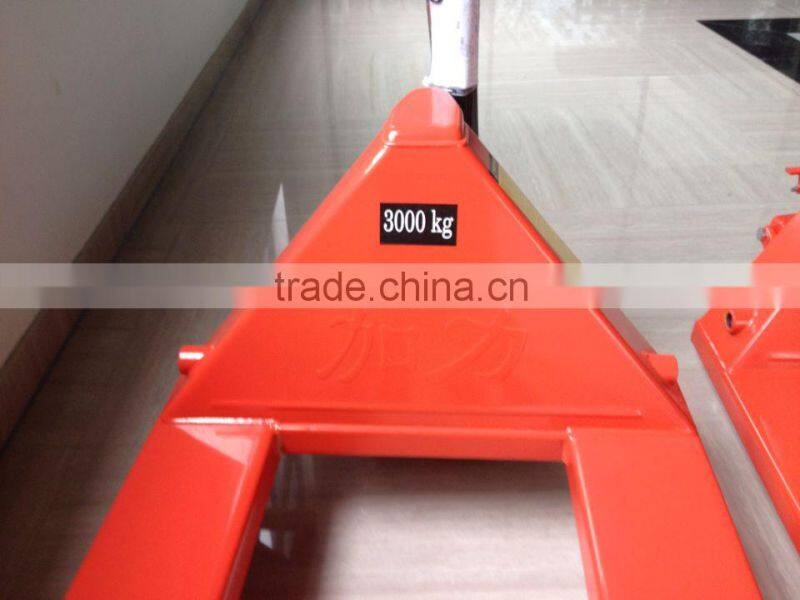

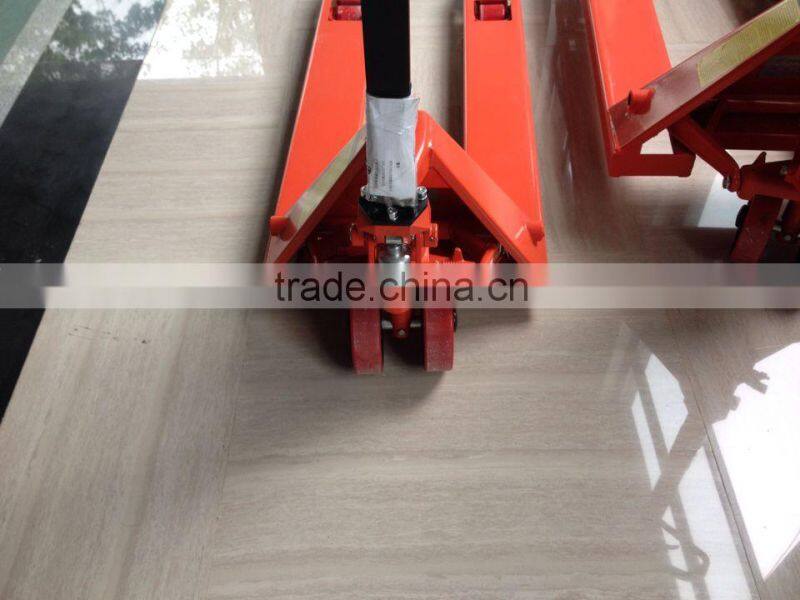

The pictures:
