Specifications
1, Load capacity: 500kg, 1000kg, 2000kg.2, Max.lift height: 1040mm

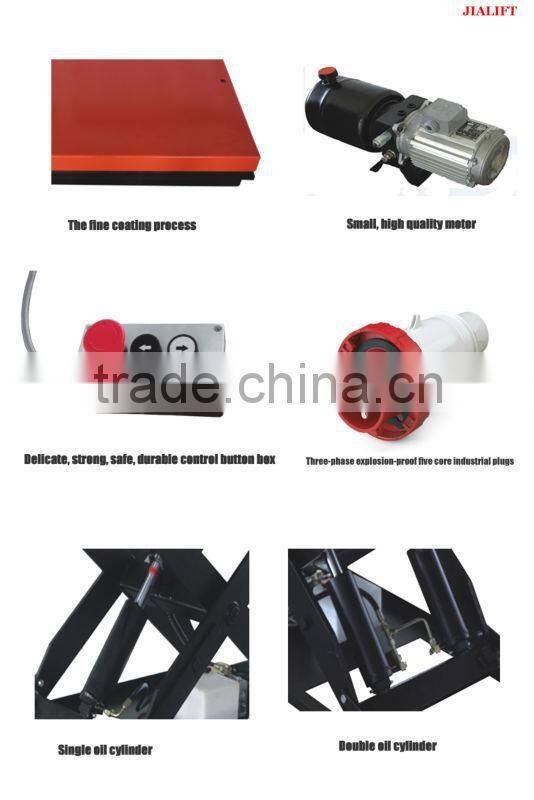

Electric Platform HIW Series
· The tried and trusted lift table with study construction.
· Multiple uses such as: lifting and lowering materials, level compensation when fitting machines, installations in conveyor system etc.
· Compact hydraulic design with all safety components complying to EN1570.
· High pressure cylinder with dual safety function.
· Hard chrome plated piston rods.
· Lift and lower by easily push buttons to reach the ergonomically correct working height.
· With emergency switch off and a 3m long control cable.
· With different loading capacity up to 3000kg for your optio
The specification:
Electric lift table HIW |
| |||
Item/Type |
| HIW1.0EU | HIW2.0EU | HIW4.0EU |
Capacity Q | kg | 500 | 1000 | 2000 |
Min.fork height | mm | 190 | 190 | 190 |
Max.fork height | mm | 1040 | 1040 | 1040 |
Table size | mm | 1300×800 | 1300×800 | 1300×800 |
Motor power | mm | 0.75 | 0.75 | 0.75 |
Weight | mm | 160 | 220 | 280 |
