Home > Transportation > Forklifts & Parts > Forklift > 2 Ton Electric Lifted Stacker

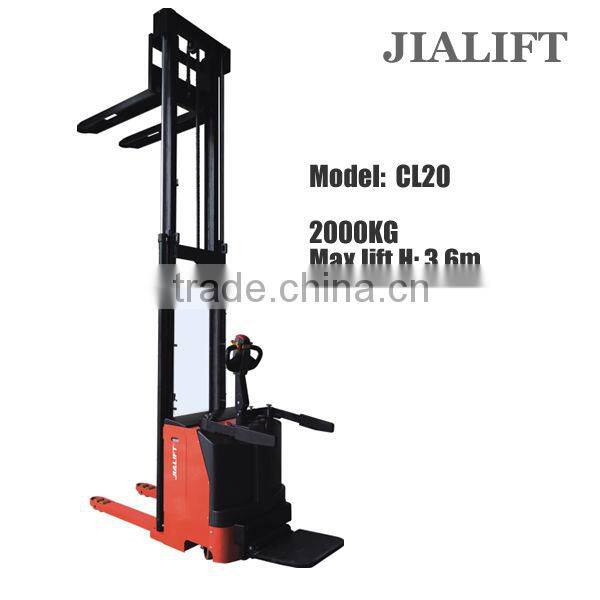

2 Ton Electric Lifted Stacker

Name: 2 Ton Electric Lifted Stacker
Brand: JIALIFT
SKU: 119895791
Availability: InStock

2 Ton Electric Lifted Stacker thumbnail-1

US$ 3,478 - 4,307 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

JIALIFT

Contact Supplier Request Quote Chat Now

Zhejiang Jialift Warehouse Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Zhejiang, China

Brand Name JIALIFT

Model Number 2 Ton load capacity electric stacker

Type Other, Full electric stacker

Power Souce DC Motor

Rated Loading Capacity 2000kg

Max. Lifting Height 3.6m

Min. Lifting Height 86mm

Fork Length 1150mm

Fork Width 180mm

Specifications

High performance hydraulic power unit, combined DC motor, gear pump. Value disc and pipe components.

Two MAST full electric hydraulic stacker 2TON

1, High performance hydraulic power unit, combined DC motor, gear pump. Value disc and pipe components.

2, With small size, high reliability, stable work, energy conservation, noise reduction, environmental protection, etc.

3, Electronic control system which is imported from US Curtis is responsive, good manipulation, automatic regeneration, reverse connect braking and wireless control, and other functions

The Parameter table:

Identification	1.1	Model		CL2016		CL2026	CL2032		CL2036
	1.2	Operate type		Stand on driving type
	1.3	Drive		Electric
	1.4	Load capacity	kg	2000
	1.5	Load capacity. Fork’s highest point		2000	1500			1400	1200
	1.6	Load center distance	mm	600
Weight	2.1	Service weight	kg	809	901			924	943
Wheels	3.1	Tyres		Polyurethane wheels
	3.2	Axle loading, laden rear	mm	Φ250×80, 2 pcs
	3.3	Axle loading, laden front	mm	Φ80×70, 4pcs
Size	4.1	Lift height	mm	1600		2600	3200		3600
	4.2	Height lowered fork	mm	85
	4.3	Overall length	mm	1893
	4.4	Overall width	mm	805
	4.5	Fork length	mm	1150
	4.6	Outside width	mm	570/695
	4.7	Single fork width	mm	180
	4.8	Turning radius	mm	1460
Performance data	5.1	Lift speed, laden/unladen	m/s	150/105
	5.2	Lowering speed. Laden/unladen	m/s	95/100
	5.3	Service brake		Electromagnetic
	5.4	Drive speed, laden/unladen	Kw/h	5.5/5.2
E-motor	6.1	Lift motor	kw	3
	6.2	Drive motor	kw	1.2
	6.3	Battery voltage, nominal capacity	v/ah	24/200
	6.4	Battery type		Industrial battery
	6.5	Battery weight	kg	210
	6.6	Battery working time, full charge	h	5
