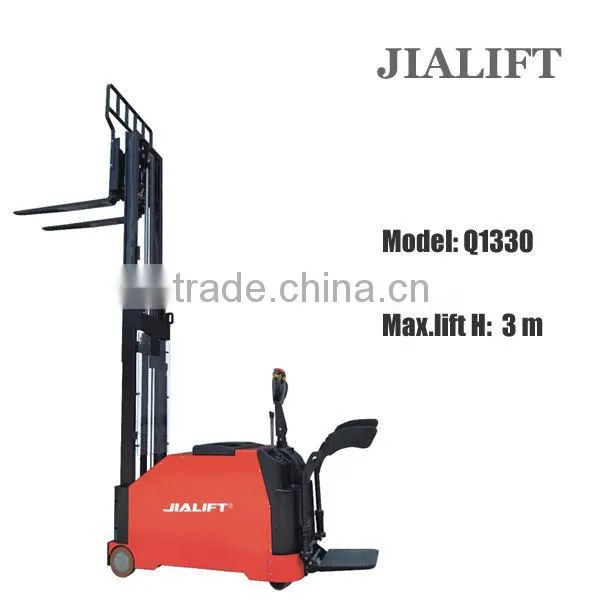

3m Lift Height Electric Reach Stacker Q1330

Name: 3m Lift Height Electric Reach Stacker Q1330
Brand: JIALIFT
SKU: 119894783
Availability: InStock

US$ 6,000 - 8,461 MOQ: 1 Unit

Key Specifications

Condition:

New

Place of Origin:

China

Brand Name:

JIALIFT

Zhejiang Jialift Warehouse Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin China

Brand Name JIALIFT

Model Number Q1330

Type Other, Electric Reach Stacker

Power Souce DC Motor

Rated Loading Capacity 1300kg

Max. Lifting Height 3000mm

Min. Lifting Height 50mm

Fork Length 950mm/1150mm

Fork Width 100mm

Overall Dimensions 35/100/950(1150)mm

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1, Load capacity: 1300kg.
2, Max.lift height: 3m.

Identification	1.1	Model		Q1316	Q1318	Q1330	Q1337	Q1345
	1.2	Operate type		Stand on
	1.3	Drive		Electric
	1.4	Load capacity	kg	13
	1.5	Load capacity. Fork’s highest point		1300	1300	1100	1000	700
	1.6	Load center distance	mm	500
Weight	2.1	Weight	kg	1820	1850	2020	2235	2460
Wheels	3.1	Tyres		Polyurethane wheels
	3.2	Axle loading, laden rear	mm	Φ149×58, 4pcs
	3.3	Axle loading, laden front	mm	Φ210×70, 2 pcs
Size	4.1	Lift height	mm	1600	1800	3000	3700	4500
	4.2	Height lowered fork	mm	50
	4.3	Overall length	mm	2225(2425)2765			2225(2425)2965
	4.4	Overall width	mm	1100
	4.5	Fork length	mm	950/1150
	4.6	Outside width	mm	200-740
	4.7	Single fork width	mm	100
	4.8	Turning radius	mm	1450			1600
Performance data	5.1	Lift speed, laden/unladen	m/s	85/122			110/165
	5.2	Lowering speed. Laden/unladen	m/s	125/80			300/220
	5.3	Service brake		Electromagnetic
