Home > Products > Electric pallet trucks > 2000kg Stand-on Electric Pallet Truck
2000kg Stand-on Electric Pallet Truck
- 45 Unit / Units per Month
- Shanghai or Ningbo
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | JIALIFT |
Model Number: | SL20 | Type: | Powered Pallet Truck | Power Souce: | DC Motor |
Rated Loading Capacity: | 2000KG | Max. Lifting Height: | 200MM | Min. Lifting Height: | 85MM |
Fork Length: | 1150/1220MM | Fork Width: | 540/685MM | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1, Ideal solution for low-duty applications.2, Built- in charger for high autonomy.
The specification of full electric pallet truck SL20
Identification | 1.1 | Model |
| SL20 |
1.2 | Operate type |
| Pedestrian | |
1.3 | Drive |
| Electric | |
1.4 | Load capacity | kg | 2000 | |
1.5 | Load capacity. Fork’s highest point | kg | 2000 | |
1.6 | Load center distance | mm | 600 | |
Weight | 2.1 | Service weight | kg | 328 |
Wheels | 3.1 | Tyres |
| Polyurethane wheels |
3.2 | Axle loading, laden rear | mm | Φ250×80 | |
3.3 | Axle loading, laden front | mm | Φ80×70 | |
3.4 | Wheels number front/rear | pcs | 2(4)/2 | |
Size
| 4.1 | Lift height | mm | 200 |
4.2 | Height lowered fork | mm | 85 | |
4.3 | Overall length | mm | 1850 | |
4.4 | Overall width | mm | 690 | |
4.5 | Fork length | mm | 1150/1220 | |
4.6 | Outside width | mm | 540/685 | |
4.7 | Single fork width | mm | 160 | |
4.8 | Turning radius | mm | 1400 | |
Performance data | 5.1 | Travel speed, laden/unladen | km/h | 5.0/5.5 |
5.2 | Lift speed, laden/unladen | m/s | 28/36 | |
5.3 | Lowering speed. Laden/unladen | m/s | 42/28 | |
5.4 | Service brake |
| Electromagnetic | |
E-motor | 6.1 | Lift motor | kw | 0.8/24V |
6.2 | Drive motor | kw | 1.2/24V | |
6.3 | Battery voltage, nominal capacity | v/ah | 24V/200Ah | |
6.4 | Battery type |
| Maintenance-free |

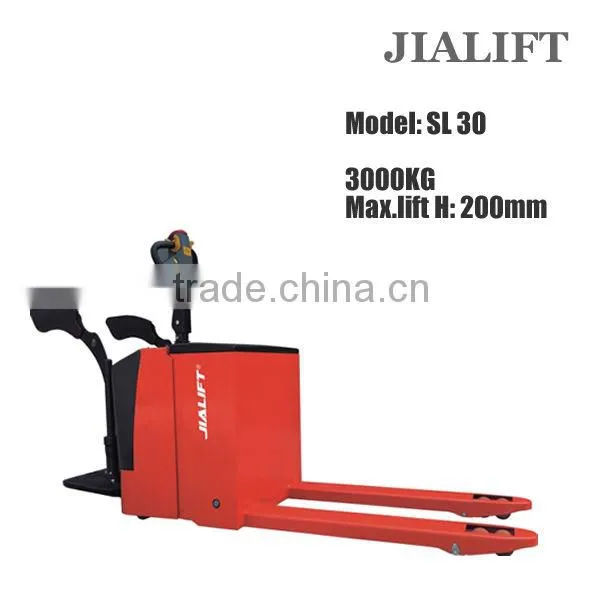

Product picture
