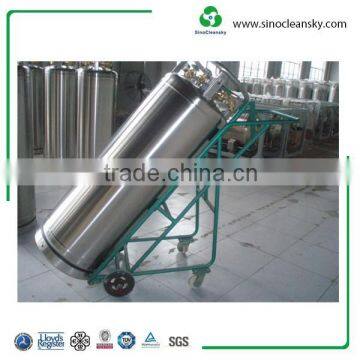

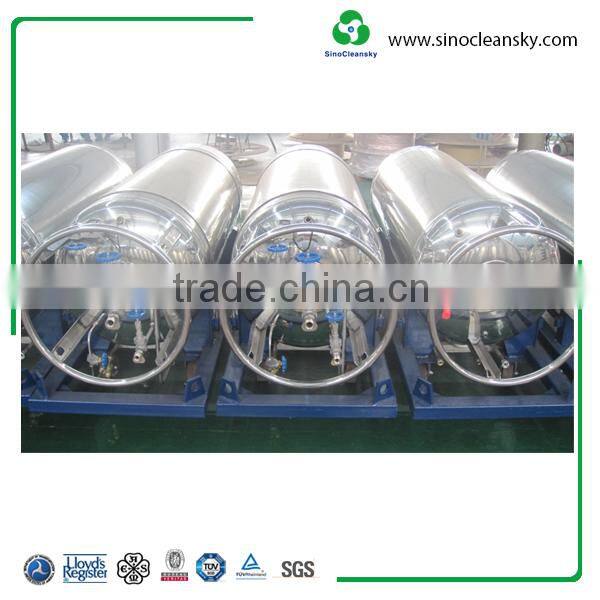

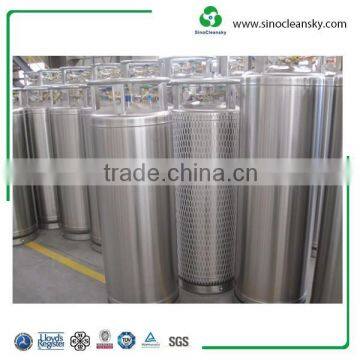

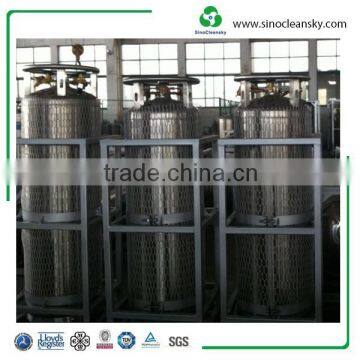

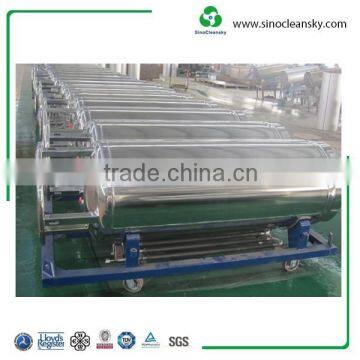

Best Quality Cryogenic Cylinder (dewar flask) in China
|
Manufacturing STD |
DOT-4L,TC-4LM,GB(Chinese standard),KGS etc. |
Outside diameter |
507mm etc |
|
Water capacity |
165 L - 495L |
|
Working pressure |
1.38Mpa, 2.02Mpa, 2.84Mpa etc. |
|
Typical size |
DPL175, DPL195, DPL210, DPW275,DPW335, DPW450 |
Cryogenic Liquid Cylinder
We SinoCleansky specialize in designing and manufacturing the whole series of cryogenic gas cylinder including cryogenic cylinder, cryogenic liquid cylinder, cryogenic tank container and cryogenic lorry tanker which apply vacuum powder insulation or high-vacuum multi-layer insulation, the vessels have good thermal insulation performance, compact structure, easy operation and maintenance with after-sales service.
Our products are manufactured according to the GB150,GB18442, also including ASME and other international standards which can guarantee the good quality, fast delivery time, competitive price, favorable payment terms etc.
SinoCleansky is worthy your trusting in all the fields including providing system solutions, satisfying key task demands and providing complete technical supports.
Main Types
High Pressure Cylinder Series | ||||||||||
Model |
CT160HP |
CT180HP |
||||||||
Applicable specfication |
DOT-4L & TC-4LM |
DOT-4L & TC-4LM |
||||||||
Dimension(O.D.x Height) (mm) |
Φ508x1480 |
Φ508x11614 |
||||||||
Empty weight (kg) |
131 |
148 |
||||||||
Nominal working pressure (Mpa/psi) |
2.02/292 |
2.02/292 |
||||||||
Insulation type |
High vacuum multi-layers thermal-insulating |
|||||||||
Material |
Autstenitic Stainless Steel (06Cr19Ni10 or 304) |
|||||||||
Design temperature(℃) |
-196 |
|||||||||
Setting pressure of safety device (Mpa/psi) |
Safety valve setting pressure: 2.41/350, burst pressure of bursting disc: 4.03/584 |
|||||||||
Operating pressure set in factory (Mpa/psi) |
2.07-2.17/300-315 |
2.07-2.17/300-315 |
||||||||
Nominal volume (liters) |
175 |
195 |
||||||||
Effective capacity/liquid (liters) |
165 |
185 |
||||||||
Filling medium |
LO2 |
LN2 |
LAr |
LCO2 |
LN2O |
LO2 |
LN2 |
LAr |
LCO2 |
LN2O |
Storage capacity/gas (Nm3) |
114 |
91 |
111 |
89 |
84 |
127 |
102 |
124 |
99 |
94 |
Max. filling weight (kg) |
163 |
114 |
198 |
176 |
166 |
182 |
127 |
221 |
195 |
185 |
Evaporation Rate (%/d) |
LN2: ≤2.1 |
LN2: ≤2.0 |
||||||||
Gas flow rate Scfh (Nm3/hr) |
LO2/LN2/LAr : 350 (9.2) ; LCO2/LN2O : 110(3) |
|||||||||
Liquid Level Gauge |
Float |
|||||||||
Surface trearment |
Polish |
|||||||||
Base Construction |
Foot ring / Stainless steel-rubber base |
|||||||||
High Pressure Cylinder Series | |||||
Model |
CT200HP |
||||
Applicable specfication |
DOT-4L & TC-4LM |
||||
Dimension(O.D.x Height) (mm) |
Φ508x1666 |
||||
Empty weight (kg) |
153 |
||||
Nominal working pressure (Mpa/psi) |
2.02/292 |
||||
Insulation type |
High vacuum multi-layers thermal-insulating |
||||
Material |
Autstenitic Stainless Steel (06Cr19Ni10 or 304) |
||||
Design temperature(℃) |
-196 |
||||
Setting pressure of safety device (Mpa/psi) |
Safety valve setting pressure: 2.41/350, burst pressure of bursting disc: 4.03/584 |
||||
Operating pressure set in factory (Mpa/psi) |
2.07-2.17/300-315 |
||||
Nominal volume (liters) |
205 |
||||
Effective capacity/liquid (liters) |
195 |
||||
Filling medium |
LO2 |
LN2 |
LAr |
LCO2 |
LN2O |
Storage capacity/gas (Nm3) |
134 |
107 |
130 |
104 |
98 |
Max. filling weight (kg) |
192 |
134 |
233 |
206 |
195 |
Evaporation Rate (%/d) |
LN2: ≤2.0 |
||||
Gas flow rate Scfh (Nm3/hr) |
LO2/LN2/LAr : 350 (9.2) ; LCO2/LN2O : 110(3) |
||||
Liquid Level Gauge |
Float |
||||
Surface trearment |
Polish |
||||
Base Construction |
Foot ring / Stainless steel-rubber base |
||||
