1.Product Feature
1.Shell is made of cast aluminum alloy die casting, special surface treatment;
2. Using 7 joules resistant anti-high-energy impact glass, and for the anti-glare design;
3.Seals with high temperature, anti-aging silicone rubber, has a good waterproof and dustproof performance;
4.Independent cooling structure design, power supply box light overlap less, reduce light chamber, the power chamber temperature to ensure lamp life;
5.Simple structure, small number of parts, assembly is simple;
6.100W maximum heat dissipation area and heat capacity designed to effectively achieve power design flexibility;
7.Using 60 ° X 135 ° lens, forming a rectangular beam, light focus, adapt to the mine workings and plant lighting, light angle adjustable;
8.Lamp Explosion coplanar 3, to meet the requirements of GB3836.
2. Product Application
2.1 Explosive atmosphere, dust can be explosive places
2.2 Chemical industry, mines and other dangerous places lighting
The main technical parameters:
| Power | Curren(mA) | Voltage(V) | Flux(lm) | CCT(k) | CRI | Lamp Luminous Efficiency(lm/w) | Picture |
| 3W | 300 | 9~10 | 280 | 6000 | Ra75 | >90 | |
| 4W | 300 | 12~13.5 | 370 | 6000 | Ra75 | >90 | |
| 5W | 300 | 15~17.5 | 450 | 6000 | Ra75 | >90 | |
| 7W | 300 | 21~24.5 | 650 | 6000 | Ra75 | >90 | |
| 9W | 300 | 27~31.5 | 820 | 6000 | Ra75 | >90 | |
| 10W | 300 | 30~35 | 900 | 6000 | Ra75 | >90 | |
| 15W | 750 | 18~21 | 1500 | 6000 | Ra75 | >90 | |
| 20W | 600 | 30~35 | 1800 | 6000 | Ra75 | >90 | |
| 30W | 750 | 36~42 | 3200 | 6000 | Ra75 | >90 |
| Type | Current(mA) | Voltage(V) | Flux(lm) | CCT | CRI | Lamp Luninou Efficeiency(lm/w) |
| 3528 | 20 | 3.0~3.4 | 7~9 | 6000 | 80 | 130 |
| 3014 | 30 | 3.0~3.4 | 9~11 | 6000 | 80 | 130 |
| 2835 | 40 | 3.0~3.4 | 14~17 | 6000 | 80 | 140 |
| 5050 | 60 | 3.0~3.4 | 18~22 | 6000 | 80 | 130 |
Our workshop

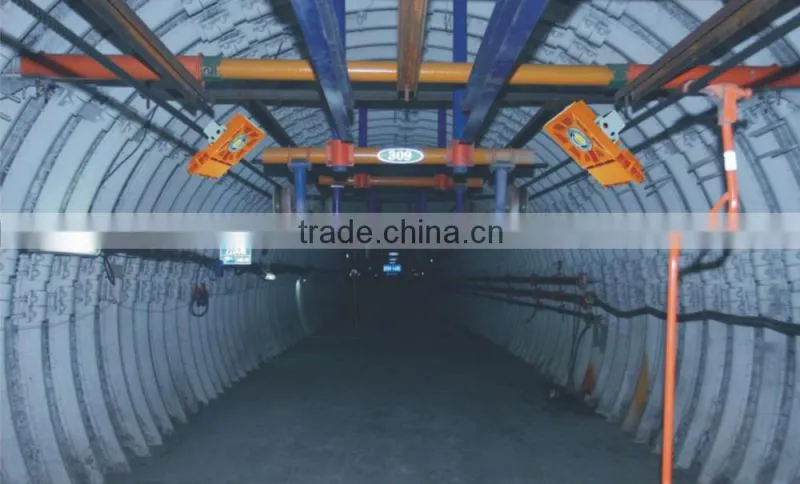

Application
