1.Product Feature
BLEDD3-series LED explosionproof lamp applies to Zone 1and 2, ⅡA,ⅡB type T5~T6 group explosive gas or steamy environment with AC50Hz,rated voltage 220V below 250W rated power as workshop or site lamp.
2. Product Environment
1.Environment air pressure is 86~106 kPa;
2.Ambient temperature is -20~+40℃;
3.Air relative humidity is not higher than 85%(under+2
4.It applies to Zone 1 and 2, ⅡA,ⅡB type T5~T6 group explosive gas or steamy environment;
5.In a place free of concentrated corrosive gas,steam and dust damaging metal or insulation property;
6.In a place free of violent shake or impact vibration;
7.In a place where immersion into other liquid can be prevented;
8.Pollution degree 3;
9.Installation type Ⅱ type;
3.Product parameter
ProductType |
Voltage | Power |
Protection Degree |
Explosionproof Sign |
Corrosionproof Degree |
Outer CableDia.(mm) |
| BLEDD4-50 | 220V | 50W | Ip65 | Exdll CT6Gb | wwf1 | 10-14 |
| BLEDD4-80 | 220V | 80W | Ip65 | Exdll CT6Gb | wwf1 | 10-14 |
| BLEDD4-100 | 220V | 100W | Ip65 | Exdll CT6Gb | wwf1 | 10-14 |
| BLEDD4-120 | 220V | 120W | Ip65 | Exdll CT6Gb | wwf1 | 10-14 |
The main technical parameters:
| Power | Curren(mA) | Voltage(V) | Flux(lm) | CCT(k) | CRI | Lamp Luminous Efficiency(lm/w) | Picture |
| 3W | 300 | 9~10 | 280 | 6000 | Ra75 | >90 | |
| 4W | 300 | 12~13.5 | 370 | 6000 | Ra75 | >90 | |
| 5W | 300 | 15~17.5 | 450 | 6000 | Ra75 | >90 | |
| 7W | 300 | 21~24.5 | 650 | 6000 | Ra75 | >90 | |
| 9W | 300 | 27~31.5 | 820 | 6000 | Ra75 | >90 | |
| 10W | 300 | 30~35 | 900 | 6000 | Ra75 | >90 | |
| 15W | 750 | 18~21 | 1500 | 6000 | Ra75 | >90 | |
| 20W | 600 | 30~35 | 1800 | 6000 | Ra75 | >90 | |
| 30W | 750 | 36~42 | 3200 | 6000 | Ra75 | >90 |
| Type | Current(mA) | Voltage(V) | Flux(lm) | CCT | CRI | Lamp Luninou Efficeiency(lm/w) |
| 3528 | 20 | 3.0~3.4 | 7~9 | 6000 | 80 | 130 |
| 3014 | 30 | 3.0~3.4 | 9~11 | 6000 | 80 | 130 |
| 2835 | 40 | 3.0~3.4 | 14~17 | 6000 | 80 | 140 |
| 5050 | 60 | 3.0~3.4 | 18~22 | 6000 | 80 | 130 |
Our workshop

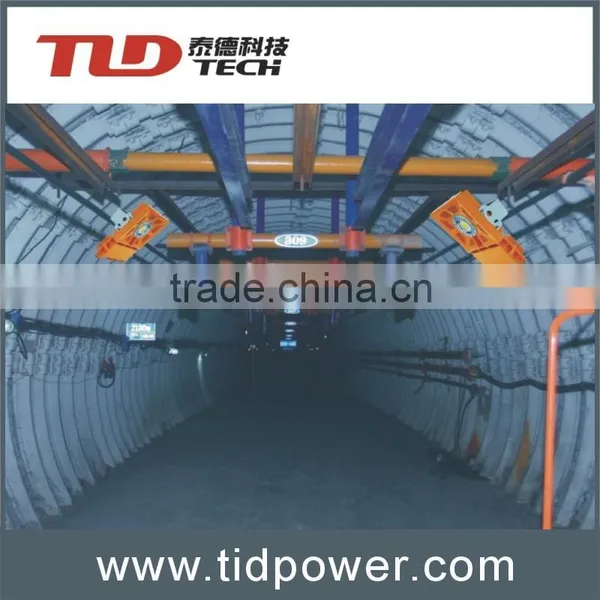

Application
