1.Standard:IEC 282-2;GB/T15166.3;DL/T 640-1997.ANSI/IEEEC37.41.
2.Main Parameters:
| Type | Rated voltage(kV) | Rated current(A) | Breaking current(kV) | Impulse voltage(kV) | Power frequency withstand voltage(kV) | Creepage distance(MM) | Weight(KG) | Volume(CM) |
| HCCRW12-100/12.5 | 12(15) | 100 | 12.5 | 110 | 42 | 230 | 6.5 | 38.5*340*10 |
| HCCRW12-200/12.5 | 12(15) | 200 | 12.5 | 110 | 42 | 230 | 6.6 | 38.5*340*10 |
| HCHRW12-100/12.5 | 12(15) | 100 | 12.5 | 110 | 42 | 310 | 4.1 | 38.5*340*10 |
HCHRW12 200/12.5 | 12(15) | 200 | 12.5 | 110 | 42 | 310 | 4.2 | 38.5*340*10 |
3.Test Report.
Overall structured reasonable
The overall design fuses rigorous rational, sophisticated materials, assembly processes strict, between the parts with reliable, flexible movement. Not only to ensure the reliability of the product to run, but also to ensure that the operator can work very easily and conveniently.

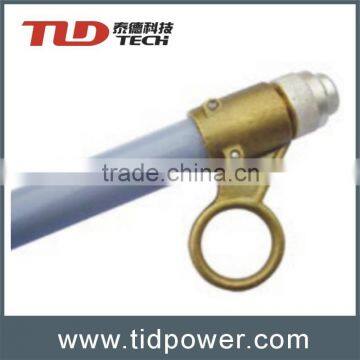

Anti UV water melting tube
Melting pipe with epoxy and fiberglass Pipe interrupter dielectric material consisting of outer plus Anti UV outdoor paint, high mechanical strength, long service life and effective, appropriate geometry, exhaust single-ended mode, accelerate the flow velocity, provides the ability to blow the arc, which can meet the breaking of large and small current requirements.
| Name | synthetic are quenching tube | Inner tube | Vulcanized Fiber Tube | Protective Coat | Epoxy resin/Fiberglass |
| |||||
| Item | No | Material name | Content | Remark | |
| A:Inner tube | 1 | contton paper | 100 | Total are tube materials' one hundred precent | |
| B:Protective coat | 2 | Epoxy Resin | 20 | Total Epoxy fiberglass winding layer materials' one hundred percent | |
| 3 | curing agent | 15 | |||
| 4 | fiberglass yarn | 65 | |||
| C:Surface UV Paint | 5 | UV Polyurethane Paint | 100 | Total UV paint materials' one hundred percent | |

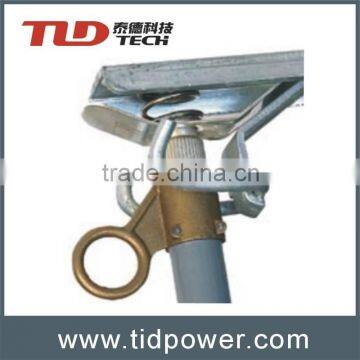

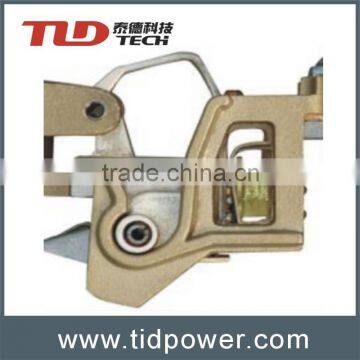

High strength silvered bronze and copper ear mortar trunnion Precision silvered bronze trunnion and two mortar design, high strength, with tight, flexible action to avoid melting tube sloshing around closing time.

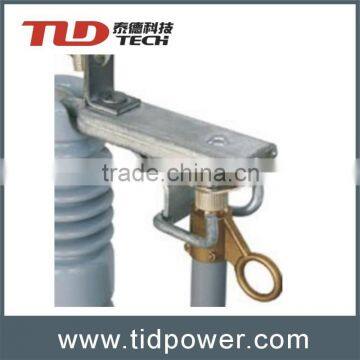

Galvanized anti-ice cover
Anti-ice cover is designed to prevent rainwater flowing stainless steel spring and
the contacts, thereby preventing the upper fuse due to ice and can not action.
Mode of transport
