Home > Electrical & Electronics > Breaker & Protector > Fuse Block & Holder > Fuse Cut Out 200a

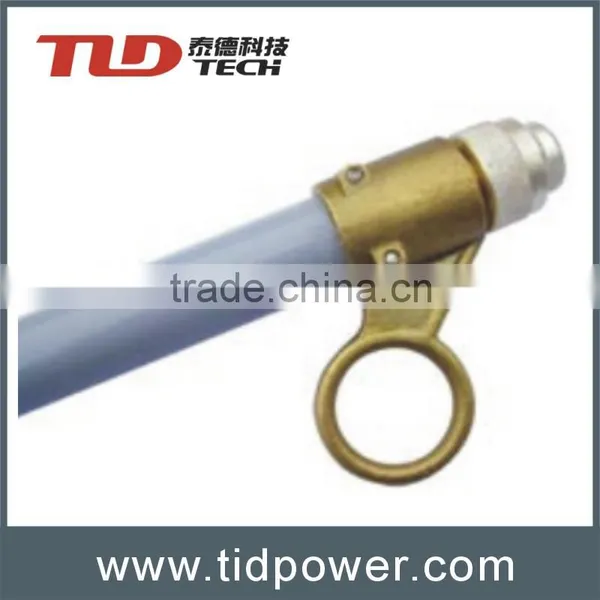

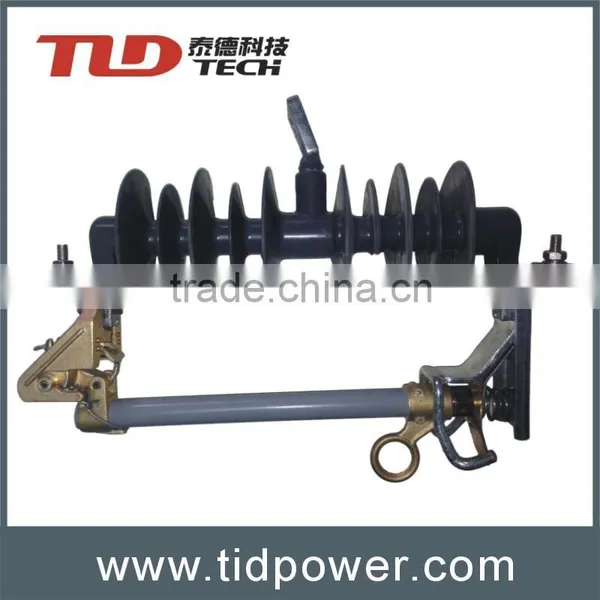

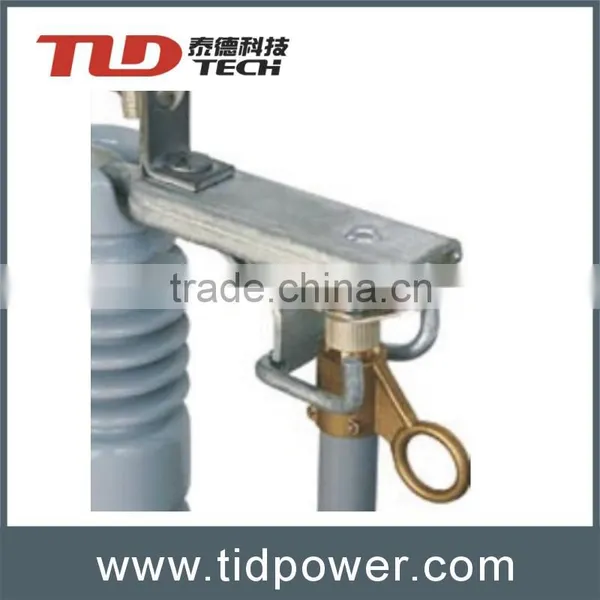

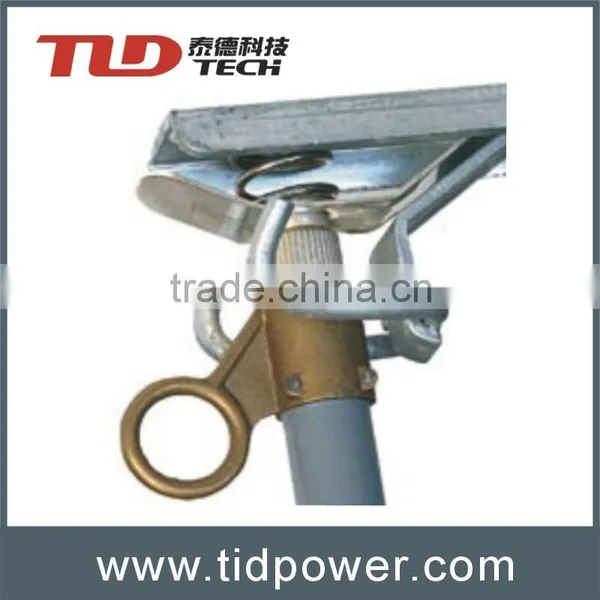

Fuse Cut Out 200a

Name: Fuse Cut Out 200a
Brand: TID-Tech
SKU: 119888149
Availability: InStock

US$ 28 - 30 MOQ: 1000 Sets

Key Specifications

Get Latest Price

Place of Origin:

Shaanxi, China

Brand Name:

TID-Tech

Model Number:

24KV Cut Out Fuse

Contact Supplier Request Quote Chat Now

Weinan TID Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Tianjing/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shaanxi, China

Brand Name TID-Tech

Model Number 24KV Cut Out Fuse

Type Fuse Cutout

1.Technical Charactor:

Item	Property		Unit	Requirement
1	Manufacture			TID Tech
2	Standard		-	IEC 62217 IEC 60255 IEC60282
3	Nominal system voltage		KVrms	20
4	Max. system voltage		KVrms	24
5	Rated frequency		Hz	50
6	Number of phase		-	3
7	Min. ambient temp		°C	-25
8	Max. ambient temp		°C	50
9	Altitude		m	1000-2500
10	Humidity			90%
11	Pollution level		-	Heavy
12	Max permissible wind velocity		m/s	45
13	Mean wind velocity in ice conditions		m/s	25
14	Max permissible ice thickness		mm	30
15	Erathquake acceleration			0.3-0.5
16	UV intensity			heavy
17	class (outdoor / indoor)			outdoor
18	Rated current		A	100
19	Rated beaking current		KA	12
20	Mechanical withstand		Operation	300
21	Electrical withstand		Operation	20
22	X / R			12
23	Wet Power frequency withstand voltage		KVrms	56
24	Dry Power frequency withstand voltage		KVrms	68
25	Impulse voltage between phase & earth		KV	140
26	Impulse voltage between two ends		KV	162
27	Insulator property	Type		Composite
		Min. Creepage distance	mm	700
		total height	mm	385

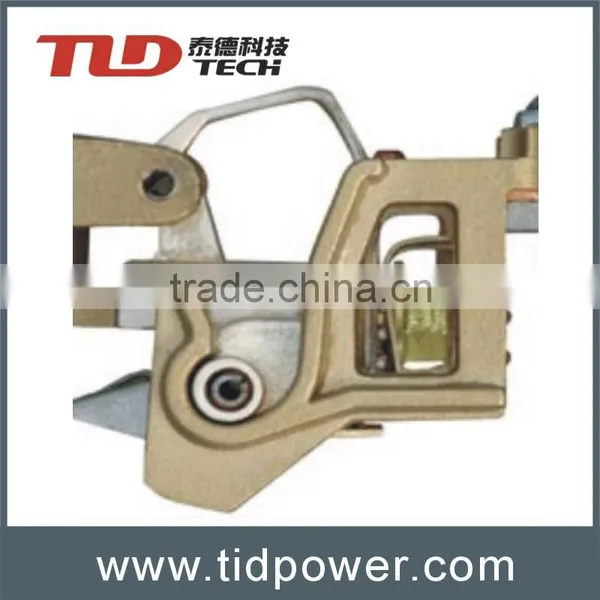

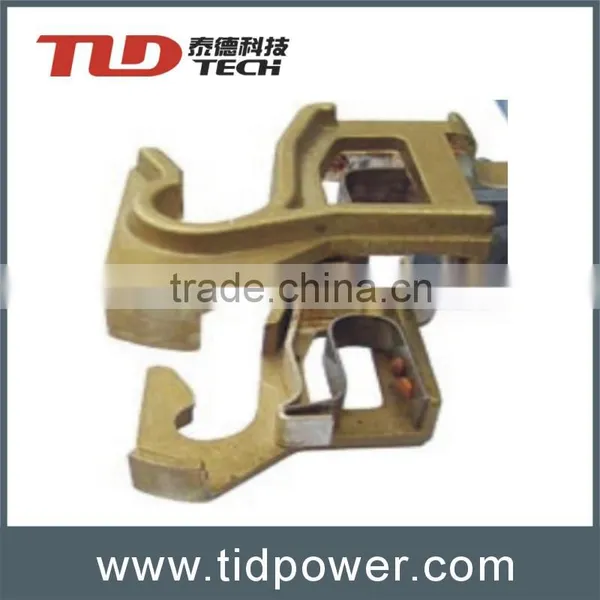

28	Material of contacts			copper alloy with silver coating
29	Material of fuse tube			epoxy resin with fiber glass
30	Material of conductor parts			pure copper
31	Material of non-conductor parts			Hot galvanised steel >70 µm
32	Diameter of pull ring		mm	28
33	Material of spring			stainless-steel backup spring for sustained cantact pressure
34	conductor conector			parallel- groove connector
35	Accessories of installation			mandatory
36	inner diameter of fuse tube		mm	13
37	Thickness of coating of steel		µ	80-120
38	Test certificate			type-routine
39	Dimensions		mm	490X350X145
40	Dimensions of pakage		mm	520X380X175
41	Weight		kg	4.7

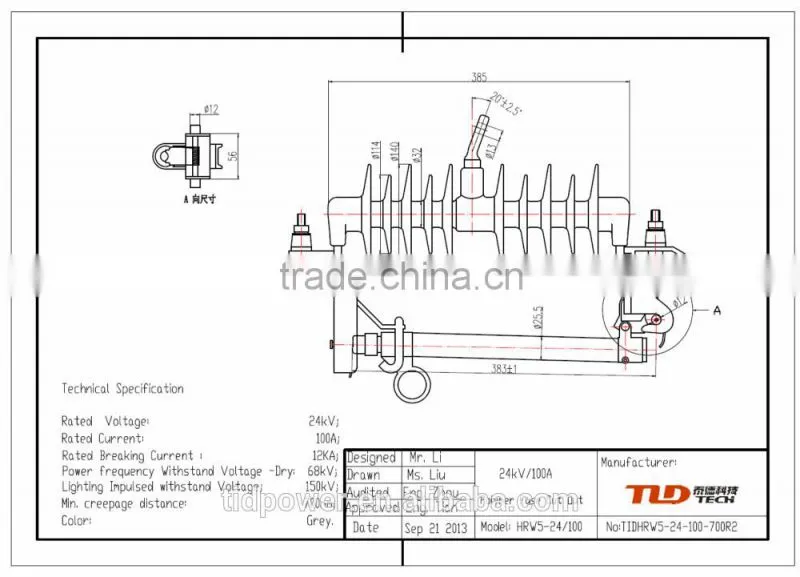

2.Drawing:

Packaging & Shipping

1. Economic Packing desgin which will save your transportation cost.

2. Suitable packing material ( Non fumigaion ) and beautiful package workmanship which will well protect the goods and avoid any trouble when you pick up the goods from the local customs.
