Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Mica Tape Fire-Resistant, PVC Insulated and Sheathed, Copper-Tape Screened Control Cable

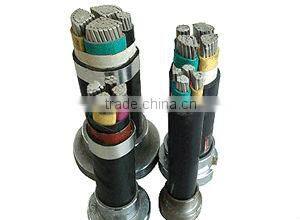

Mica Tape Fire-Resistant, PVC Insulated and Sheathed, Copper-Tape Screened Control Cable

Negotiable MOQ: 1000 Meters (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

NBF

Model Number:

KVV, KVVP,KVVR,ZR-KVV,ZR-KVVR,ZR-KVVP

Contact Supplier Request Quote Chat Now

Hebei New Baofeng Wire & Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name NBF

Model Number KVV, KVVP,KVVR,ZR-KVV,ZR-KVVR,ZR-KVVP

Application Other, Power Station,recording studio, the electronic wires,

Conductor Material Copper

Jacket PVC

Insulation Material PVC

Specifications

lor-coded PVC jacket single core.
2.Through ULVW - 1 vertical retardant test.
3. much quantity to short times supply

Mica Tape Fire-Resistant, PVC Insulated and Sheathed, Copper-Tape Screened Control Cable

Standard: GB9330-88
1. The Control Cable products can be produced according to the standard GB/T9330-2008, and Control Cables are suitable for the connection of controlling electrical equipment and instrument meters, monitoring and controlling return circuit, protecting and measuring in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.
2. Type of Control Cable: KVV Control Cable, KVVP, KVVP2, KVV22, KVV32, KVVR, KVVRP, KYJVP, Control Cable.
3. Service Conditions
(1)The long-time working temperature of conductor of PVC insulated cable is 70oC
(2)The temperature for laying the cables can't be lower than 0oC. Permissible bending radius(3): Unarmoured cable: R≥ 6D; (D: Outer diameter of the cable); Armoured or copper-tape screened cable: R≥ 12D; Shielded flexible cable: R≥ 6D

TYPE	NAME	Section Area(mm 2 )
		0.75	1	1.5	2.5	4	6	10
		No. of Core							Application Site
KVV	Copper Conductor, PVC Insulated and Sheathed Control Cable	2-48				2-14		2-10	Permanent installation indoors, in cable ditches or pipes
ZR-KVV	Flame Retardant Copper Conductor, PVC Insulated and Sheathed Control Cable
NH-KVV	Copper Conductor, Mica tape Fire-Resistant, PVC Insulated and Sheathed Control Cable
KVVP	Copper Conductor, PVC Insulated and Sheathed, Braiding Shielded Control Cable	2-48				2-14		2-10	Permanent installation indoors, in cable ditches or pipes where shielding is required
ZR-KVVP	Flame Retardant Copper Conductor, PVC Insulated and Sheathed, Braiding Shielded Control Cable
NH-KVVP	Copper Conductor, Mica tape Fire-Resistant, PVC Insulated and Sheathed, Braiding Shielded Control Cable
KVVP2	Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Control Cable	4-48				4-14		4-10	Permanent installation indoors, in cable ditches or pipes where shielding is required
ZR-KVVP2	Flame Retardant Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Control Cable
NH-KVVP2	Copper Conductor, Mica tape Fire-Resistant, PVC Insulated and Sheathed, Copper-tape Screened Control Cable
KVV22	Copper Conductor, PVC Insulated and Sheathed, Steel tape Armored Control Cable	7-48		4-48		4-14		4-10	Permanent installation indoors, in cable ditches, directly buried, Be able to withstand stronger external mechanical force
ZR-KVV22	Flame Retardant Copper Conductor, PVC Insulated and Sheathed, Steel tape Armored Control Cable
NH-KVV22	Copper Conductor, Mica tape Fire-Resistant, PVC Insulated and Sheathed, Steel tape Armored Control Cable
KVV32	Copper Conductor, PVC Insulated and Sheathed, Thin steel wire Armored Control Cable	19-61		7-48		4-14		4-10	Permanent installation indoors, in cable ditches, vertical shaft Be able to withstand stronger external mechanical force
ZR-KVV32	Flame Retardant Copper Conductor, PVC Insulated and Sheathed, Thin steel wire Armored Control Cable
NH-KVV32	Copper Conductor, Mica tape Fire-Resistant, PVC Insulated and Sheathed, Thin steel wire Armored Control Cable
KVVR	Copper Conductor, PVC Insulated and Sheathed, Flexible Control Cable	4-48				-		-	Installation indoors where flexibility and movability are required
ZR-KVVR	Flame Retardant Copper Conductor, PVC Insulated and Sheathed, Flexible Control Cable
NH-KVVR	Copper Conductor, Mica tape Fire-Resistant, PVC Insulated and Sheathed, Flexible Control Cable
KVVRP	Copper Conductor, PVC Insulated and Sheathed, Braiding shielded Flexible Control Cable	4-16		4-48		-		-	Installation indoors where flexibility shielding and movability are required
ZR-KVVRP	Flame Retardant Copper Conductor, PVC Insulated and Sheathed, Braiding shielded Flexible Control Cable
NH-KVVRP	Copper Conductor, Mica tape Fire-Resistant, PVC Insulated and Sheathed, Braiding shielded Flexible Control Cable
