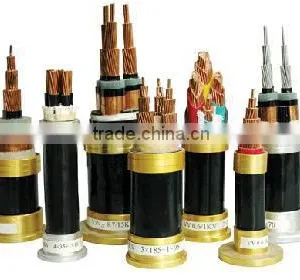

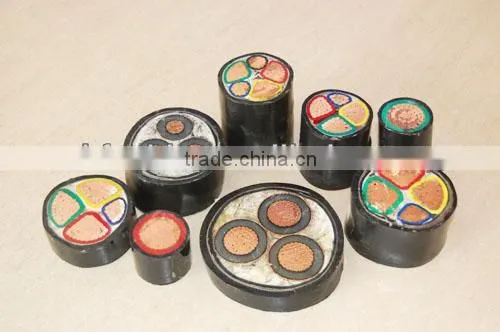

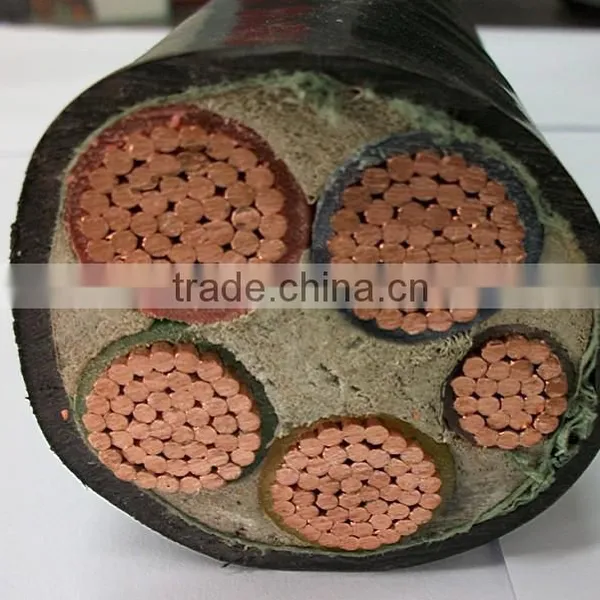

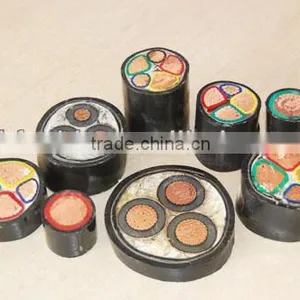

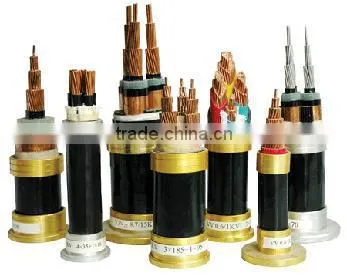

HV power cable,66kv, 110kv,132kv, 220kv copper core with insulation PVC sheath
- 3000 Meter / Meters per Month
- Tianjin/Qingdao
- T/T
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Place of Origin: | Hebei, China | Brand Name: | NBF | Model Number: | Overhead cable |
Insulation Material: | XLPE | Type: | High Voltage | Application: | Other, Industrial,Construction Power Station,Industrial ,Underground |
Conductor Material: | Other, copper or aluminium | Jacket: | PVC |
Product Description
Specifications
1 IEC, ASTM, DIN, BS standard2 ISO,CCC certification
3 Response within 12 hours
4 Free Sample
5 On time delivery
HV power cable,66kv, 110kv,132kv, 220kv copper core with insulation PVC sheath
1. EXECUTIVE STANDARD OF THE CABLE:
VOLTAGE CLASS (KV) | EXECUTIVE STANDARD |
66KV | IEC60840 |
110KV | IEC60840 GB/T11017-2002 |
220KV | IEC62067 GB/Z18890-2002 |
2. Model & specification
YJLW02 XLPE insulation corrugated aluminum sheath PVC outer sheath copper core power cable.
YJLW03 XLPE insulation corrugated aluminum sheath PE outer sheath copper core power cable.
YJLW02-Z XLPE insulation corrugated aluminum sheath PVC outer sheath longitudinal water-proof copper core power cable
YJLW03-Z XLPE insulation corrugated aluminum sheathPE outer sheath longitudinal water-proof copper core power cable.
3. Working Condition:
Max.operating temperature of the conductor:90°C.
In short circuit condition (Max. continual period shall not exceed 5s), Max. temperature of the conductor shall not exceed 250 °C
Laying surrounding temperature 0 °C
The Max. available lateral pressure is 5 kN/m
The Max.drawing strength of conductor: copper conductor 70N/mm2, aluminum conductor: 40N/mm2
Permitted bend radius of the cable: shall not less than 20 times of outer diameter of the cable.
4. Formation and dimension
Norminal cross sectional area | conductor diameter | inner shield thickness | insulation thickness | outside shield thickness | water resistence layer thickness | al sheath thickness | outer sheath thickness | approx diameter | approx weight | |
PVC sheath | PE Sheath | |||||||||
240 | 18.4 | 1.2 | 19.0 | 1.0 | 2.0 | 2.0 | 4.0 | 89.3 | 7750 | 7260 |
300 | 2.6 | 1.2 | 18.5 | 1.0 | 2.0 | 2.0 | 4.0 | 90.5 | 8380 | 7880 |
400 | 23.5 | 1.2 | 17.5 | 1.0 | 2.0 | 2.0 | 4.0 | 91.4 | 9230 | 8720 |
500 | 26.6 | 1.2 | 17.0 | 1.0 | 2.0 | 2.0 | 4.0 | 93.5 | 10330 | 9810 |
630 | 29.9 | 1.2 | 16.5 | 1.0 | 2.0 | 2.0 | 4.5 | 96.8 | 11890 | 11290 |
800 | 34.0 | 2.5 | 16.0 | 1.0 | 2.0 | 2.0 | 4.5 | 99.9 | 13660 | 13040 |
800 | 35.2 | 2.5 | 16.0 | 1.0 | 2.0 | 2.0 | 4.5 | 103.7 | 14470 | 13830 |
1000 | 39.0 | 2.5 | 16.0 | 1.0 | 2.0 | 2.3 | 4.5 | 108.1 | 16950 | 16280 |
1200 | 43.0 | 2.5 | 16.0 | 1.0 | 2.0 | 2.3 | 5.0 | 113.1 | 19360 | 18580 |
1400 | 45.0 | 2.5 | 16.0 | 1.0 | 2.0 | 2.3 | 5.0 | 116.2 | 21320 | 20520 |
1600 | 49.2 | 2.5 | 16.0 | 1.0 | 2.0 | 2.3 | 5.0 | 119.3 | 23550 | 22720 |
