240mm2 power cable/150mm2 Aluminum power cable /acsr power cable/baofeng acsr cable/AL CABLE

Name: 240mm2 power cable/150mm2 Aluminum power cable /acsr power cable/baofeng acsr cable/AL CABLE
Brand: baofeng
Price: USD $0.1 - 100 / Meter

FOB Price

USD $0.1 - $100 / Meter

500 Meters(Min.Order)

Supply Ability 10 Kilometer / Kilometers per Month
Port Tianjin China
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Hebei, China	Brand Name:	baofeng	Insulation Material:	Other
Type:	High Voltage	Application:	Overhead	Conductor Material:	Aluminum

Product Description

Specifications

Trademark:Xin Baofeng
Packing:Steel & Wooden Drum
Standard:16~800, 10/2~800/100, 4~63, 4~200
Origin:China Hebei

Product Description

150mm2 Aluminum power cable 150mm2

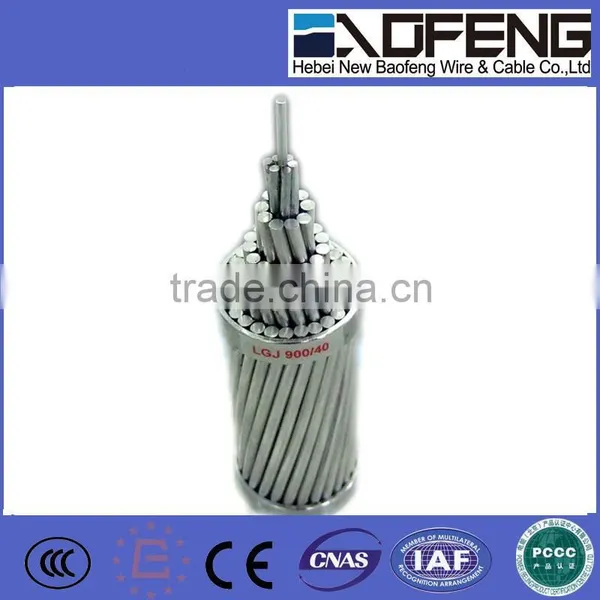

(ACSR)Aluminum Stranded Wire and Aluminum Conductor Steel-reinforced

1. Application: The Aluminum Stranded Wire and Aluminum Conductor Steel-reinforced apply for electric transmission line overhead.

2. Name: Aluminum stranded wire, Aluminum conductor steel-reinforced, Anticorrosive aluminum conductor steel-reinforced, Aluminum stranded wire, Aluminum alloy stranded wire, Aluminum conductor steel-reinforced, Anticorrosive aluminum conductor steel-reinforced, Aluminum alloy conductor steel-reinforced, Aluminum alloy conductor steel-reinforced, Aluminum conductor aluminum alloy reinforced, Aluminum conductor aluminum coated steel-reinforced, Aluminum alloy conductor aluminum coated steel-reinforced, Steel stranded wire, Aluminum coated steel stranded wire.

Aluminum Stranded Wire
Nominal cross-sectional area mm 2	Construction No. /Diameter	Calculated cross-section	Overall diameter	D. C. resistance of conductorNot more than	Calculated tensile force	Appro. Weight	Delivery length
Nominal cross-sectional area mm 2	mm	mm 2	mm	Ω /km	N	kg/km	m
16	7/1.70	15.89	5.1	1.802	2840	43	4000
25	7/2.15	25.41	6.4	1.127	4355	69	3000
35	7/2.50	34.36	7.5	0.8332	5760	94	2000
50	7/3.00	49.48	9	0.5786	7930	135	1500
70	7/3.60	71.25	10.8	0.4018	10950	195	1250
95	7/4.16	95.14	12.4	0.3009	14450	260	1000
120	19/2.85	121.21	14.2	0.2373	19420	333	1500
150	19/3.15	148.07	15.7	0.1943	23310	407	1250
185	19/3.50	182.8	17.5	0.1574	28440	503	1000
210	19/3.75	209.85	18.7	0.1371	32260	577	1000
240	19/4.00	238.76	20	0.1205	36260	656	1000
300	37/3.20	297.57	22.4	0.09689	46850	820	1000
400	37/3.70	397.83	25.9	0.07247	61150	1097	1000
500	37/4.16	502.9	29.1	0.05733	76370	1387	1000
630	61/3.63	631.3	32.6	0.04577	91940	1744	800
800	61/4.10	805.36	36.9	0.03588	115900	2225	800

Packaging & Shipping

Contact Us

Hebei New Baofeng Wire & Cable Co., Ltd.: Contact nameJane Yin; Phone86-531-68656606; AddressJinghe Industrial Zone, Hejian City Cangzhou,Hebei
