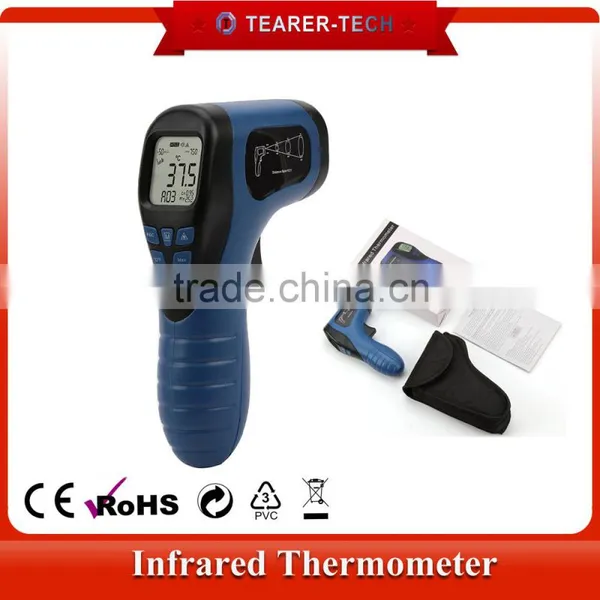

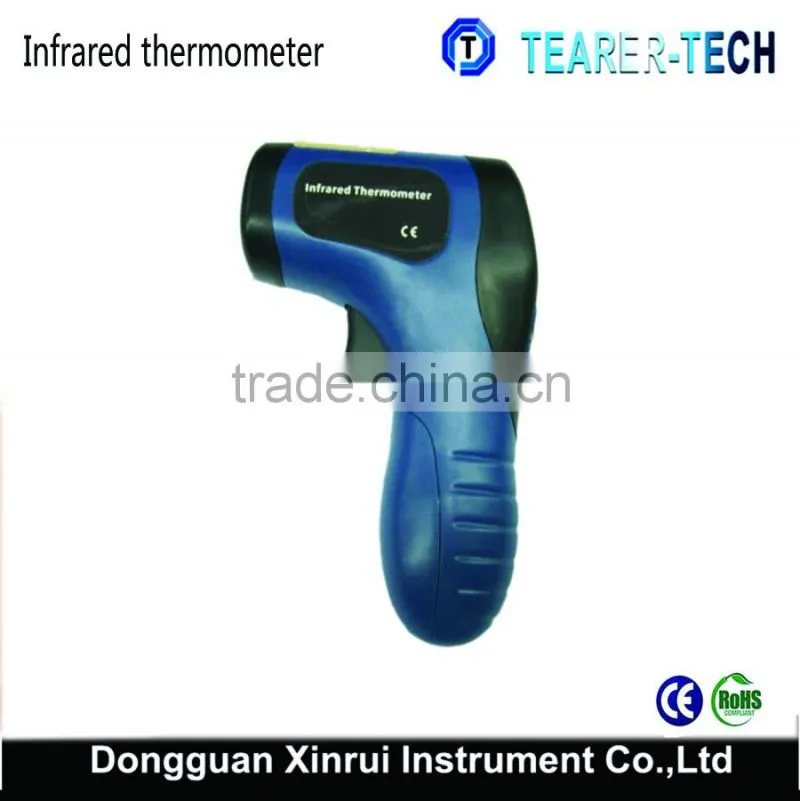

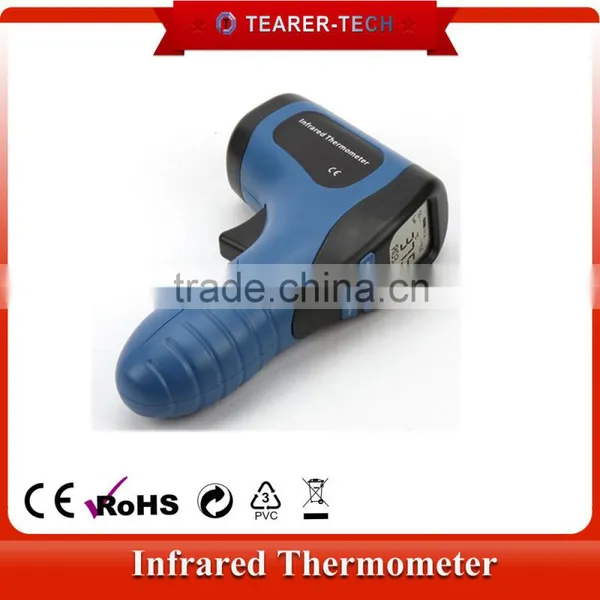

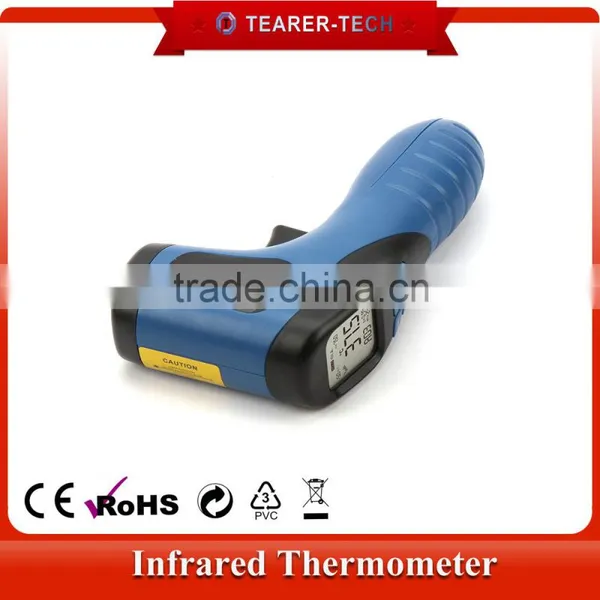

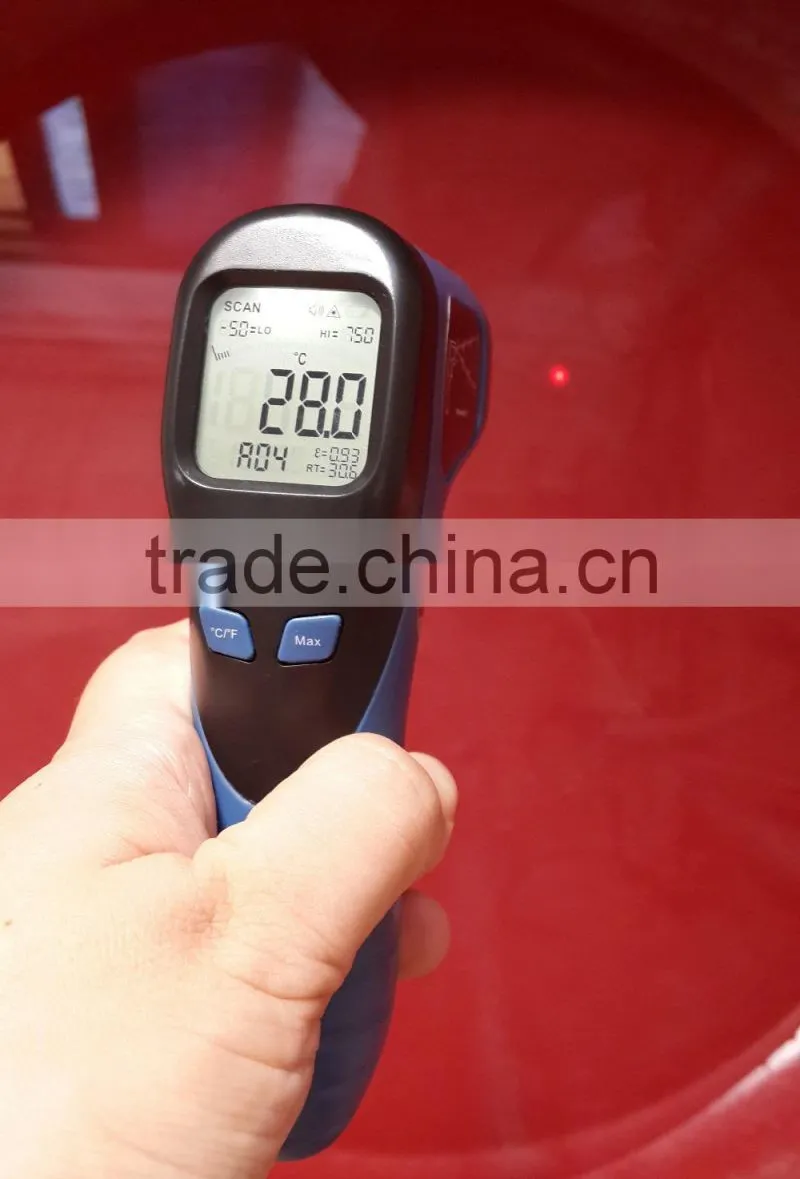

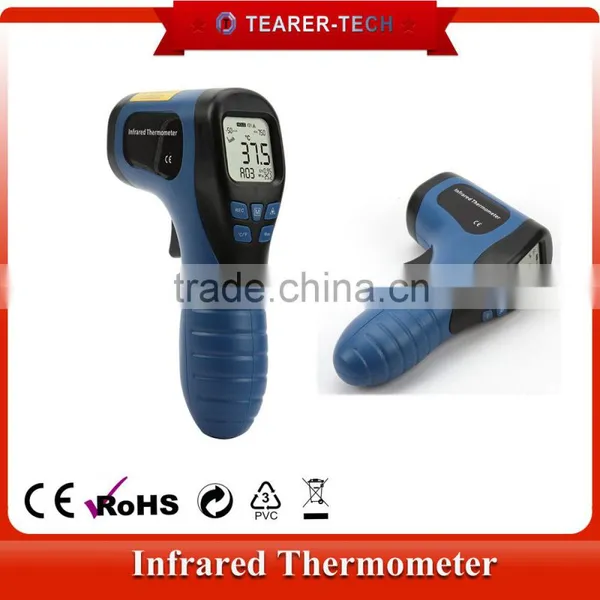

30+data logging Industrial Usage -50~750C infrared temperature thermometer IR tester with Emissivity adjustable function
Advantage:
A: Room temperature measurement function
B:Data logging (30+) and Data Hold function
C:Emissivity adjustable
D:Bar graph display.

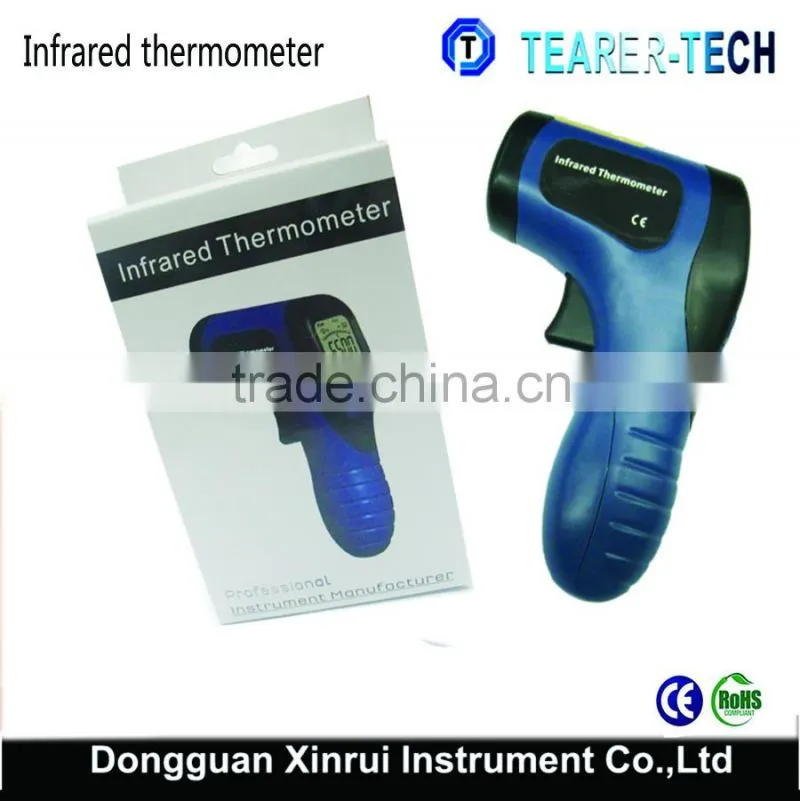

D:Package: colorbox with black bag
This infrared thermometer is used for measuring the temperature of the object's surface, which is applicable for various hot, hazardous or hard-toreach objects without contact safely and quickly.
This unit consist of Optics, Temperature Sensor Signal amplifier,Processing circuit and LCD Display. The Optics collected the infrared energy emitted by object and focus onto the Sensor. Then the sensor
translates the energy into an electricity signal.
This signal will be turned out to be digital shown on the LCD after the signal amplifier and processing circuit.
Features:
1 Large Measurement Range
2 Laser On/Off Switch Function

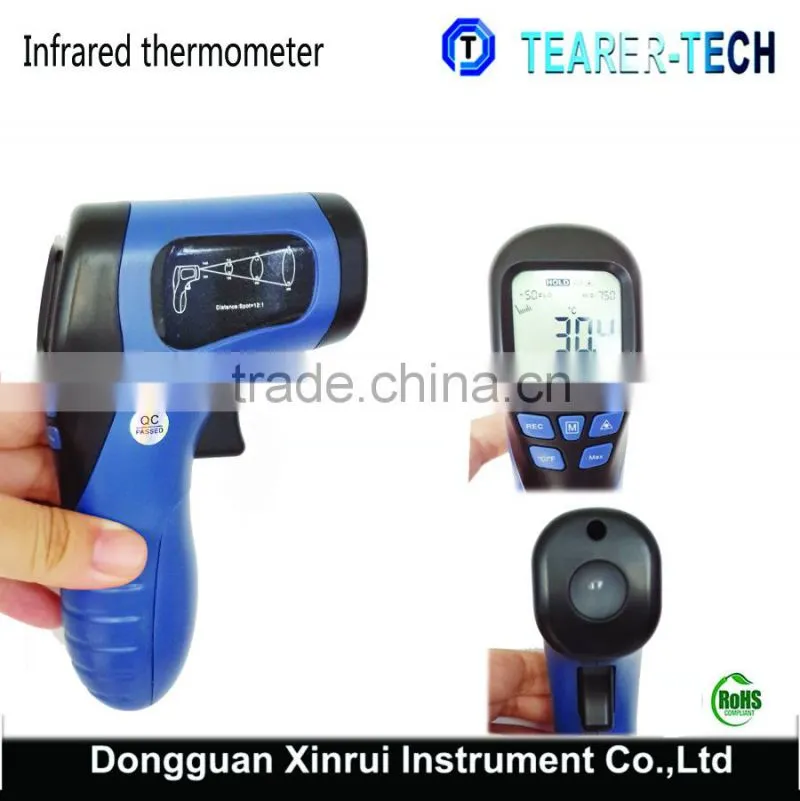

3 LCD with White Backlight and Bar Graph Display
4 Celsius and Fahrenheit Switchable
5 High/Low Temperature Alarm Setting
6 Auto Power Off
7 Data Recording (30 Max) and Data Hold Function
8 Emissivity Adjustable
9 Room Temperature Measurement
10 MAX/MIN/AVG/DIF Reading Function
11 Low Battery Indicator
12 Stylish Mini Handheld Gun Design
Specifications:
Temperature Range: -50 to 750oC
Accuracy: ±1.5% or ±1.5oC
Resolution: 0.1oC or 0.1F
Repeatability: 1% of reading or 1oC
Response Time: 500mSec, 95% Response
Spectral Response: 8-14 um
Emissivity: 0.95 Preset (Adjustable)

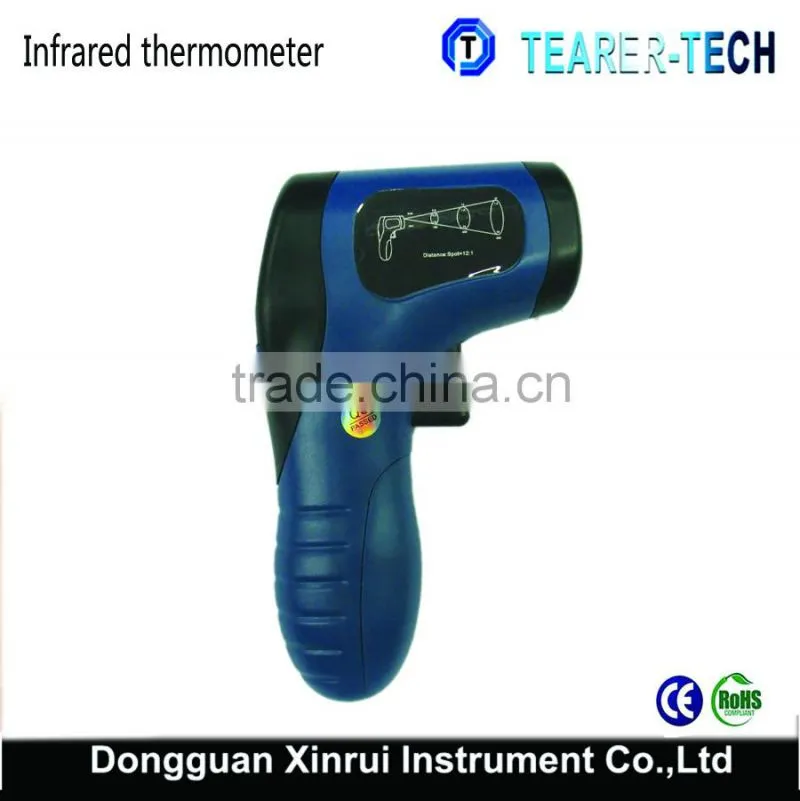

Distance to Spot Size: 12:1
Operation Temperature: 0 to 50oC (32 to 122oF)
Operation Humidity: 10 to 90%RH
Storage Temperature: -10 to 60oC (14 to 140oF)
Storage Humidity: 10 to 75%RH
Size: 145*90*35mm

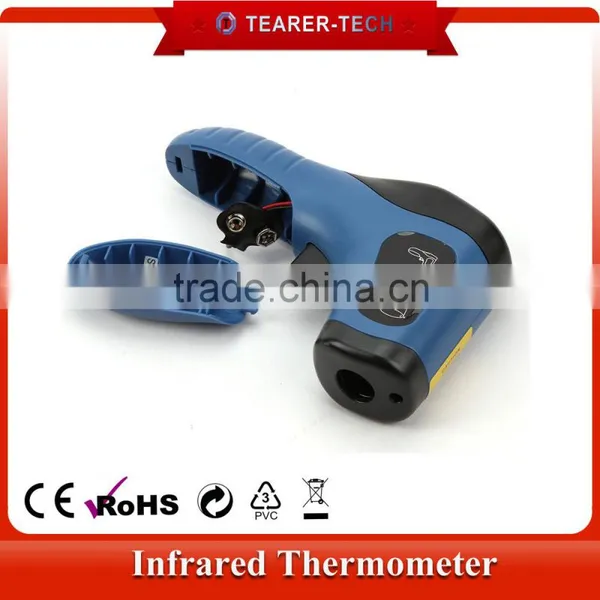

Weight: 120g (including average 9V battery)
Emissivity Values
Substance |
Thermal emissivity |
Substance |
Thermal emissivity |
Asphalt |
0.90 to 0.98 |
Cloth (black) |
0.98 |
Concrete |
0.94 |
Human skin |
0.98 |
Cement |
0.96 |
Lather |
0.75 to 0.80 |
Sand |
0.90 |
Charcoal (powder) |
0.96 |
Earth |
0.92 to 0.96 |
Lacquer |
0.80 to 0.95 |
Water |
0.92 to 0.96 |
Lacquer (matt) |
0.97 |
Ice |
0.96 to 0.98 |
Rubber (black) |
0.94 |
Snow |
0.83 |
Plastic |
0.85 to 0.95 |
Glass |
0.90 to 0.95 |
Timber |
0.90 |
Ceramic |
0.90 to 0.94 |
Paper |
0.70 to 0.94 |
Marble |
0.94 |
Chromium oxides |
0.81 |
Plaster |
0.80 to 0.90 |
Copper oxides |
0.78 |
Mortar |
0.89 to 0.91 |
Iron oxides |
0.78 to 0.82 |
Brick |
0.93 to 0.96 |
Textiles |
0.90 |
