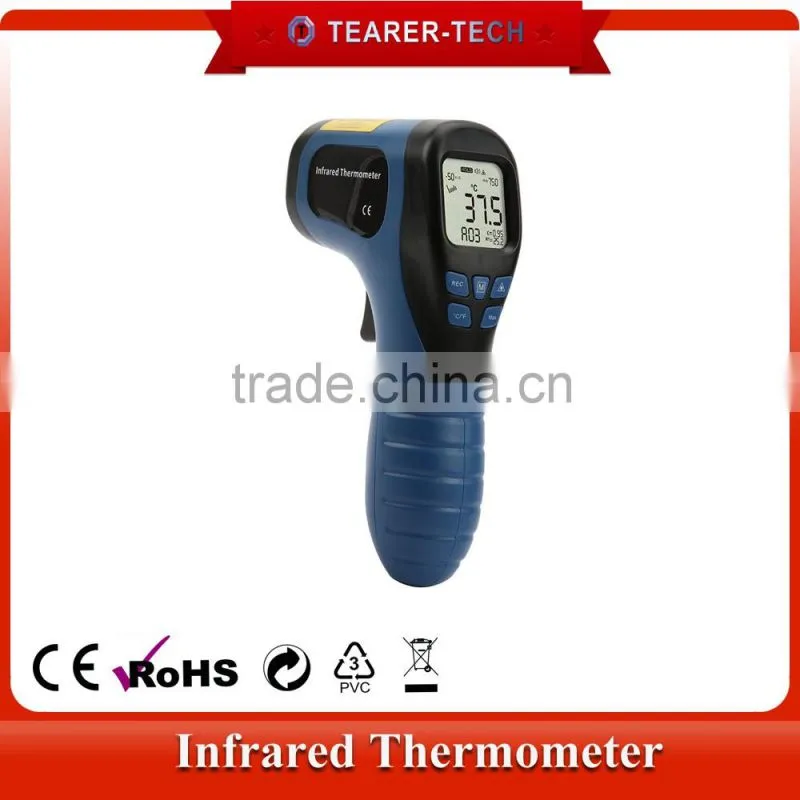

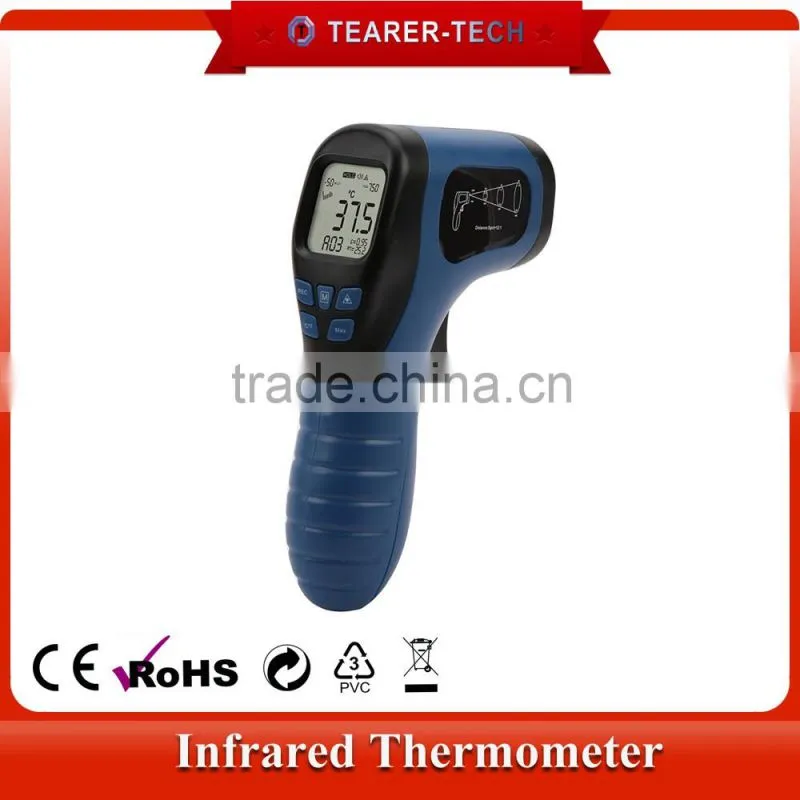

-50~750C/-58~1382F Non-Contact LCD IR Thermometer Laser Infrared Digital Temperature Gun New TL-IR750

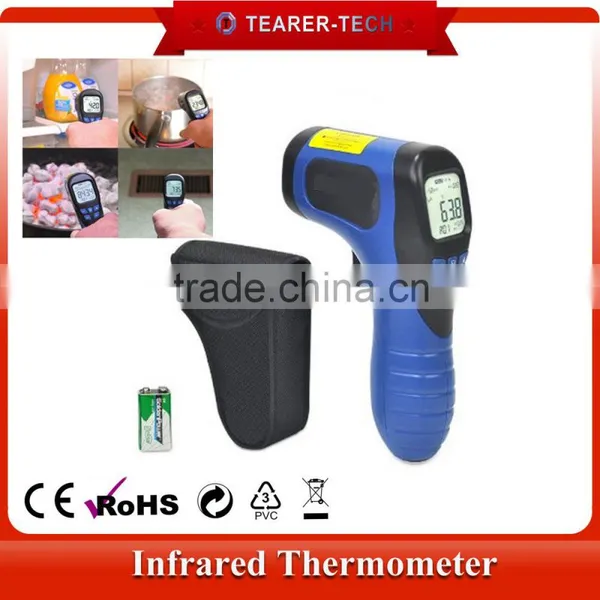

Water temperature in the bath; Checking heater or oven temperature, for calibration and control purposes; Hot engine parts; Cooking Surfaces; Hot tubes & Insulation; Electrical Connection; Ballasts in Electrics lights; Electric Motors & Bearings; Wine coolers & Hot asphalt; Fuse Panels & Transformers; Swimming pools & Fish tanks; Hot & Cold food products; Heating & Air conditioning.
Advantage:
A: Room temperature measurement function
B:Data logging (30+) and Data Hold function
C:Emissivity adjustable
D:Bar graph display.
D:Package: colorbox with black bag
This infrared thermometer is used for measuring the temperature of the object's surface, which is applicable for various hot, hazardous or hard-toreach objects without contact safely and quickly.
This unit consist of Optics, Temperature Sensor Signal amplifier,Processing circuit and LCD Display. The Optics collected the infrared energy emitted by object and focus onto the Sensor. Then the sensor
translates the energy into an electricity signal.
This signal will be turned out to be digital shown on the LCD after the signal amplifier and processing circuit.
Features:
1 Large Measurement Range
2 Laser On/Off Switch Function
3 LCD with White Backlight and Bar Graph Display
4 Celsius and Fahrenheit Switchable
5 High/Low Temperature Alarm Setting
6 Auto Power Off
7 Data Recording (30 Max) and Data Hold Function
8 Emissivity Adjustable
9 Room Temperature Measurement
10 MAX/MIN/AVG/DIF Reading Function
11 Low Battery Indicator
12 Stylish Mini Handheld Gun Design
Specifications:
Temperature Range: -50 to 750oC
Accuracy: ±1.5% or ±1.5oC
Resolution: 0.1oC or 0.1F
Repeatability: 1% of reading or 1oC
Response Time: 500mSec, 95% Response
Spectral Response: 8-14 um
Emissivity: 0.95 Preset (Adjustable)
Distance to Spot Size: 12:1
Operation Temperature: 0 to 50oC (32 to 122oF)
Operation Humidity: 10 to 90%RH
Storage Temperature: -10 to 60oC (14 to 140oF)
Storage Humidity: 10 to 75%RH
Size: 145*90*35mm
Weight: 120g (including average 9V battery)
Product description:
1.Laser output
2.Measuring button
3.LCD display
4.Product label
5.Rec button
6.Mode button
7.Laser/Backlight button
8.Max/Min/Avg/Dif button(↑)
9.oC/oF button(↓)
10.Battery cover
LCD display
1.Measuring indicator
2.HOLD symbol
3.Buzzer alarm symbol
4.Laser switch indicator
5.Low battery indicator
6.Low temperature limit alarm
7.High temperature limit alarm
8.Bargraph
9.Temperature units:oC,oF
10.Digtal readout
11.MaxMin/Avg/Dif reading mode incicator
12.Data recording display(Max 30 datas)
13.Emissivity(adjustable)
14.Room temperature measurement reading
Field of View
This infrared thermometer’s field of view is 12:1, meaning that if the meter is 12 inches from the target, the diameter of the object under test must be at least 1 inch. Other distances are shown below in the field of view diagram.
9.Emissivity adjustable
Under Scan mode:press oC/oF button(↓) and Max/Min/Avg button(↑) to adjust the emissivity
Most (90% of typical applications) organic materials and painted or oxidized surfaces have an emissivity of 0.95 (pre-set in the unit). Inaccurate readings will result from measuring shiny or polished metal surfaces. To compensate, cove the surface to be measured with masking tape or flat black paint. Allow time for the tape to reach the same temperature as the material underneath it. Measure the temperature of the tape or painted surface.
Emissivity Values
Substance |
Thermal emissivity |
Substance |
Thermal emissivity |
Asphalt |
0.90 to 0.98 |
Cloth (black) |
0.98 |
Concrete |
0.94 |
Human skin |
0.98 |
Cement |
0.96 |
Lather |
0.75 to 0.80 |
Sand |
0.90 |
Charcoal (powder) |
0.96 |
Earth |
0.92 to 0.96 |
Lacquer |
0.80 to 0.95 |
Water |
0.92 to 0.96 |
Lacquer (matt) |
0.97 |
Ice |
0.96 to 0.98 |
Rubber (black) |
0.94 |
Snow |
0.83 |
Plastic |
0.85 to 0.95 |
Glass |
0.90 to 0.95 |
Timber |
0.90 |
Ceramic |
0.90 to 0.94 |
Paper |
0.70 to 0.94 |
Marble |
0.94 |
Chromium oxides |
0.81 |
Plaster |
0.80 to 0.90 |
Copper oxides |
0.78 |
Mortar |
0.89 to 0.91 |
Iron oxides |
0.78 to 0.82 |
Brick |
0.93 to 0.96 |
Textiles |
0.90 |
Pictures:
1.Sample order/Mix order is available;
2.Sample charge is refundable !
3.If order quantity is big , we will provide you most competitive price !
4.OEM and ODM service is available.
5.Cheapest shipping cost could be provided!
