Generator Lighting Tower

Name: Generator Lighting Tower
Brand: UNIV generator lighting tower
SKU: 119860183
Availability: InStock

US$ 5,800 - 8,500 MOQ: 2 Sets

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

UNIV generator lighting tower

Model Number:

GDQ8B-6R

Zhejiang Universal Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO/SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name UNIV generator lighting tower

Model Number GDQ8B-6R

Output Type AC Three Phase

Speed 1500RPM/1800RPM

Frequency 50Hz/60Hz

Rated Power prime use 10kva/8kw

Rated Voltage 220/400V

Rated Current 14.4A

Genset Model			UL8E
SET	Rated power(Kw/kva)		8/10
	Frequency(Hz)		50
	Phase		3
	Voltage(V)		230/400
	Current(A)		14.4
	Fuel capacity(L)		56
	Fuel consumption(L/Hour)		2.5
	Dimension (mm)	L	1650
		W	780
		H	950
	Weight(kg)		560
	Noise level for silent type (Db/m)		65
ENGINE	Model		KM385BD
	Prime power(kw/kva)		10/12.5
	Cylinders		3
	Bore×stroke(mm)		85x90
	Intake Method		Natural intake
	Displacement(L)		1.532
	Speed governing		Mechanical governor
	Cooling starting method		Water cooling
ALTERNATOR	Model		UNIV
	Rated power(kw/kva)		8.8/11
	Insulation class		H
	Alternator enclosure		IP23
THIS SET COULD BE OPERATED ON 100% OF THE POWER CAPACITY AT ALTITUTE OF 1500M, AMBIENT TEMPERATUR OF 50°C. WE RESERVE THE RIGHT TO EXPLAIN THE TERMS OF THIS SPECIFICATION

DIMENSION
Overall Length including	4370
Drawbar- (mm)
Overall Width-(mm)	1575
Overall Height Travel	1790
Position-(mm)

Position-(mm)	1790
Track Width-(mm)	1245
Tower Height-(mm)	6
Tire Size	ST175/80D13
Shipping weight-(kg)	830
Working weight-(kg)	900
Max Axle Capacity-(kg)	1360

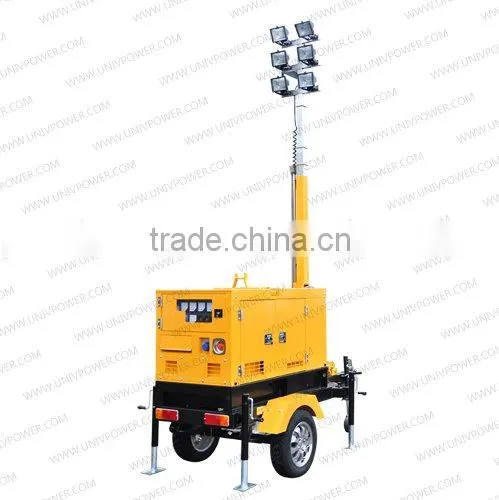

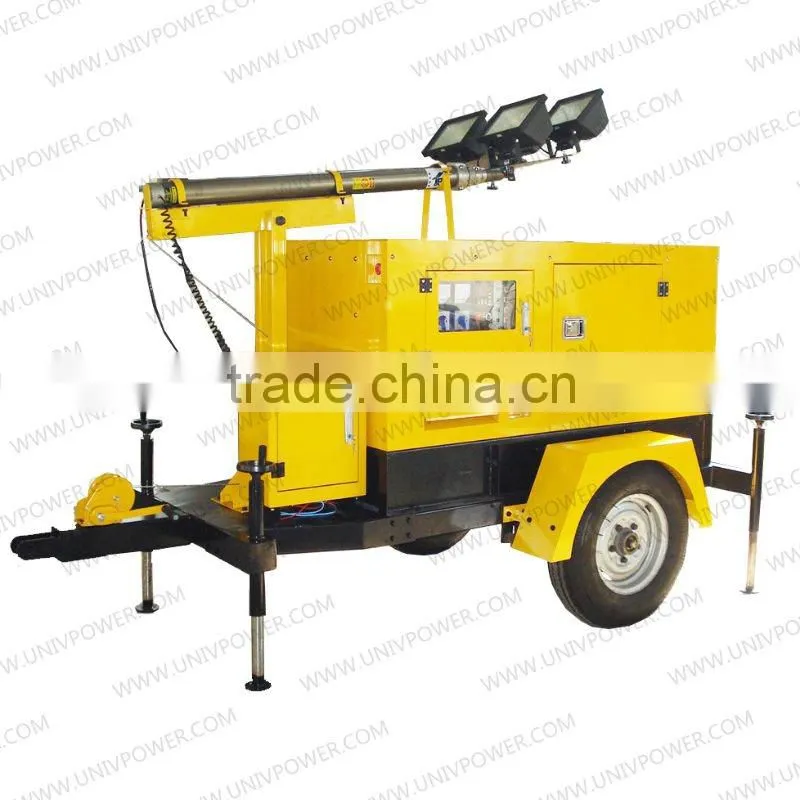

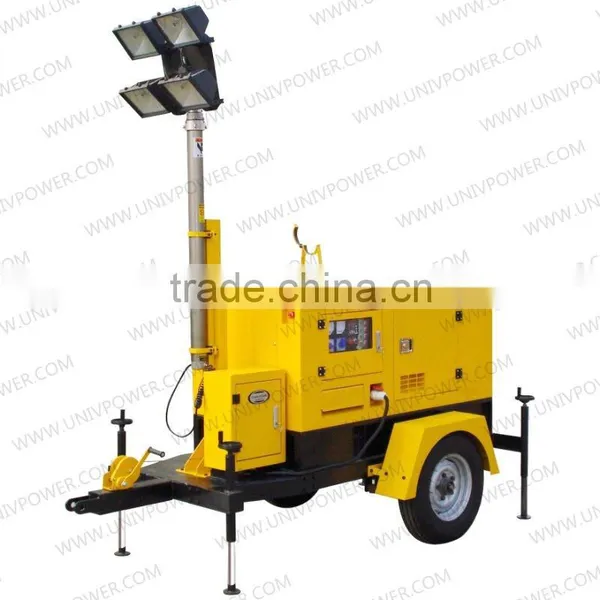

LIGHT TOWER HIGHLIGHTS
FLOODLIGHTS
- Four 1,000watt metel halide lamps designe for large area coverage
- Aluminum reflector housings and tempered impact-resistant glass lenses
- Weather-resistant,twist-lock connections for attaching floodlights
ENGINE
- Dependable Laidong power
- Automatic protective shutdowns for high engine coolant temperature and low engine oil pressure
TOWER
- Telescoping mast,with 360-degree rotation and position lock
- Extends 12' to 30' with dual,hand-operated winches and patented automatic safety brake
- Mast retracts and stows horizontally for travel
- Patented tower locking system to prevent telescoping during travel
- Able to stand up to 65-mph wind speed with outriggers extended and jacks down
- Combination hitch with 3" pintle eye and 2" ball hitch (lightsource)

Light range :
The lamp panel uses 4-grade high-strength aluminum alloy flexible cylinder, the max lifting limit is 18M, The flexible cylinder is controlled by the air pump, and the lighting angle could be adjusted by hand, lighting area covers 100-150M
The lighting control system is fixed on classics; the lifting lamp could be controlled by control system & remote control.
Windproof ability	8 degree
High quality metal material ensures its stable & steady performance in bad environment or weather condition
The lamp numbers, rated output, brightness & light coverage & the lifting height of the mast could also be required according to clients detail demand.
