Factory price industrial wood sawdust rotary drum dryer

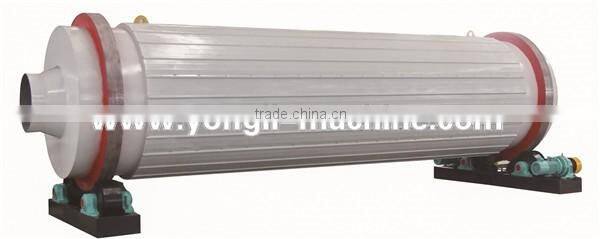

Single Layer Drum Dryer
Drum Dryer Machine Working Principle
1. After the dehydrated wet materials enter the drum dryer, fliped by the shovelling plate device which
are uniform distribution in the drum cylinder. The materials are evenly distributed in the drum cylinder,
fully contact with the hot air, speed up the drying heat and mass transfer.
2. During the drying process, under the effect shovelling plate and hot treatment, the materials after drying
are discharging from star type valve which in another section of the rotary dryer.
3. Drum dryer is suitable for drying various types of materials which the moisture content.
[Single Layer Drum Dryer Application]
It's widely used after grinding process in biomass pellet production line.
Available raw materials: fibrous,bulk or bulked powder biomass materials.
Such as:straw,the long fiber and 20-30 cm size of grass,granular,woodchips,flake, etc.
[Techincal Parameters]
| Model | YLHG1 | YLHG2 | YLHG3 | YLHG4 |
YLHG5 |
||
| Body | Inside diameter(mm) | 1700 | 2450 | 2650 | 2850 | 3700 |
|
| Length(mm) | 8000 | 8000 | 9100 | 9000 | 10000 |
||
| Rotary speed(r/min) | Can be adjusted by process |
||||||
| Capacity(t/h) | 1 | 2 | 3 | 4 | 5 |
||
| Inlet temperature( ℃ ) | <500 | <500 | <500 | <500 | <500 | ||
| Raw material | Sawdust | ||||||
| Moisture(%) | 45 | ||||||
| Outlet temperature( ℃ ) | 80 | 80 | 80 | 80 | 80 |
||
| Power(kw) | 2.2*2 | 3*2 | 4*2 | 4*4 | 5.5*4 | ||
[Attractive Features]
1. Support of roller ring and retainer wheel are integral cast steel structure, with high strength,
stable operation, anti-abrasion and long service time.
2. Convenient feeding, feeding from middle of dryer by screw conveyor or from the top based on
the different materials.
3. Sealed by flexible and anti-abrasion steel disc at the drum body and feeding &discharge end.
It's of long service time and with easy installation.
4. Lifting plates installed inside the drum makes the material fully mixed with the hot air,
with low residue and high drying efficiency.
5. Reasonable discharge structure that can separate hot air and material efficiently.
6. Thermal insulation set at outer layer of drum can effectively prevent the heat from losing
and improve the utilization efficiency.
7. After drying moisture: the best is 10%-13%.
8. It can be adjusted the drying speed according to the moisture request.
9.Simens motor

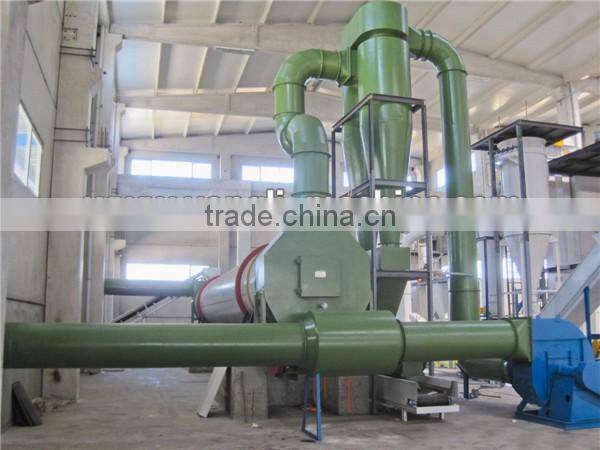

[ Single Layer Drum Dryer In Pellet Production Line]

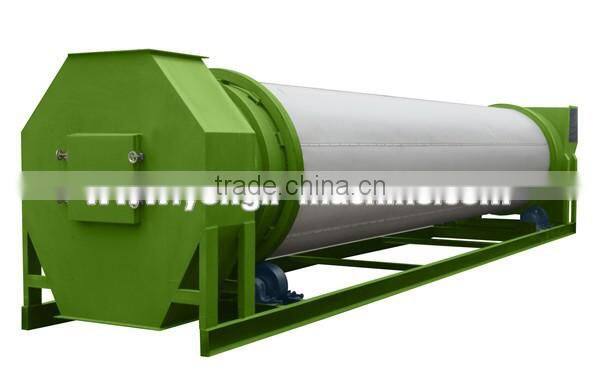

Sawdust Drum Dryer with three layers
Application
Sawdust dryer, also called sawdust drying machine or biomass drum dryer.
Mainly available with raw materials: sawdust or grinded wood powder.
Available other powder biomass materials: straw, rice husk, alfalfa, peanut shell, palm nut, coconut shell,
cotton seed, bamboo dust, elephant grass,sugar cane,pulp .etc.
[Basic Features]
1.Three-pass dryer, longer mixing duration of hot air and material. It is with high drying efficiency,
heat utilization ratio and less space needed.
2. Support of roller ring and retainer wheel are integral cast steel structure, with high strength,
stable operation, anti-abrasion and long service time.
3. Feeding device is separately designed, which is convenient for installation and transportation.
The drum of dryer can be designed to fit the transportation in the containers.
4. Convenient feeding: feeding from middle of dryer by screw conveyor or from the top
based on the different materials.
5. Sealed by flexible and anti-abrasion steel disc at the drum body and feeding &discharge end.
It's of long service time and with easy installation.
6. Lifting plates installed inside the drum makes the material fully mixed with the hot air,
with low residue and high drying efficiency.
7. Reasoable discharge structure that can separate hot air and material efficiently.
8. Thermal insulation set at outer layer of drum can effectviely prevent the heat from losing
and improve the utilization efficiency.
9. Three layers drum dryer's floor space is 30% less than single drum dryer with same capacity.
[Techincal Parameters]

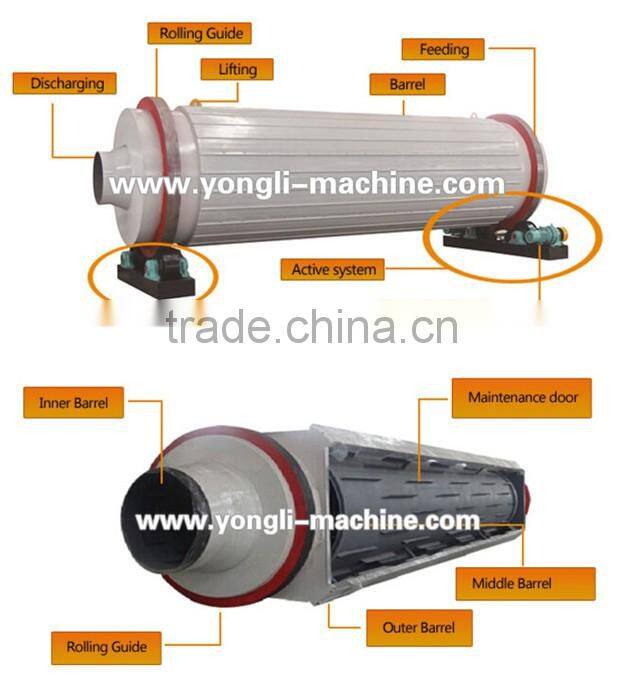

Main Structure

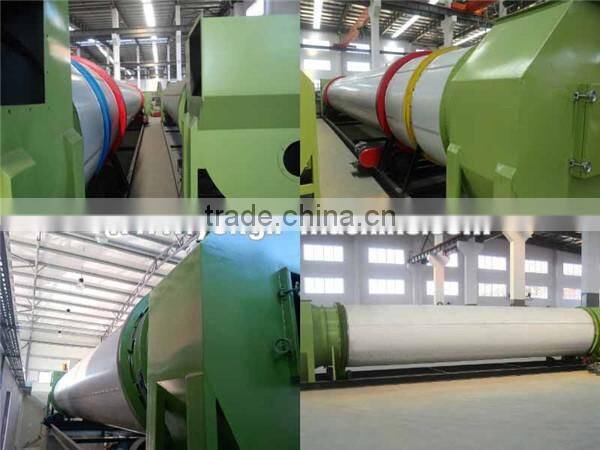

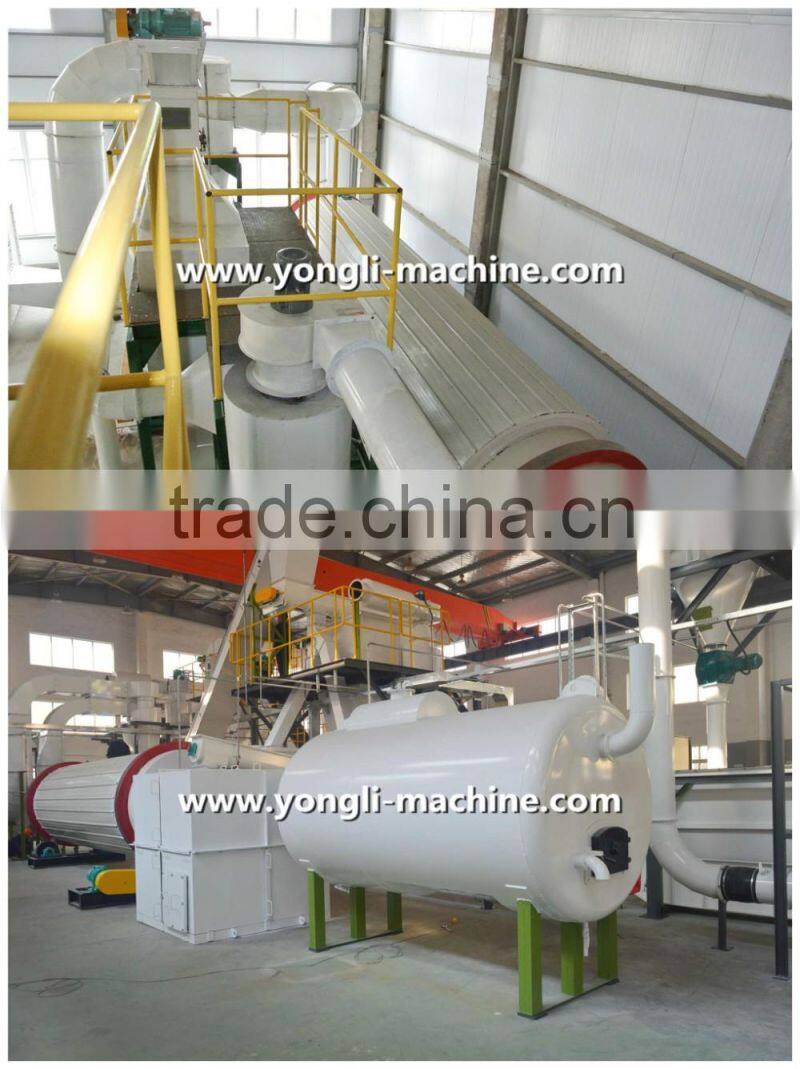

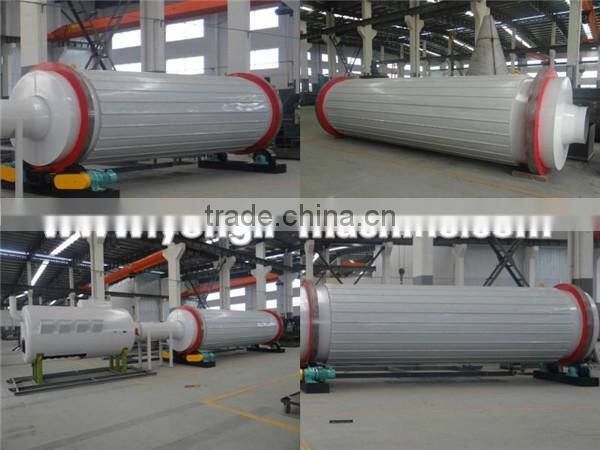

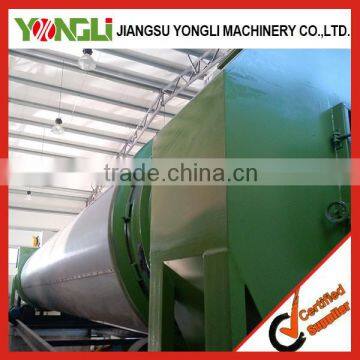

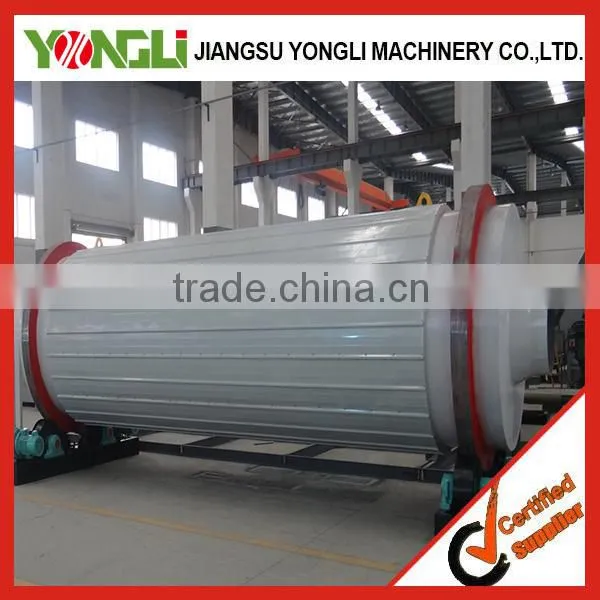

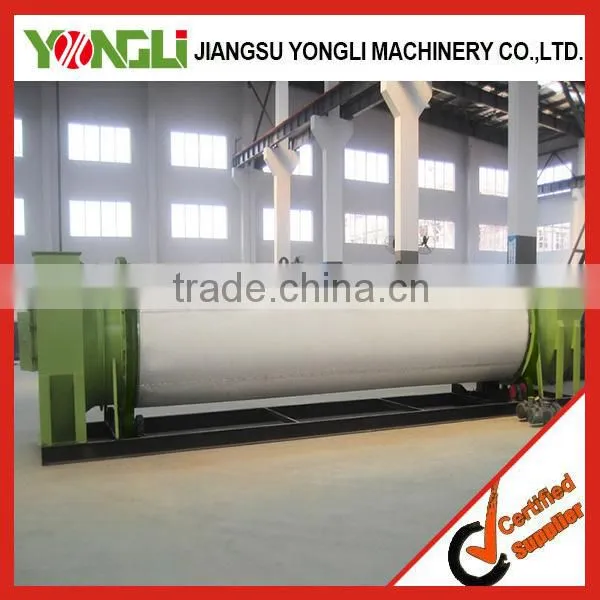

[Sawdust Drum Dryer Pictures Show]
[Biomass Drum Dryer Machine In Biomass Pellet Line]

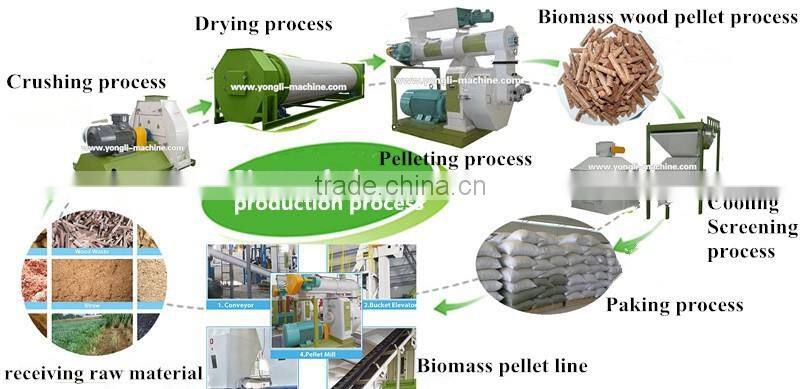

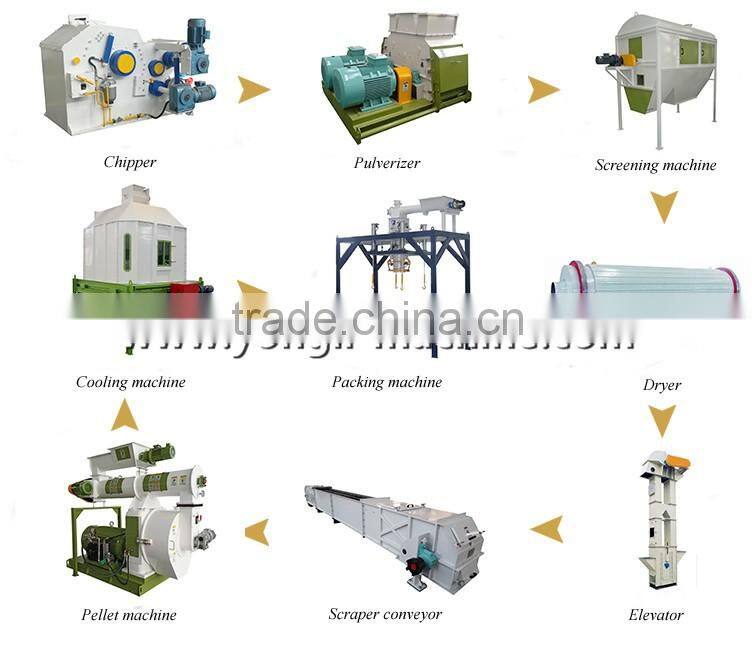

Complete biomass wood sawdust pellet production line
Peeling process, Chipping process, Drying process, Grinding process, Pelletizing process, Cooling and packaging process.
It will be different according to different raw material,mositure content and size.The whole process is highly automatically controlled.
Packaging: Depending on customers' requirement,such as iron case or iron pallet etc.

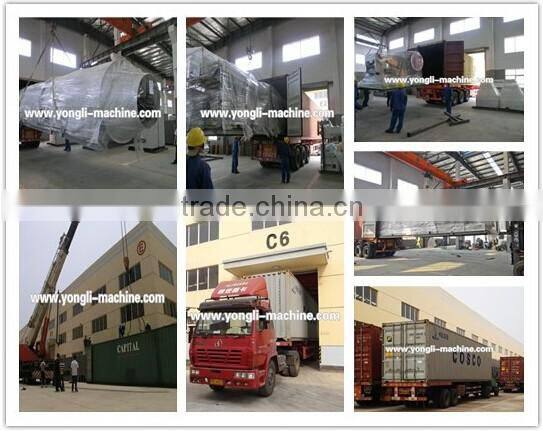

Shipping: When the container arrived our factory, ur shipping operator and delivering equipments will be ready on time to ensure goods shipped based on Sales Order requirement.
YongLi Company Profile
Business type: manufacturer, trading company
Location: Changzhou, Jiangsu, China(mainland)
Year Established: 2003
Company certifications: ISO9001, CE, SGS
Main products:
Chipping line and pelletizing line for biomass and feed, includes pellet mill, hammer mill,drum dryer, wood chipper...
Jiangsu Yongli Machinery Co., Ltd. is a qualified manufacturer which specializes in developing, producing and marketing top-class machinery equipment. Now we focus on pellet mill, hammer mill, mixer, drum dryer, wood chipper, packing machine, etc. and turn key projects.
The advantages of our quick installation, such as beautiful appearance, flexible operation, stable performance and low operational cost are accepted by more and more customers. We own an outstanding R&D team and a strict & scientific management system, which enable us to supply high quality & convenient turn-key projects to all of our customers.
We have successfully produced over 1,000 turn key projects to clients, which make us one of the biggest manufacturers and the most powerful factories for biomass machinery. We have already sold our machines to over 80 countries, they are: Latvia, Russia, Slovenia, France, Italy, Tunisia, New Zealand, Australia, Colombia, Brazil, Uruguay, Vietnam, Thailand, Malaysia, Singapore, Indonesia, Algeria, the UAE, Kazakhstan, etc. Some of our clients have become our indispensable agents and cooperate with us very well.
YongLi Professional Team
YongLi Honor
Why choose us?
Advantages we have:
Experienced biomass and feed pellet line related supplier for over 12 years.
- Professional sales and engineers team for your service.
High quality as all of the products have approved CE&ISO9001&SGS certifications
- Use most up-to-date CNC Machine Center to ensure the quality standards.
Already supplied over 1,000 turn-key projects with great satisfaction.
Fair Show In The USA
Welcome to contact us!
Welcome to visit our factory!
We will provide you our best equipments with the reasonable price to meet your requirements.
If you are interested, welcome to inquiry us!
