2015 High capacity pellet cooler machine price with CE certificate
- 100 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | YONGLI |
Model Number: | SLFJ/SKLB/SKLN | Type: | Other, cooler machine, Pendulum cooler, counter flow cooler, cooling and vibrating screener | Voltage: | 380/400/415 |
Power(W): | 0.55 | Certification: | CE & ISO9001 & SGS | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

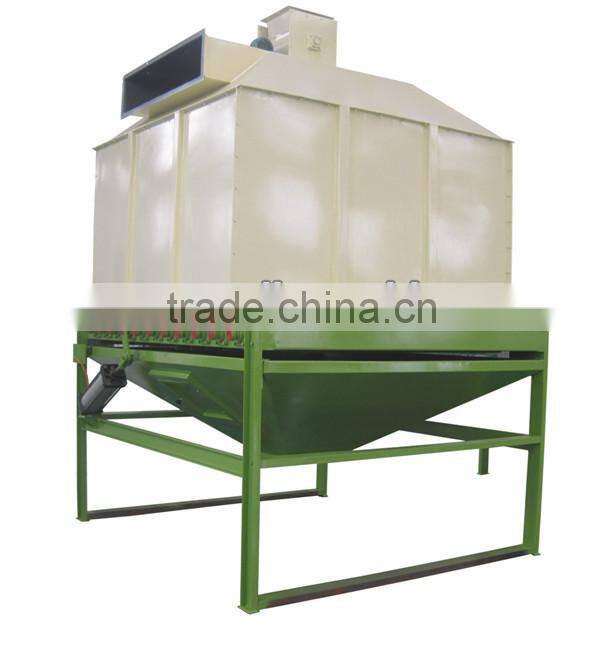

2015 High capacity pellet cooler machine price with CE certificate
cooler machine
Introduction: Cooler is mainly used for cooling of particle material. The temperature of pellet after pelletizing is always 70-90℃, this process is to make the temperature a little higher than ambient temperature (generally not higher than 3-5℃). The hardness of pellet after cooling is strengthened, and is convenient for storage and transportation.
There are three main kinds of cooling machines for you reference:

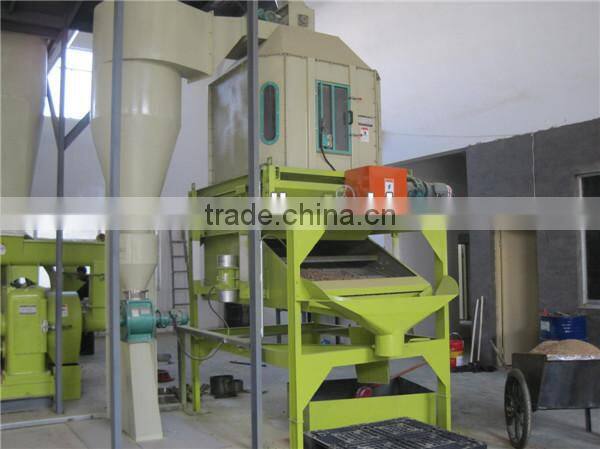

1.Cooling and Vibrating Screener(SLFJ Series)
(a)Principle
Screening body's driving mode is balanced vibration, that is, in screening of symmetry ship installation with two vibration motor drive body, two motor to relative to offset the horizontal vibration force, vertical vibration force stack, ensure the nomal body movement trajectory of screen, screening effect is good.
(b)Technical Parameters
Model | SLFJ1.5 | SLFJ2.5 | SLFJ4 | SLFJ6 | SLFJ8 |
Cooling volume(m3) | 1.5 | 2.5 | 4 | 6 | 8 |
Capacity(t/h) | 3 | 5 | 10 | 15 | 20 |
Cooling time(min) | Not less than 6-10 | ||||
Meterials temperature after cooling | Not exceeding 3-6 celsius degree than ambient temperature | ||||
Air volume(m3/min.t) | 22-34 | ||||
Feeding power(kw) | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 |
(c)Features
- Make use of the vibrating screen surface, it will classify the pellet according to different particle size.
- Low energy consumption, convenient operation and high degree of automation.
- It is with both cooling and sifting function.

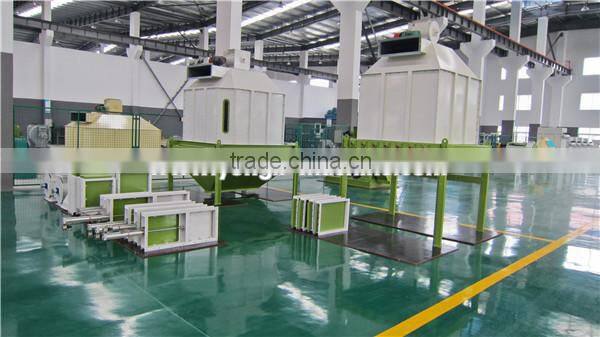

2.Pendulum Cooler(SKLB Series)
(a) Technical Parameters
Model | SKLB1.5 | SKLB2.5 | SKLB4 | SKLB6 | SKLB8 | SKLB10 |
Capacity(t/h) | 3 | 5 | 10 | 15 | 20 | 25 |
Power(kw) | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
Airlock power(kw) | 0.55 | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 |
Cooling time(min) | Not less than 6-10 | |||||
Materials temperature after cooling | Not exceeding 3-5 celsius degree than ambient temperature |
(b) Features
- The unique rotating well-distributed institution makes the materials more even and the cooling effect more thorough.
- The pendulum flap discharging institution is controlled by hydraulic system, even and smooth discharging. The discharge speed can be adjustable.
- It can cool kinds of materials like round, block, pieces or pellet status.
- Low energy consumption and easy to operate.
- The temperature after cooling will not be over 3-5°c of the room temperature.

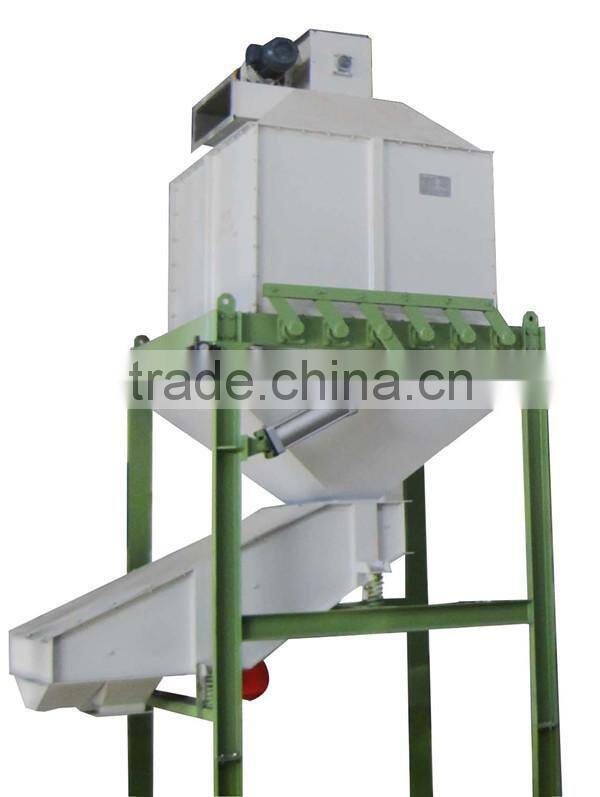

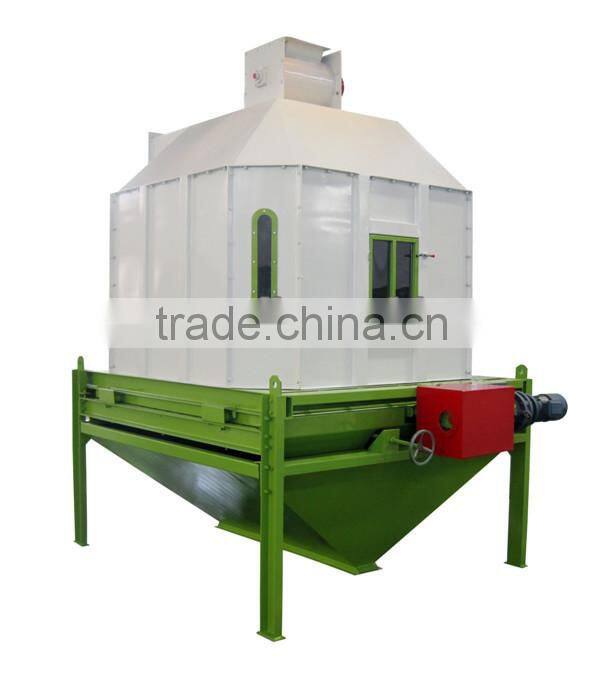

3.Counter Flow Cooler(SKLN Series)
(a) Technical Parameters
Model | SKLN1.5 | SKLN2.5 | SKLN4 | SKLN6 | SKLN8 | SKLN10 |
Capacity(t/h) | 2.5 | 6 | 10 | 15 | 20 | 25 |
Power(kw) | 1.1 | 1.1 | 2.2 | 2.2 | 3.2 | 3.37 |
Cooling time(min) | Not less than 6-10 | |||||
Feed temperature after cooling | Not exceeding 3-8 celsius degree than ambient temperature |
(b) Features
- Materials are feed from the top to the bottom, and the cold air is from the bottom, which realizes effective and fully cooling.
- Adopts counter flow cooling principle, more sufficient and effective cooling.
- Adopts sliding product discharging mechanism, stable running, reliable and smooth.
- The temperature of pellet after cooling is less than ambient +3-+8°c.
- Automatically stop during discharging.

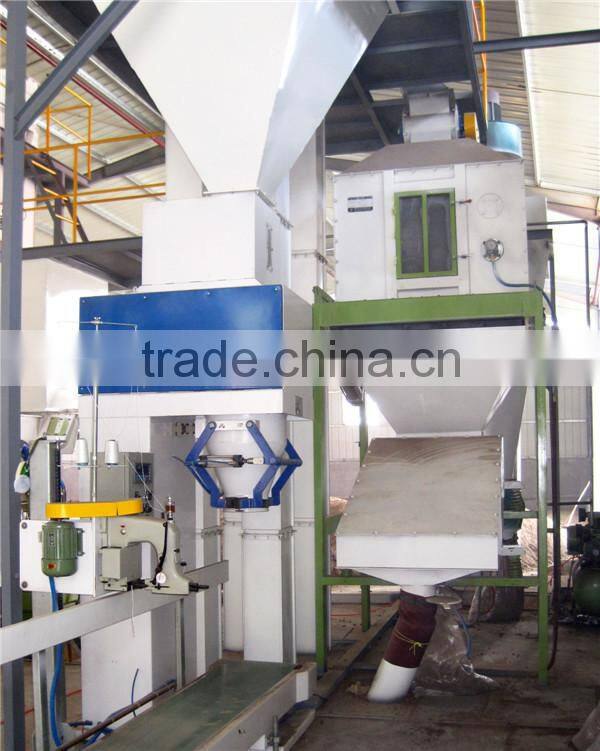

Related production line

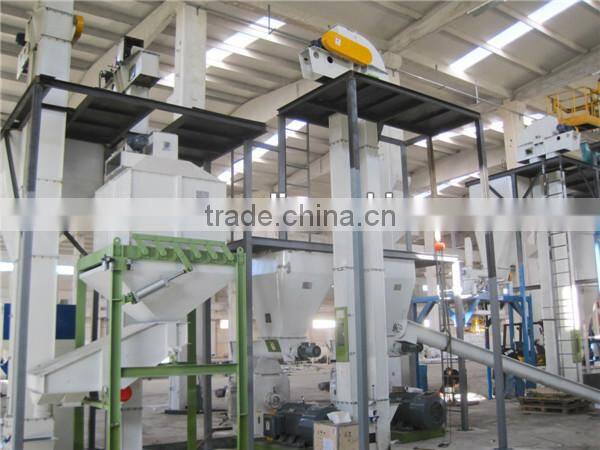

A complete biomass pellet production line includes:

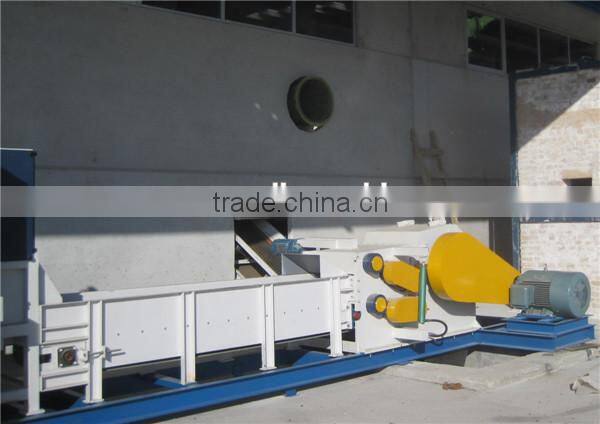

- Receving & Chipping Process

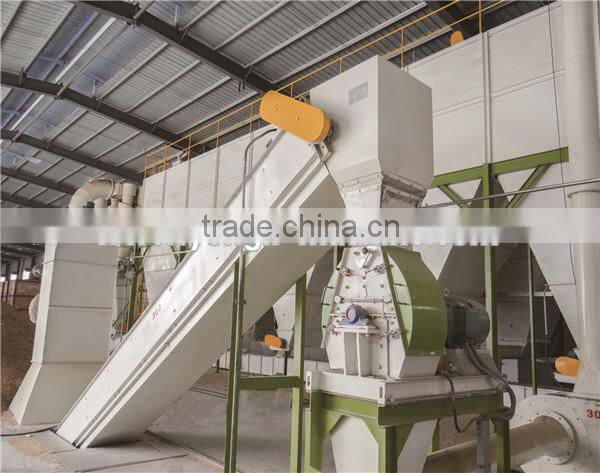

- Grinding Process

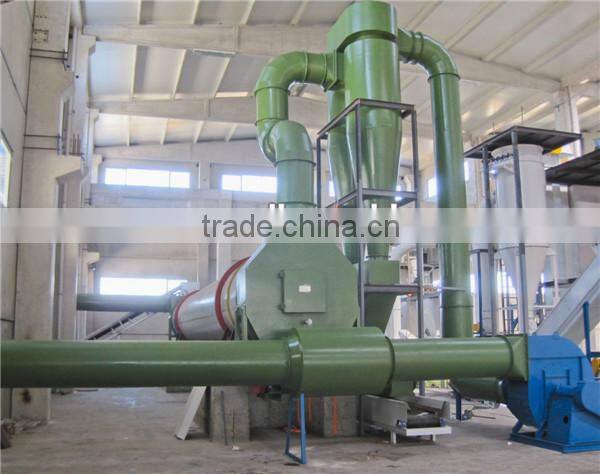

- Drying Process

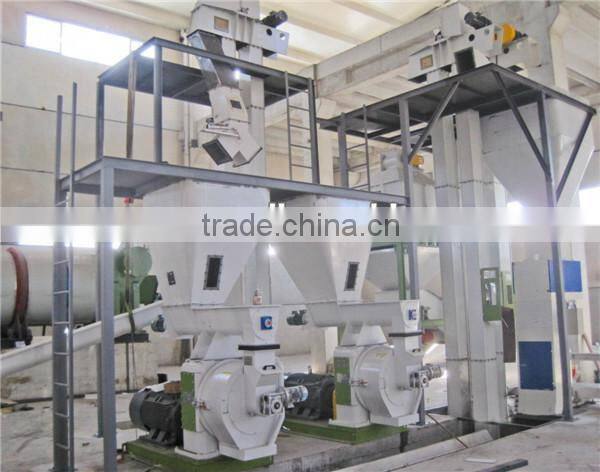

- Pelleting Process
- Cooling and Packing Process
- Packaging: Depending on customers' requirement,such as iron case or iron pallet etc.
- Shipping: When the container arrived our factory, ur shipping operator and delivering equipments will be ready on time to ensure goods shipped based on Sales Order requirement.
About us
Business type: manufacturer, trading company
Location: Changzhou, Jiangsu, China(mainland)
Year Established: 2003
Company certifications: ISO9001, CE, SGS
Main products:
Chipping line and pelletizing line for biomass and feed, includes pellet mill, hammer mill, drum dryer, wood chipper...
Jiangsu Yongli Machinery Co., Ltd. is a qualified manufacturer which specializes in developing, producing and marketing top-class machinery equipment. Now we focus on pellet mill, hammer mill, mixer, drum dryer, wood chipper, packing machine, etc. and turn key projects.
The advantages of our quick installation, such as beautiful appearance, flexible operation, stable performance and low operational cost are accepted by more and more customers. We own an outstanding R&D team and a strict & scientific management system, which enable us to supply high quality & convenient turn-key projects to all of our customers.
We have successfully produced over 1,000 turn key projects to clients, which make us one of the biggest manufacturers and the most powerful factories for biomass machinery. We have already sold our machines to over 80 countries, they are: Latvia, Russia, Slovenia, France, Italy, Tunisia, New Zealand, Australia, Colombia, Brazil, Uruguay, Vietnam, Thailand, Malaysia, Singapore, Indonesia, Algeria, the UAE, Kazakhstan, etc. Some of our clients have become our indispensable agents and cooperate with us very well.
Our company view
Factory
Warehouse
Why choose us?
Advantages we have:
Experienced biomass and feed pellet line related supplier for over 12 years.
- Professional sales and engineers team for your service.
High quality as all of the products have approved CE&ISO9001&SGS certifications
- Use most up-to-date CNC Machine Center to ensure the quality standards.
Already supplied over 1,000 turn-key projects with great satisfaction.
Our customers
Welcome to contact us!
Welcome to visit our factory!
We will provide you our best equipments with the reasonable price to meet your requirements.
If you need any further information,do not hesitate to contact us !
