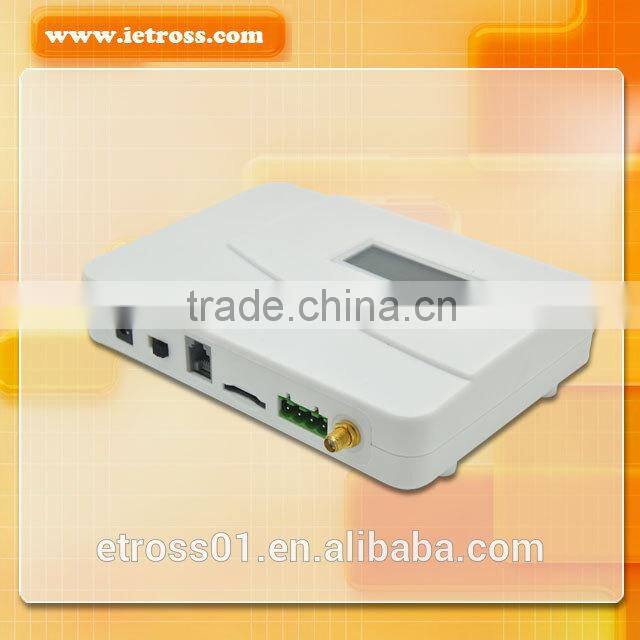

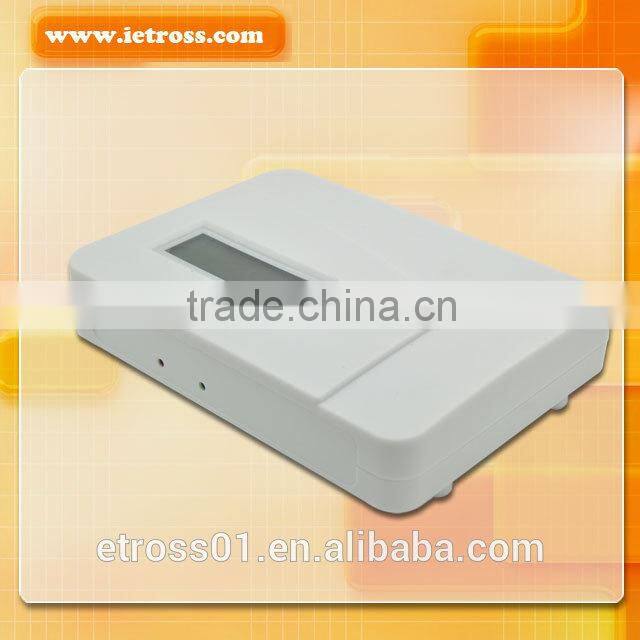

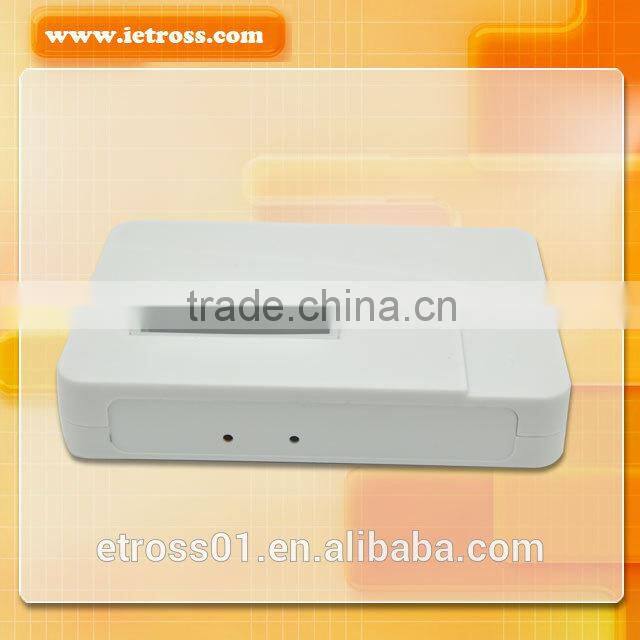

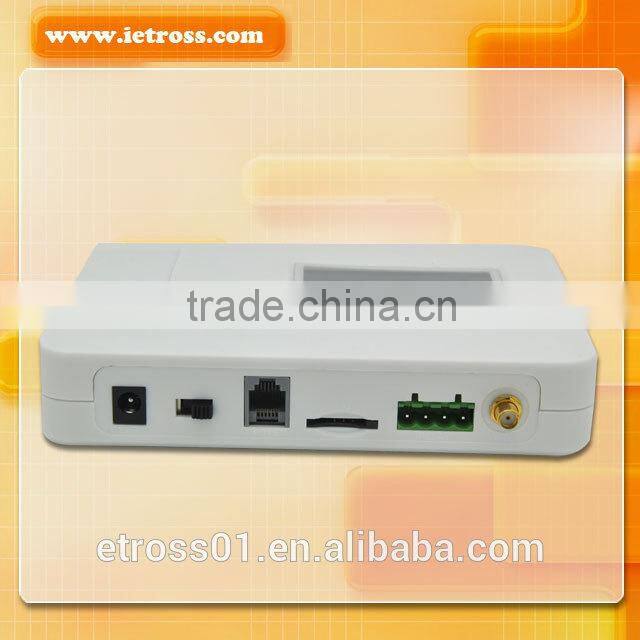

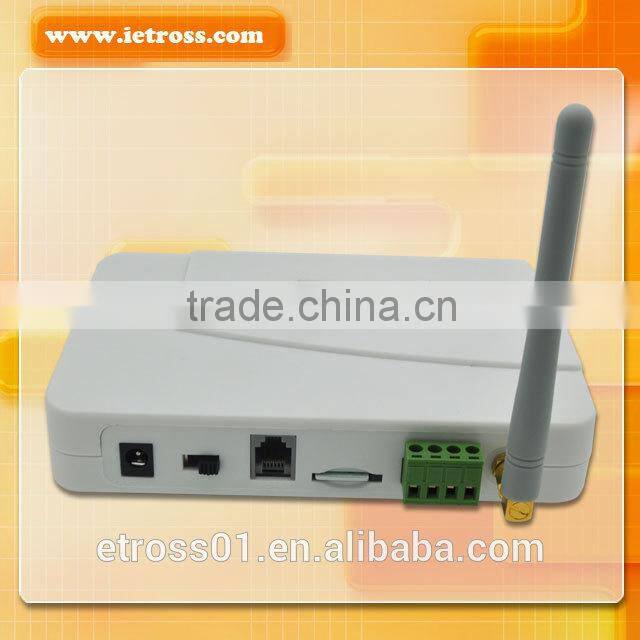

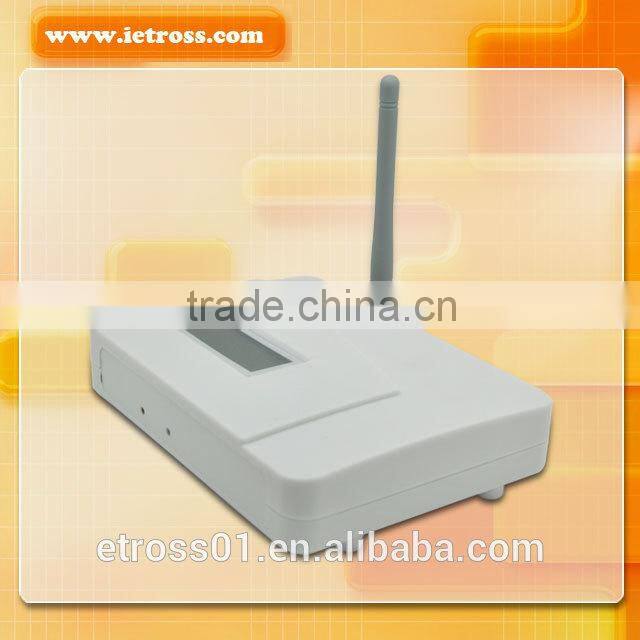

One sim holder LCD display GSM FWT 8818, For European market, 900/1800mhz
Specifications
1.GSM 900/1800Mhz;
2.1 Port GSM FWT with LCD Display;
3.SMS remote control for alarm panel;
1.General Description
GSM FWT-8818 is a GSM to Analog Converter, the device can produce a FXS line to allow a regular phone to be
connected and used just like a local landline(PSTN) except your calls will go out the GSM network.
This device can both receive and make calls.
The main application is: Connecting the RJ-11 FXS line to connect Ordinary telephone set for voice call, to connect
PBX for call extensions, to connect billing systems for public phone use, to connect VoIP gateway to realize VoIP call
termination, to connect alarm panels for security purpose, etc.
Especially, GSM FWT-8818 provide SMS management for SIM credit balance inquiry, Low battery alarm,
SMS remote control for alarm panel, and SMS remote control for relay etc. so it is a better choice for alarm
security application.
2.Features:
1) LCD display GSM FWT,Simple to install and easy to maintain
2) Steady module(SIM500W,300W,Quectel M35) and reliable design ensures good performance
3) Provides optimized circuit directly connecting the exchange device for extensions
4) Compatible to most telephones, PBX (for call extensions), Alarm panels (for security) and VoIP gateways
(for call terminations)
5) Strong signals with high gain antenna
6) Attractive plastic casing
7) SIM card supported (1.8V, 3V)
8) Caller ID display
9) Provides reversal polarity signal for metering
10) No noise and clear voice
11) Suitable for wide voltage range and low power consumption
12) Suitable for all kinds of weather and environmen
13) RJ-11 ports
14) Locking PIN / network (optional)
15) Back up Li-ion battery( Optional) 7.2V 1300mAh.standby 24hrs,talking time: 2.5hrs.
3,Technical Specifications
Air interface standard: GSM850/1900Mhz,900/1,800Mhz phase 2+ full band
Frequency ranges:
A) GSM 850 GSM 1900:
I) Transmission: 869.2 ~ 893.8MHz I) Transmission: 1, 930 ~ 1, 990MHz
Ii) Reception: 824.2 ~ 848.2MHz Ii) Reception: 1, 850 ~ 1, 910MHz
B) GSM 900: GSM 1800:
I) Transmission: 890 ~ 915MHz I) Transmission: 1, 710 ~ 1, 785MHz
Ii) Reception: 935 ~ 960MHz Ii) Reception: 1, 805 ~ 1, 880MHz
Phone interface: supply RJ-11 Phone Interface
Hanging voltage: 45V
Picking off voltage: 30mA / 41mA
Dialing tone Frequency: 450Hz
Antenna interface: Antenna amplifying>2.5db
Sensitivity:<-104DBM
Transmitting power<3W
Color: White
AC-Adapter interface: Input: AC 110~240VAC 50~60Hz
Output: 12DC 1A.
AC-Adapter type: EU, US, AU, British can be optional
4,Operation Circumstance:
Operation temperature: -10c~60C
Storage temperature:-20C~70C
Operation humidity:45%-95%
Atmosphere pressure:86-106Kpa
Environment noise: <60DB
Transmitting Power:2W
Sensitivity: <-104dbm
Antenna Amplifying: >2.5db
Dialing frequency: 450Hz
Hanging voltage: 45V
Picking current: 30mA/41mA
SMS Management:
1. SIM credit balance inquiry;
2. Control alarm panels;
3. Reply can be used to turn on/off the Air conditioning, lights etc.
