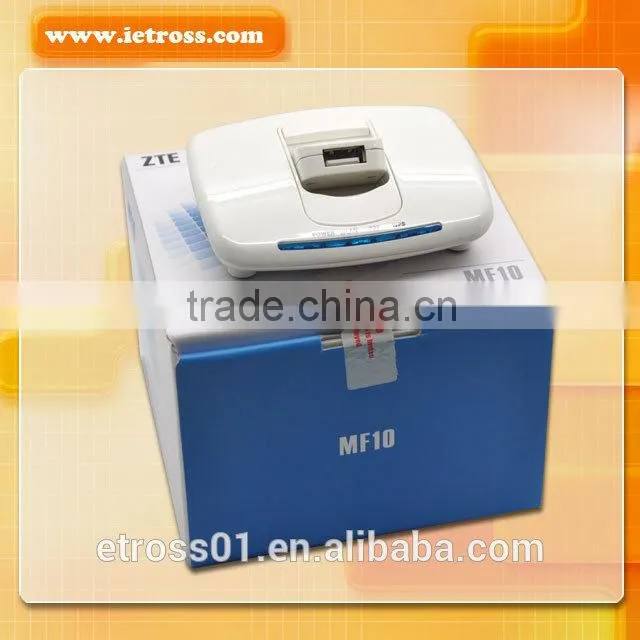

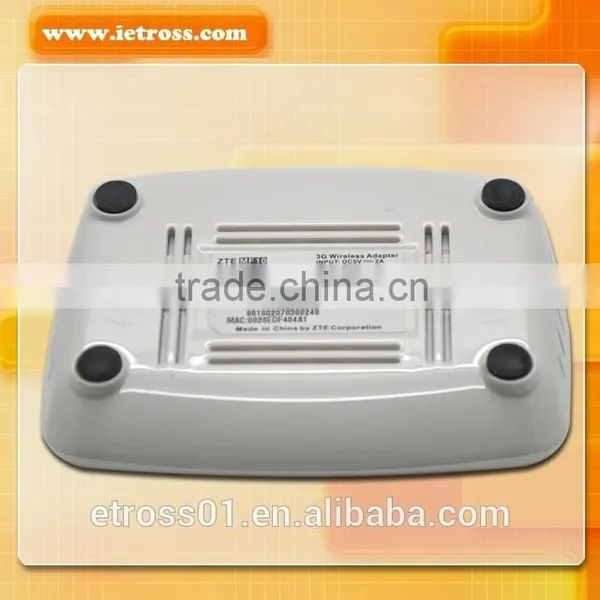

ZTE MF10 portable 3G Wireless Router
3g portable wireless wifi router/ portable 3G wireless router/ best 3g wifi wireless portable router
Specifications
* 3G wireless router
* supports two computers using Ethernet cables at the same time
* supports Wireless LAN connection
ZTE MF10 is a portable 3G wireless router providing wireless broadband internet servise on 2G and
3G network, user can simply connect computers to MF10 via Ethernet or WLAN interface to get high-speed internet connectivity. The USB modem stick on MF10 via a US 2.0 Master high speed port can
support multi-mode 3G bands, such HSPA/UMTS/EDGD/GPRS/GSM, MF10 comply with 802.11b/g
standard with Wi-Fi security.
ZTE MF10 features:
* USB to connect the modem
* WiFi 802.11 b/g
* 2 × 100 Mbps Ethernet ports
* Supports up to 5 clients WiFi
Indicator |
State |
Description |
1. POWER |
ON |
External power supply works normally. |
OFF |
External power supply is disconnected or power off. |
|
2. WLAN |
ON |
WLAN works normally. |
Blinking |
Data transmission |
|
OFF |
WLAN works abnormally. |
|
3. PPP |
ON |
Internet connected |
Blinking |
The router attempts to connect Internet. |
|
OFF |
Internet disconnected and not attempt to connect. |
|
4. WPS |
ON |
WPS authentication is started and available. |
Blinking |
WPS authentication is in progress or unavailable. |
|
OFF |
WPS authentication is not started. |
|
|
5,LAN |
Off |
Out of Connection |
Solid Green |
Connection |
|
Flashing Green |
Data Service Process |
ZTE MF10 does not require any drivers, and it supports all operating systems with Ethernet
LAN capability, such as Windows 2000, XP, Vista, MAC OS X and Linux. The router supports two
computers surfing on internet using Ethernet cables at the same time, and also supports
Wireless LAN connection.
MF10 Fixed Wireless Adapter

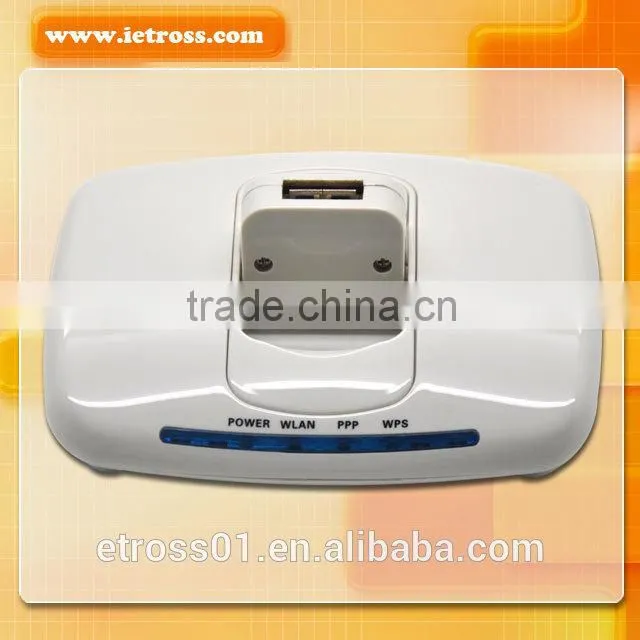

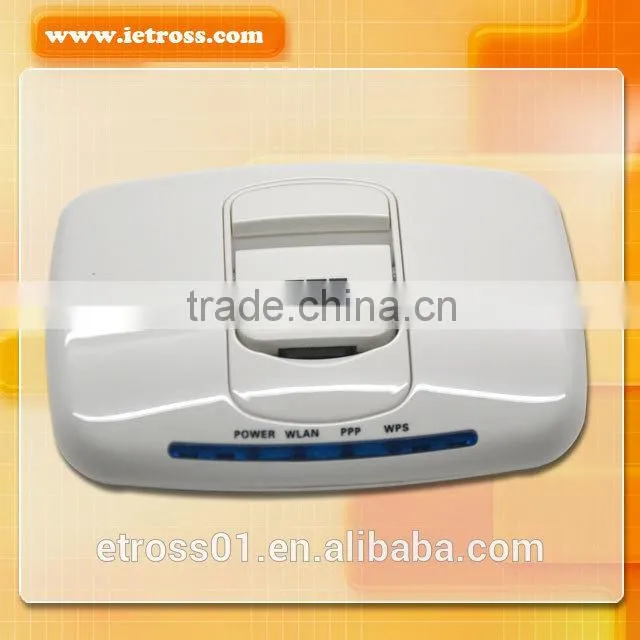

• LED Display:
i. Power Indicator
ii. WLAN Indicator
iii. PPP Indicator
iv. WPS Indicator

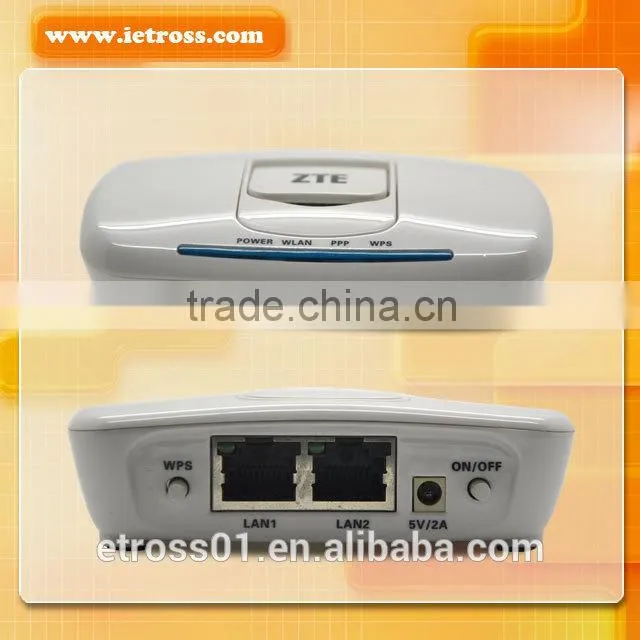

• External Interface:
i. External Power Socket
ii. Data Interface (LAN)

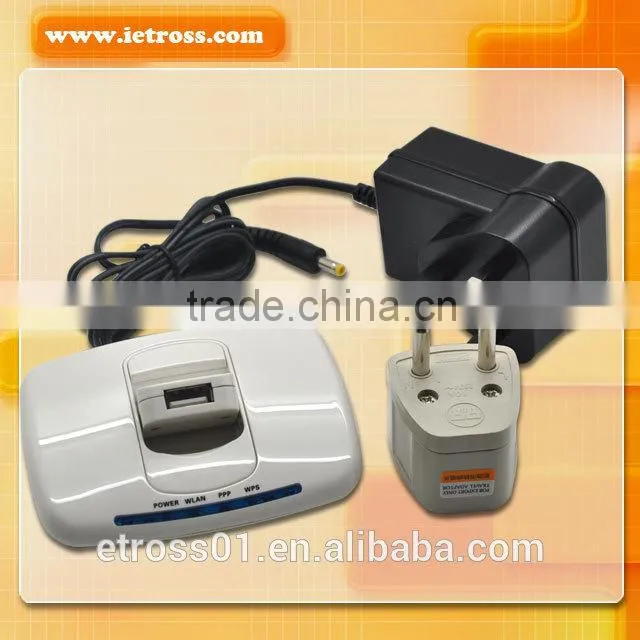

• Power Adapter:
Input: 100V~240V (AC), 50~60Hz
Output: +5V (DC), 2A
• Dimensions (W×H×D): 93mm×70mm×25mm
ZTE USB Modem (Inner modem)
• Network & Frequency Band:
EDGE/GPRS/GSM: 850/900/1800/1900MHz
HSUPA/HSDPA/UMTS: 850(900)/1900/2100MHz
• Data Service:
HSUPA 2Mbps UL
HSDPA 7.2Mbps DL
• Dimensions (H×W×D): 69mm×26mm×12mm
