Specifications
full automatic bottle unscrambler machine1.PET bottle unscrambler machine
2.applied for 0.25-2L bottle
3.speed:9000-12000b
Automatic bottle unscrambler machine(round PET bottle)
Working principle:
When the bottle elevator is started, the disordered bottles will be transferred on top of umbrella shape tower, and then
fall into bottle ascending-descending devices.
The bottle ascendidescending devices will push bottles into bottle dropping grooves under the action of cam.
Then the ordered bottles will be sent out through planet wheel into air conveyor. Planet wheel is connected with motor main axis by synchronous belt.
Main Technical Technology
1 |
Number of working positions
|
16 |
2 |
Rationed capacity |
10000 bottles /hour |
3 |
Max .capacity |
12000 bottles/ hour |
4 |
Air pressure |
0.7MPa |
5 |
Air consumption |
1.5M3/ min |
6 |
Applicable bottles. diameter |
50-96MM, |
7 |
Applicable bottles. Height |
165-300MM |
8 |
Main motor |
1.5KW |
9 |
Lifting motor |
0.75KW |
10 |
Fan |
2.2KW |
11 |
Dimension |
Approx Φ2200×2340mm (diameter × height |
12 |
Weight |
Approx 3600 Kg |

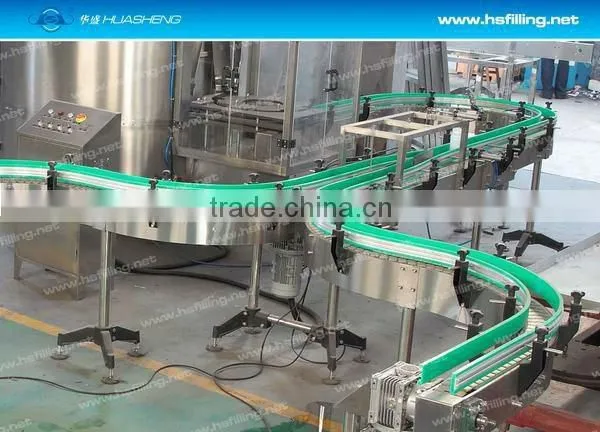

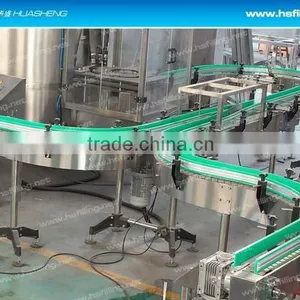

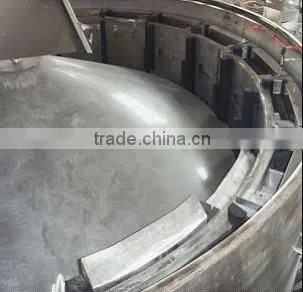

Photos of bottle unscrambler
