Specifications
high speed plastic bottles unscrambler machine1.unscrambling speed:12000b/h
2.bottle size:0.25-2L
3.PLC control
4.CE,ISO

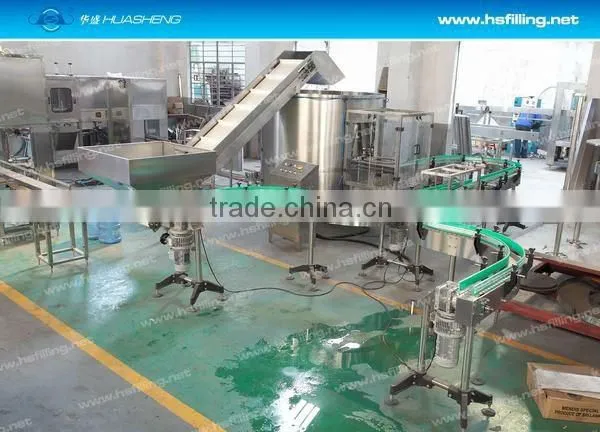

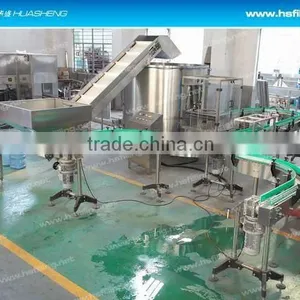

High Speed Plastic Bottles UnscramblerMachine
Useful-
The machine is used in ordering disordered polyester bottles. The disordered bottles are carried into the storing bottles section of the ordering bottle machine with the help of the push.
Working principle:
When the bottle elevator is started, the disordered bottles will be transferred on top of umbrella shape tower, and then
fall into bottle ascending-descending devices.
The bottle ascendidescending devices will push bottles into bottle dropping grooves under the action of cam.
Then the ordered bottles will be sent out through planet wheel into air conveyor. Planet wheel is connected with motor main axis by synchronous belt.
Main Technical Technology
1 |
Number of working positions
|
16 |
2 |
Rationed capacity |
10000 bottles /hour |
3 |
Max .capacity |
12000 bottles/ hour |
4 |
Air pressure |
0.7MPa |
5 |
Air consumption |
1.5M3/ min |
6 |
Applicable bottles. diameter |
50-96MM, |
7 |
Applicable bottles. Height |
165-300MM |
8 |
Main motor |
1.5KW |
9 |
Lifting motor |
0.75KW |
10 |
Fan |
2.2KW |
11 |
Dimension |
Approx Φ2200×2340mm (diameter × height |
12 |
Weight |
Approx 3600 Kg |
