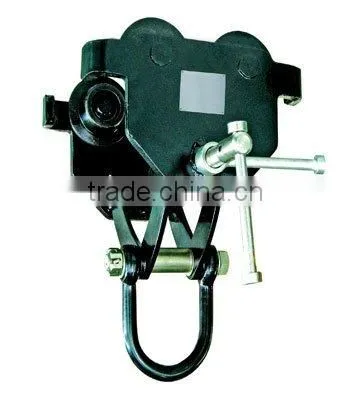

Help CenterShackled Trolley Clamp
Negotiable
MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SEA EAGLE
Model Number:
S TYPE
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
SEA EAGLE
Model Number
S TYPE
Specifications
1.The easy installation to any beam2. suitable for affixing and moving hoists, pulleys and loads.
| Item No. | ZHTC-S-1T | ZHTC-S-2T | ZHTC-S-3T | ZHTC-S-5T | ZHTC-S-10T | ||
| Capacity (ton) | 1 | 2 | 3 | 5 | 10 | ||
| Test load (Kn) | 14.71 | 29.42 | 44.13 | 61.29 | 122.58 | ||
| Min.radius of curve (m) | 1 | 1.1 | 1.3 | 1.4 | 2 | ||

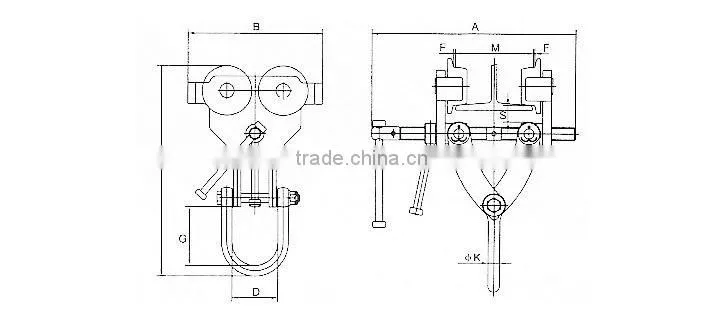

| Dimensions(mm) | A | 325 | 325 | 342 | 480 | 480 | |
| B | 236 | 280 | 345 | 377 | 450 | ||
| C | min | 310 | 360 | 418 | 458 | 603 | |
| max | 360 | 405 | 460 | 532 | 655 | ||
| D | 74 | 80 | 105 | 129 | 165 | ||
| G | 82 | 83 | 101 | 101 | 163 | ||
| S | 48 | 42 | 58 | 50 | 52 | ||
| K | 16 | 22 | 27 | 34 | 45 | ||
| F | 1.5-3 | 2-3.5 | |||||
| I-beam width range mm M | 64-203 | 76-203 | 82-203 | 100-305 | 136-305 | ||
1. The easy installation to any beam makes the TCSP Trolley Clamp suitable for affixing and moving hoists, pulleys and loads. It can be adjusted quickly to the beam width by turning the main spindle. 2. Safety is ensured by the special locking lever.
