Home > Manufacturing & Processing Machinery > Lifting Equipment > Hoist > Plain Trolley DB Type 0.5T~5T
Plain Trolley DB Type 0.5T~5T
US$ 15 - 50
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SEA EAGLE
Model Number:
DB TYPE
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
SEA EAGLE
Model Number
DB TYPE
Usage
Construction Hoist
Power Source
Hand Chain
Sling Type
Chain
Maximum Lifting Weight
0.5T~20t
Specifications
plain trolley DB type1.Easily adjustable(round nuts) to fit a wide range of beam width
2.capacity:0.5T~5T
3.normal/long beam
1. plain trolley DB type
2. Easily adjustable(round nuts) to fit a wide range of beam width.
3. Fine adjustment and fitting to the beam is extremely easy by adjusting the round units.
4. Adjustable to fit a wide range of beam profiles.
5. Excellent rolling feature due to machined steel wheels mounted on prelubricated,encapsulated ball bearings.
6. Anti-tilt and anti-drop device are standard request.
7. Both normal beam and long beam is available.
| Item No.(I-beam:nomal) | ZHPT-DB-0.5T | ZHPT-DB-1T | ZHPT-DB-1.5T | ZHPT-DB-2T | ZHPT-DB-3T | ZHPT-DB-5T | ZHPT-DB-8T | ZHPT-DB-10T | ZHPT-DB-15T | ZHPT-DB-20T | ||
| Item No.(I-beam:long) | ZHPT-DB-0.5T-L | ZHPT-DB-1T-L | ZHPT-DB-1.5T-L | ZHPT-DB-2T-L | ZHPT-DB-3T-L | ZHPT-DB-5T-L | ZHPT-DB-8T-L | ZHPT-DB-10T-L | ZHPT-DB-15T-L | ZHPT-DB-20T-L | ||
| Capacity(t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 8 | 10 | 15 | 20 | ||
| Running test load(kn) | 7.35 | 14.71 | 22.06 | 29.42 | 44.13 | 61.29 | 98.06 | 122.58 | 196.12 | 245.17 | ||
| Min.radius of curve(m) | 0.8 | 0.9 | 1 | 1 | 1.2 | 1.3 | 2 | 2 | 3.5 | 3.5 | ||

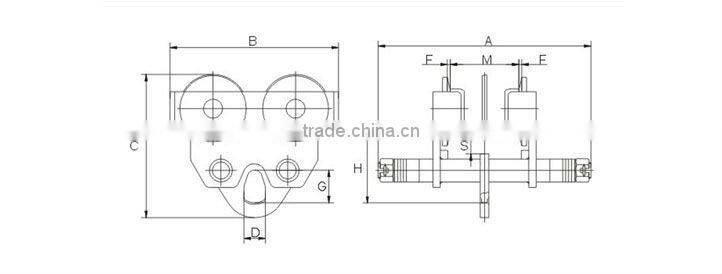

| Dimension(mm) | A | a | 236 | 303 | 310 | 317 | 333 | 355 | 372 | 378 | 449 | 449 |
| b | 286 | 405 | 412 | 419 | 435 | 457 | 474 | 480 | 551 | 551 | ||
| B | 194 | 236 | 250 | 268 | 322 | 362 | 426 | 442 | 555 | 555 | ||
| C | 176 | 196 | 210 | 226 | 266 | 301 | 388 | 396 | 498 | 498 | ||
| H | 75 | 96 | 102 | 109 | 124 | 142 | 185 | 190 | 230 | 233 | ||
| S | 30 | 38 | 38 | 38 | 40 | 42 | 45 | 45 | 65 | 58 | ||
| D | 28 | 32 | 36 | 42 | 52 | 62 | 72 | 72 | 95 | 95 | ||
| G | 32 | 40 | 45 | 52 | 63 | 74 | 110 | 110 | 135 | 135 | ||
| F | 1.5-3 | 2-3.5 | ||||||||||
| I-Beam width range(mm) | M | a | 50-152 | 64-203 | 74-203 | 88-203 | 100-203 | 114-203 | 124-203 | 124-203 | 136-203 | 136-203 |
| b | 50-203 | 64-305 | 74-305 | 88-305 | 100-305 | 114-305 | 124-305 | 124-305 | 136-305 | 136-305 | ||
| Net weight(kg) | a | 6 | 11.5 | 14 | 18 | 30 | 44 | 73 | 82 | 157 | 159 | |
| b | 6.5 | 13 | 16 | 20 | 34 | 50 | 79 | 89 | 164 | 167 | ||
