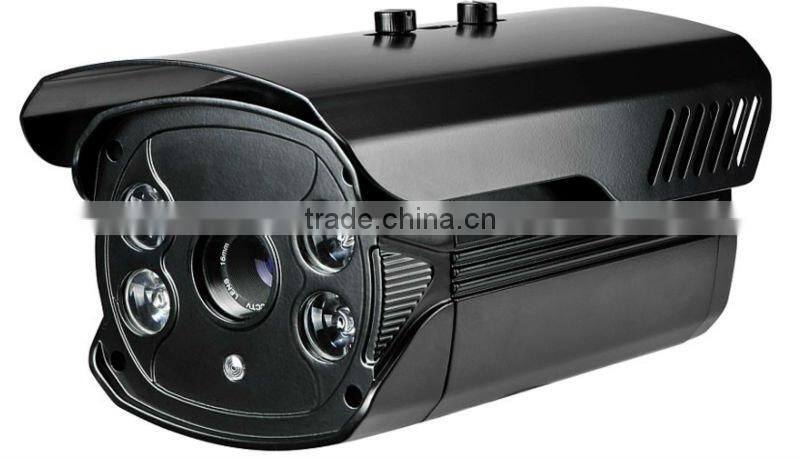

Help Center1/3 SONY, 700TVL,960H,Effio-E,OSD Cctv 80M IR IP66 Waterproof Camera Housing Outdoor
Related Products
-
1/3 SONY, 700TVL,960H,Effio-E,OSD Cctv 80M IR IP66 Waterproof Outdoor Surveillance Camera SystemNegotiableMOQ: 1 Piece -
2mp IP Camera BoardUS$ 16.9 - 17.5MOQ: 1 Piece
-
hd Night Vision 2MP ip Camera BoardUS$ 16.9 - 17.5MOQ: 1 Piece
-
2mp Camera BoardUS$ 16.9 - 17.5MOQ: 1 Piece
-
2mp ip Camera Board for SecurityUS$ 16.9 - 17.5MOQ: 1 Piece
Specifications
camera housing outdoor/12mm/16mm/25mm
750TVL High Resolution Real Time
80m IR Distance .6mm/8mm/12mm/16mm/25mm Megapixel fixed lens optional .750TVL High Resolution Real Time WDR Waterproof IR Camera .Sensitivity increase:Off / AGC / AGC+SLOW / SLOW+AGC / AGC+SLOW+AGC .Support Chinese,English,French,German,Russian,Japanese,Spanish,Portuguese .New private-mold designed, black powder technology, scratch resistant, wear-resistant. .4pcs H.LED high-energy IR light, high-brightness, low power, life long,superior night vision
| EC-W75K4: 750tvl,WDR,OSD,3D-DNR,HLC-BLC,Double scan |
| EC-W65K4: 650tvl,OSD,2D-DNR,BLC |
| EC-W60K4: 600tvl,OSD, |
Model No. |
EC-W75K4 |
Camera Type |
750TVL High Resolution Real Time WDR Waterproof IR Camera |
Image Sensor |
1/3” Sony Dual Scan 750TVL (ICX663AK+CXD4129) |
Scanning System |
2:1 Interlace |
Total Pixel |
PAL:967H*582V NTSC:967H*494V |
Horizontal Resolution |
750TVL |
Min. Illumination |
0.05Lux F1.2, 0Lux (IR ON) |
S/N Ratio |
54dB |
Video Output |
CVBS:1.0Vp-p/75Ω Composite |
Gamma Correction |
0.45 |
Frequency |
H:15.734 KHz/V:15.625KHz/V:50Hz |
Sync. System |
Internal Synchronization |
Day&Night |
Auto/ Color/ B/W |
Shutter Speed |
1/50 -1/10,000 SEC |
Scanning System |
2:1 Interlace |
White Balance |
ATW/PUSH/USER1/USER2/ANTI CR /MANUAL/PUSH LOCK |
BLC |
OFF/BLC/HLC |
Mirror |
Flip Horizontal |
Motion Detection |
20 Area Setting |
Privacy |
20 Area Setting |
Mirror Function |
Horizontal/Vertical |
On Screen Display |
Chinese,English,French,German,Russian,Japanese,Spanish,Portuguese |
Sharpness |
On/Off (Level Adjustable) |
ATR-EX (WDR) |
On/ Low/Middle/Full |
Noise Reduction |
3D/2D-DNR |
Power Supply |
DC12V±5 |
Power Consumption |
6W |
Humidity |
85RH |
Operation Temp. |
-10°C~+50°C |
IR Led |
4pc H.LED high-energy infrared light |
Lens Type |
6mm/8mm/12mm/16mm/25mm(Optional) |
Dimensions |
27*19*16cm |
Weight |
1.35kg |
