4CH 720P HD TVI Camera Kit IR Night Vision Mini NVR Kit Security Camera Outdoor
US$ 92.00 - 92.00
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CCDCM
Model Number:
TVKIT3104
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
720P HD TVI Camera 2.8-12mm Varifocal Lens Digital Onvif IR Night Vision Megapixel Full HD CCTV Security Camera OutdoorUS$ 21.00 - 21.00MOQ: 1 Piece -
720P HD TVI Camera 2.8-12mm Varifocal Lens Zoom and Focus Digital Indoor Vandalproof IR Night Vision Video CameraUS$ 15 - 21MOQ: 1 Piece
-
960P HD TVI Camera 2.8-12mm Varifocal Lens Digital Onvif IR Night Vision Megapixel IP66 Full HD CCTV Camera in Security SystemUS$ 25.00 - 25.00MOQ: 1 Piece
-
Hot 1080P HD TVI Camera 2.8-12mm Varifocal Lens Digital Onvif IR Night Vision Megapixel Full HD 2MP CCTV Security Camera SystemUS$ 32.00 - 32.00MOQ: 1 Piece
-
HD 1080P TVI Camera IR Night Vision Onvif P2P 1MP Digital 2MP Security Camera OutdoorUS$ 1 - 23MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
CCDCM
Model Number
TVKIT3104
Cameras features:
4* 720P TVI Camera
1/4 inch 1 Megapixel CMOS sensor
High resolution : 1280*720

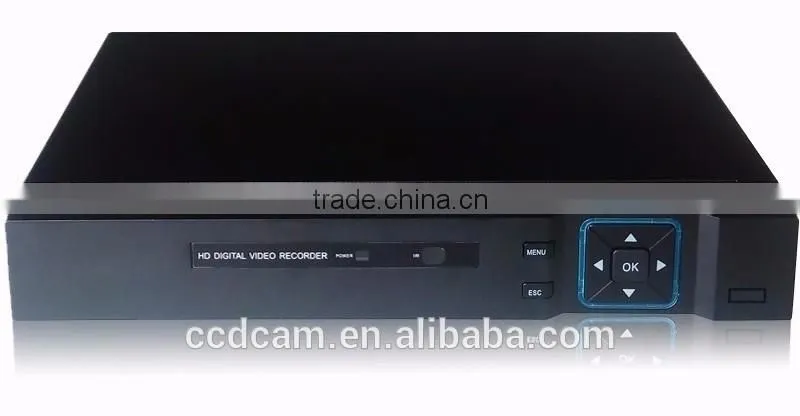

TVI DVR Features:
Support embedded Linux OS
4CH 720P Simultaneous playback
Support 4TB HDD, all channels support Main stream
| TVKIT3104 | ||
| TVI DVR | ||
| System | Main processor | High performance embedded microprocessor HI3520D V200 |
| Operating system | Embedded LINUX operating system | |
| System resources | Pentaplex function: Live, recording, playback, backup& remote access | |
| Control mode | USB mouse, Network | |

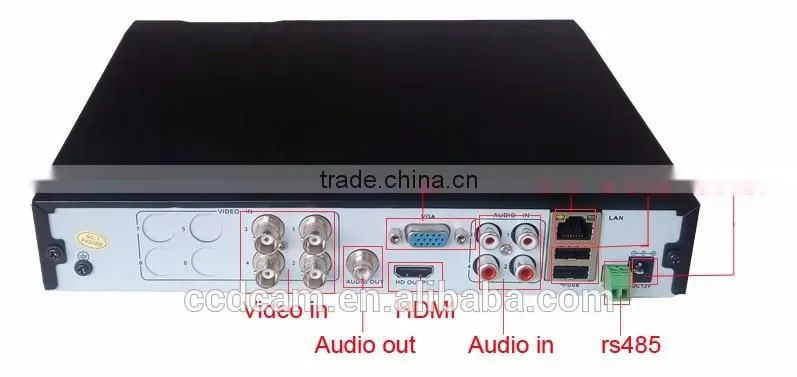

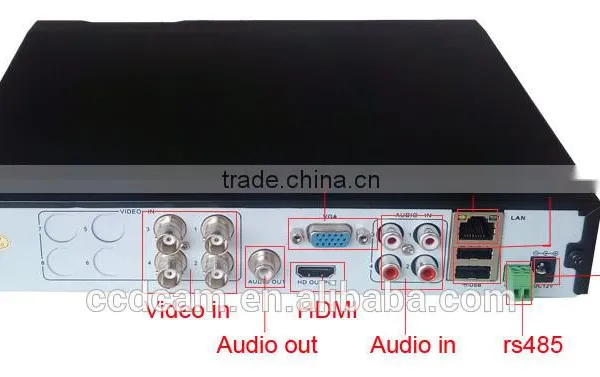

| Video | Input | 4CH,TVI/AHD/Analog input BNC(1.0Vp-p, 75Ω) |
| Output | 1HDMI, 1 VGA | |
| Standard | PAL / NTSC | |
| Audio | Input | 4CH, RCA(200-2800mV,30KΩ) |
| Display | Display split | 1CH 720P / 4CH 960H |
| Resolution | 720P(1280*720),960H,D1,CIF | |
| OSD | Camera title, time, video loss, camera block, motion detection, recording | |
| Record | Video resolution | H.264 |
| Audio resolution | adpcm,G711 | |
| Image resolution | 720P(1280x720),960H(960x576,960x480),D1(704 X 576/704 X 480) | |
| Encoding speed | Main stream: CH1~4 720P/960H(1~25/30FPS) | |
| Sub stream: CIF(1~5FPS),QCIF(1~5FPS) | ||
| Image quality | 1~6 level (level 6 is the best),VBR effectively | |
| Record mode | Manual,always, motion detection, alarm | |
| Record sequence | Manual>Alarm>Motion detection>General | |
| Alarm | Triggering event | Record, Snapshot, Alarm, Email |
| Motion detection | Area: 192(16*12), Sensitivity: 1-6 level | |
| Video loss | Support | |
| Playback and backup | Playback channel | 4ch 720P/960H |
| Playback speed | 960H 100/120FPS ,720P 100/120FPS | |
| Search mode | Time/Date, Alarm, Motion detection Exact search(accurate to second) | |
| Playback function | Play, Pause, Stop, Fast play, Slow play, full screen, backup | |
| Back mode | Flash drive/USB HDD/CD-DVD RW/Network download | |
| Network | Interface | RJ-45 port(10/100M) |
| Network functions | TCP/IP,UDP,DHCP,DNS,IPFilter,DDNS,FTP,Email,UPNP,P2P | |
| Remote operation | Monitor, PTZ control, Playback, System setting, File download, Log information | |
| Hard disk | Interface management | 1 SATA ports, each port support max 4TB HDD. |
| Auxiliary interface | USB Ports | 2 USB Ports: 1 for mouse control, 1 for backup |
| Environment | Power supply | DC 12V |

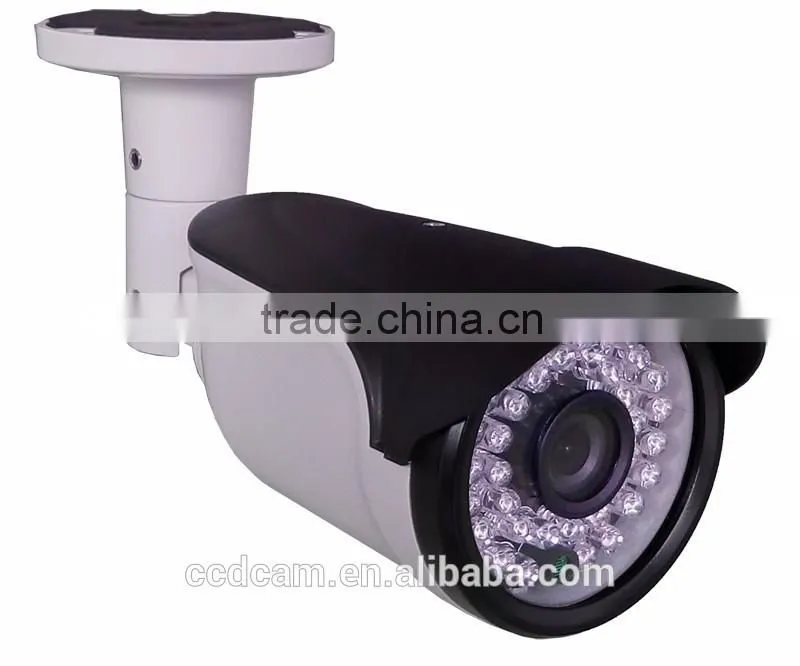

| 4*TVI Camera | ||
| Camera Type | 720P TVI camera 1.0 megapixel 1/4 CMOS | |
| Effective Pixels | PAL:1280x720@25fps NTSC:1280x720@30fps | |
| IR-LED | 36pcs IR led 30m IR Distance | |
| Day/Night | IR-CUT filter Color 1.0Lux/F1.2,B/W 0.1Lux/F1.2 | |
| Electronic Shutter | 4/25-1/45,000s | |
| Lens | 3.6/6mm Fixed Lens | |
| Lens Mount | M12/C/CS | |
| Output | 1CH TVI Video output | |
| Waterproof Criterion | IP66 | |
| Power | DC 12V | |
| Image | Auto BLC,Auto White Balance | |
| Max tansmission | common 75-3 lines can be up to 500 m | |

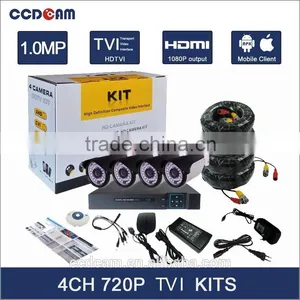

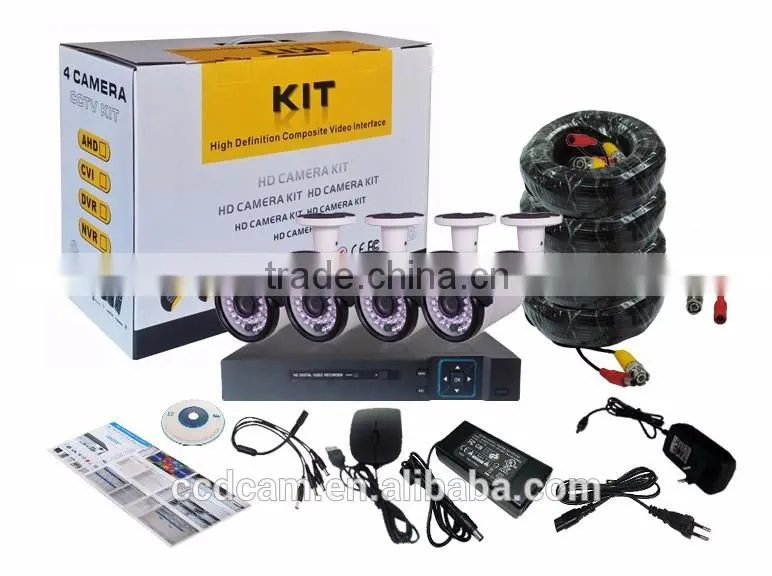

| Kits | ||
| Pcaking list | 1*TVI DVR; 4*1.0MP TVI cameras;4*20M (BNC+DC) cables; 1*quick start guide; 1*mouse; 1*CD; | |
| 1*power for DVR; 1*power for cameras; 1* one split four DC cable | ||
| Work environment | -10℃~60℃90%RH | |
| Package Size | 209*185*280mm | |
| Gross weight | ||
KIT
Packing
DVR Mode
A(TVI/AHD/Analog) 1080H/720P/960H/D1
IPC(IP camera) 1080P/960P/720P
A+IPC=4CH
P2P
P2P WEB:
Phone Client
App named: Eseecloud ,support Android and iPhone/iPad

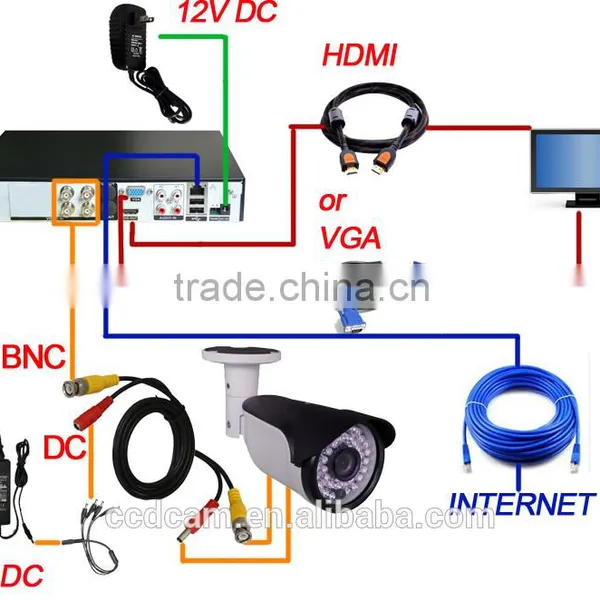

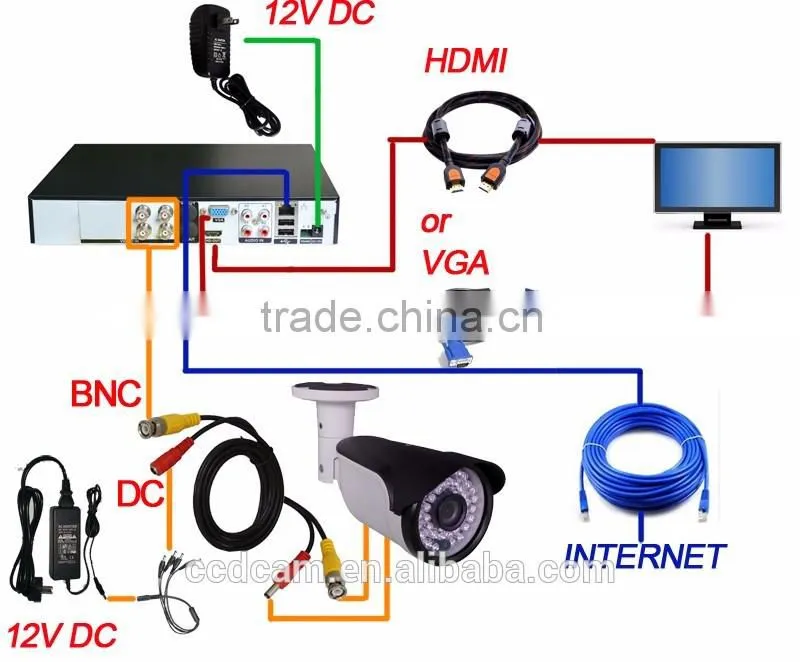

Installation Guide
