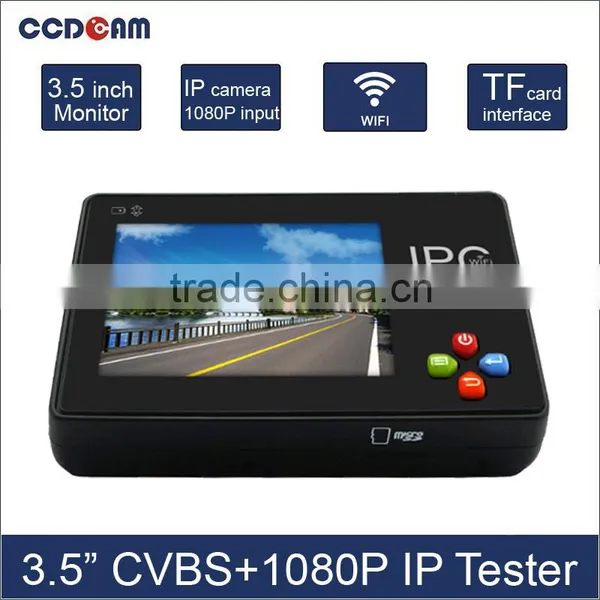

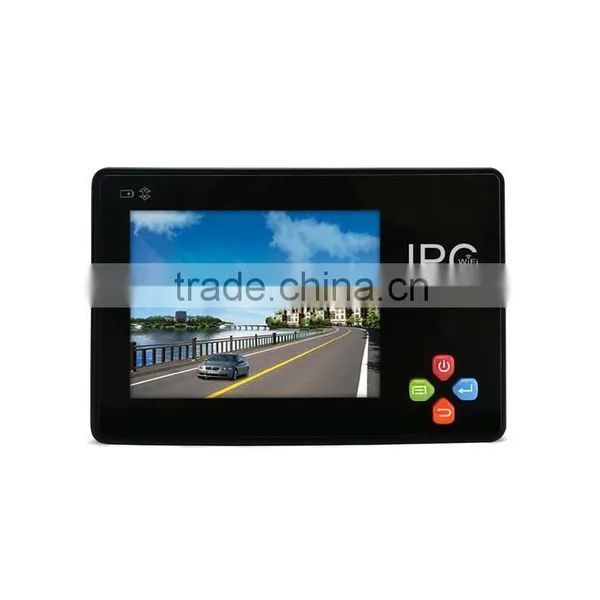

Help Center3.5inch Touch Screen IP Camera /Analog Camera CCTV Tester With Video Record, WIFI 12V 1A Output
Related Products
-
New Design 5" HD LCD Ptz KeyboardUS$ 123.00 - 123.00MOQ: 1 Piece -
New Design 5" HD LCD Universal Remote ControllerUS$ 123.00 - 123.00MOQ: 1 Piece
-
Professional 5 LCD Plug and Play Cctv 3d Keyboard ControllerUS$ 123.00 - 123.00MOQ: 1 Piece
-
Brand New 5" HD LCD Cctv Keyboard ControllerUS$ 123.00 - 123.00MOQ: 1 Piece
-
Hot Selling 5" HD LCD Camera RemoteUS$ 123.00 - 123.00MOQ: 1 Piece
Function:
1. Capacity touch screen 3.5 inch wide angle screen display ,480(RGB)*320 resolution NEW
2. Wrist designer ,easy to carry and operate NEW
3. Apps folder
4. Combine touch screen and key button
5. Built in WIFI, can receive image from wireless camera NEW
6. Display IP camera’s image by its genuine resolution, support 1080P
7. Compatible with more than 80 camera models test, such as Dahua, HIKVISION, and ACTI
8. Support Mobile apps of the IP camera
9. IP camera image display, Video record and snapshot NEW
10. ONVIF PTZ control
11. Support 1080P HD video and MKA /MP4/media files play
12. Analog camera image display, PTZ control, 4x zoom the image, video record
13. PING, IP address scan, Port finder r etc
14. DC12V 1A power output NEW
15. Audio in test
16. App tools (Calculator, Media Player etc)
17. Support customers self update software
18. Lithium Ion Polymer Battery, working time lasts 8 hours
Specification:
Model |
IPC tester ET-IPC160 |
Screen display |
Capacity touch screen 3.5 inch touch screen display ,480(RGB)*320 resolution |
Network port |
10/100M auto-adapt,RJ45 |
WIFI |
Built in WIFI, rate 150M,receive the image from the IP camera |
IP camera test |
ONVIF,ONVIF PTZ, Dahua IPC-HFW2100P, Hikvision DS-2CD864-E13, Samsung SNZ-5200, Tiandy TD-NC9200S2, Kodak IPC120L, Honeywell HICC-2300T, customizable acceptable |
IP discovery |
auto-scan the whole network segment camera IP |
Rapid ONVIF |
search camera quickly, auto log in and display image from the camera, activate Hikvision camera |
Video IN |
1channel Video BNC IN,PAL/NTSC |
Zoom image |
Analog camera image 4xzoom ,and IP camera image 4xzoom and move |
Snapshot, video record and playback |
Capture the video image displayed and save as a JPEG file. The recorded files can play directly via Media player or under the function of “Playback”. |
DC 12Vpower output |
Output DC12V1A power for camera |
Audio test |
1 channel audio signal input, test whether the sound normal, can save the record |
PTZ control |
Support RS485 control,rate 600-115200bps |
Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc. | |
Data monitor |
Captures and analyzes the command data from controlling device (RS185) |
Network test |
IP address scan, link monitor, Ping. Find out the connected IP camera or the other network equipment IP address quickly |
Power | |
Power Adapter |
DC 5V(1.5A) |
Battery |
Built-in 3.7V Lithium polymer battery ,3000mAh |
Rechargeable |
After charging 3-4 hour, working time lasts 8 hours |
Parameter | |
Operation setting |
English/Chinese and other languages can choose |
Auto off |
5-30 (mins) |
General | |
Working Temperature |
-10℃---+50℃ |
Working Humidity |
30%-90% |
Dimension/Weight |
115mm x 75mm x 33mm / 300g |
