CCTV 1080P Real time 2 Megapixel IR Waterproof IP CMOS monitoring go pro camera specifications

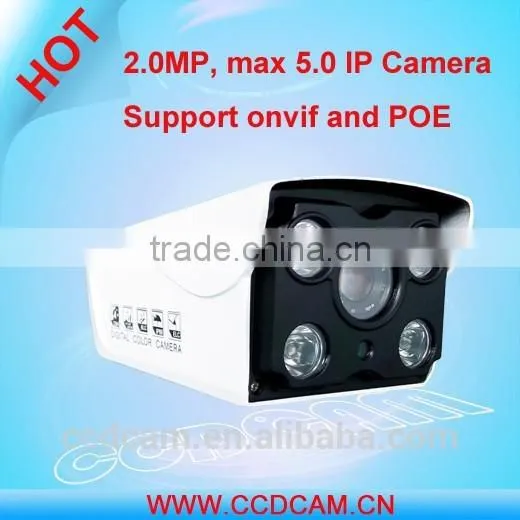

2MP Real time IR Waterproof IP Camera
>1080P(1920×1080)*25/30fps,MAX5M/10fps,3mp/17fps
>H.264 Dual-stream, support ONVIF, POE
>8mm 3Megapixel Lens
>4pcs array led , IR range:70m
>Water resistance: IP66
| Model | EC-IP58H4P | |
| Camera Type | 1080P HD IP camera with POE | |
| Camera | Image Sensor | 1/3 inch 1.3 Megapixel Low lux CMOS Sensor |
| DSP | TI DSP 32 dual-core , pure hardware compression | |
| IR-LED | 4pcs High Quality Array Leds | |
| Illuminate Distance | 70m | |
| Day/Night | IR-CUT filter | |
| Min.Illumination | Color 0.6Lux/F1.2,B/W 0.08 Lux/F1.2 | |
| Electronic Shutter | 1/50(1/60)s-1/100,000s | |
| Lens | Standard 8mm Megapixel Lens | |
| Lens Mount | CS Mount | |
| Digital Zoom | 10X Digital Zoom | |
| Video | Compression standard | H.264 ONVIF |
| Compression technology | Dual-stream compression technology | |
| Video frames | Real-time PAL 25fps,NTSC 30fps 1-30fpsAdjustable | |
| output bit rate | 32Kbps~8000Kbps Adjustable | |
| Audio coding standard | AAC Codec standard | |
| Image | Resolution | Main Stream: 1280×960 25fps/30fps Real-time, |
| Sub Stream:320×240@30F,352×192,320×192, | ||
| 288×192,256×192; | ||
| parameter settings | Brightness, contrast, chroma saturation,Image Quality Level | |
| Network | protocol |
RTSP ,FTP,PPPoE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP, UPNP,SMTP,SIP,DDNS,DNS |
| Alarm |
Support Motion Detection, Linkage Alarm, Linkage recording, sensor trigger alarm functions |
|
| Privacy Mask | Support | |
| WIFI | Support WIFI 802.11bgn,WCMA 3G wireless networks | |
| Interface | Audio Input | 1CH input,Support the pickup input |
| Audio output | 1CH output,Support the headset or amplifier | |
| USB Interface | U disk storage | |
| Video output | 1CH Video output,Support CVBS standard,PAL/NTSC Optional | |
| Network interface | RJ45 10M/100 MEthernet port | |
| Other | Work environment | -10℃~60℃ 90%RH |
| Power supply | DC 12V/2.0A,Optional POE Remote power supply | |
| Waterproof Criterion | IP66 | |
| Package Size | 27X18X16CM | |
| Gross weight | 1.42KG | |
| Note : If you need USB and Audio functions, please consult with us. | ||

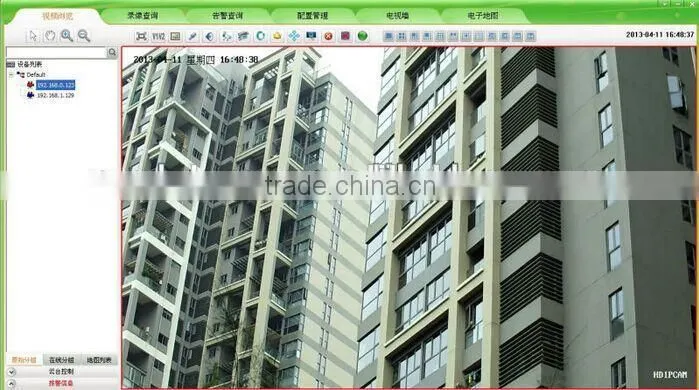

DEMO:

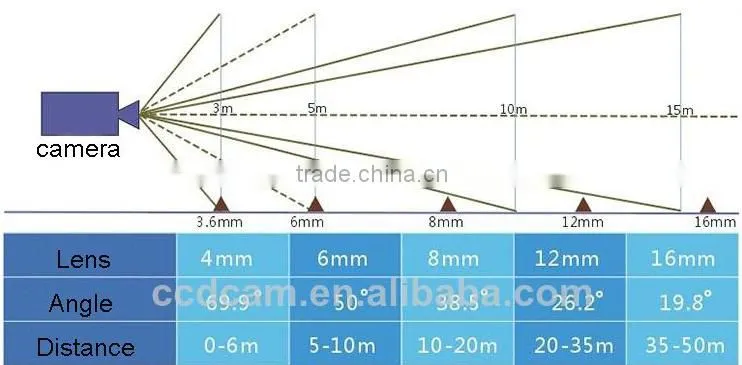

About Lens:

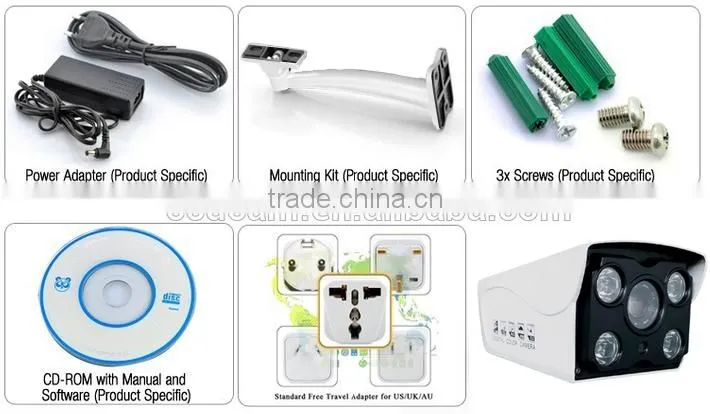

Packaging:
Our Aging Test:
And Our Waterproof Test:
Certificate:
Our advantages:
1. Good quality products and low factory direct price
2. Free technical support and professional advice all the time
3. Best sales team, timely communication and after-sale service
4. 24-hours aging test
5. Two years warranty period, CE/FCC/Rohs passed
6. High quality ,fashion designs ,reasonable and competitive price ,fast lead time .
7. OEM/ODM service
1)customized camera housing
2)print logo on the camera
3)Any your idea on camera we can help you design and put it into production .
8.Fast delivery
Samples order in stock ,and 3-7 days for bulk production
