2MP 15fps
3518E V200+0803
Lens;IR-cut;
Audio network Cable;

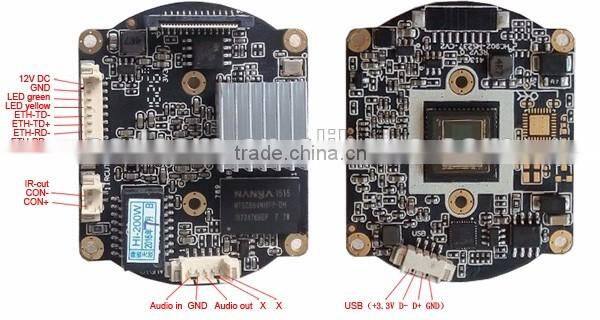

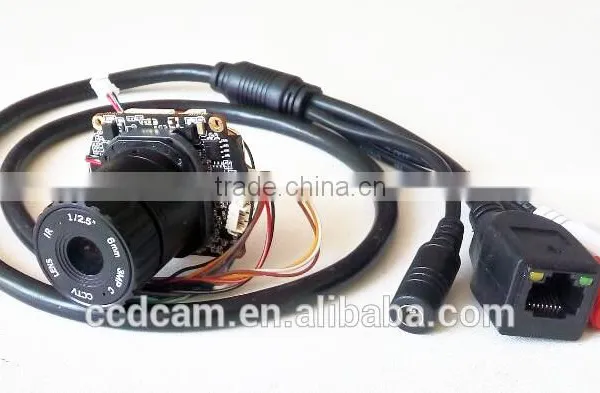

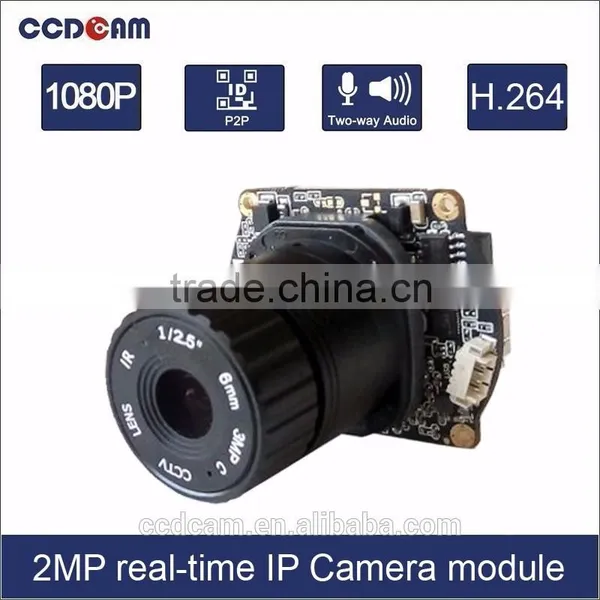

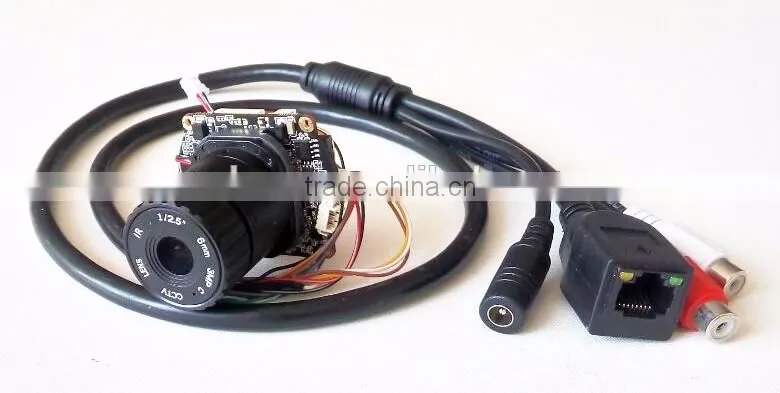

Single board module

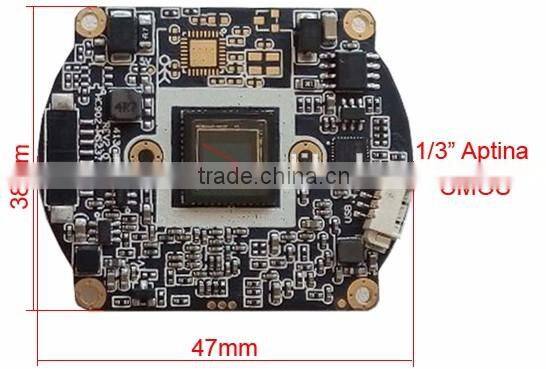

Single 38*38mm 2MP IP module;
1/3" CMOS sensor 0803;
Hisilicon 3518EV200 processor;
support H.264,MJPEG output;
2MP 1920*1080@15fps;
960P 1280*960@25fps;

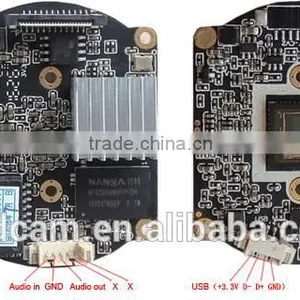

with two-way audio interface;
6mm 1/2.5" CS lens;
| Model | IPB200B | ||
| Module Type | 2MP IP camera Module | ||
| Module | Image Sensor | 1/3 inch 2.0MP AR0237 | |
| Effective Pixels | 1920(H)x1080(V) | ||
| DSP | Hisilicon 3516CV200 | ||
| Day/Night | IR-cut | ||
| Min.Illumination | Color 0.1Lux/F1.2; B/W 0.02Lux/F1.2 | ||
| Electronic Shutter | 1s-1/100,000s | ||
| Lens | 6mm CS Lens | ||
| Lens Mount | CS Mount | ||
| Compression | Compression standard | H.264 / MJPEG | |
| Video frames | Real-time 1-25fps Adjustable | ||
| Video stream output | Support adjustable stream 0.1M ~ 10Mpbs | ||
| Image | Quality | AWB, AGC, BLC,HDR up to 80dB | |
| Resolution | Main Stream: Real-time,1920×1080@25fps | ||
| Sub Stream:640×360,352×288,320×180(0~25fps) | |||

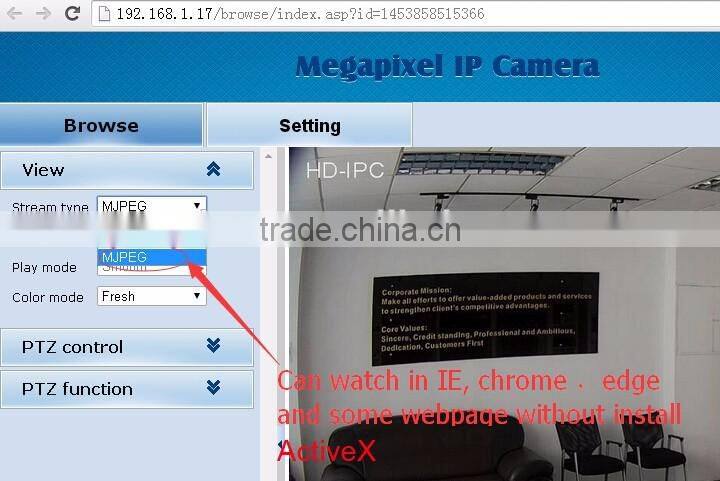

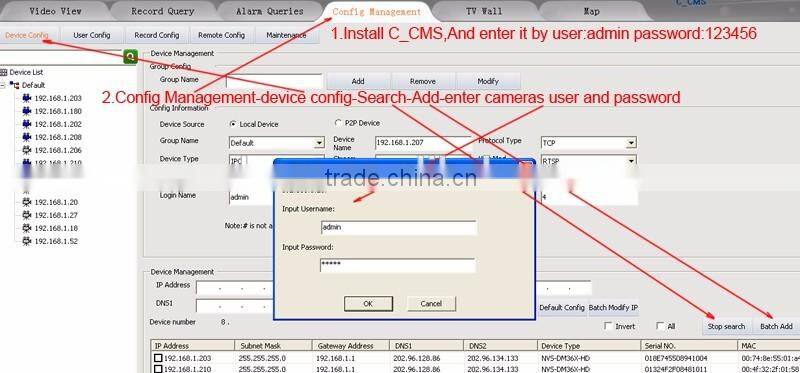

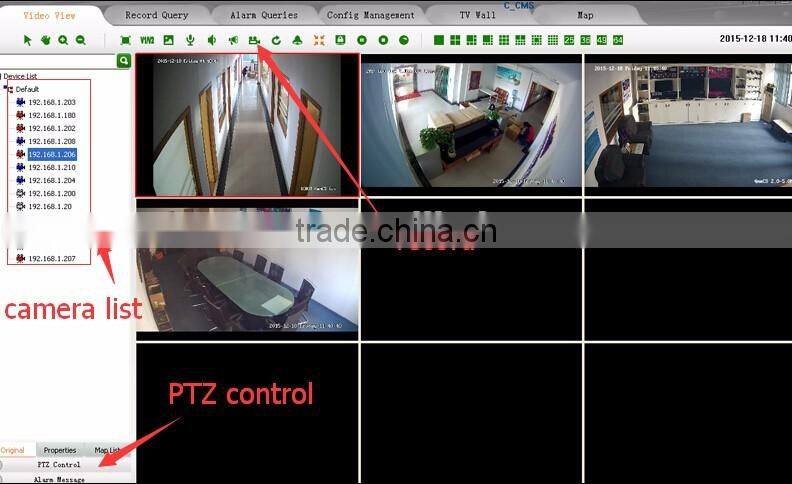

| Network | Parameter settings | WEB configure and OSD supported, | |
| Transmission ;Motion detection | |||

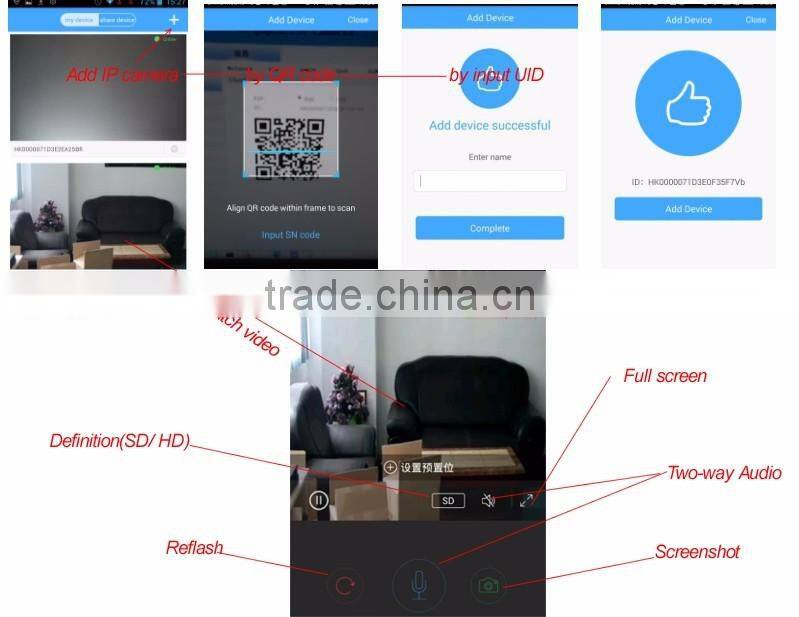

| Protocol | Onvif/PPPOE/DHCP/DDNS/P2P/HTTP | ||
| Intelligent Alarm | Support Motion Detection, Linkage Alarm, Linkage recording, | ||
| Sensor trigger alarm functions | |||
| Privacy Mask | Support 4 area can be set | ||
| Basic | Anti-flicker, Dual stream, Password protection | ||
| Interface | Video output | RJ45 | |
| Power | DC jack : 12V | ||
| Network interface | RJ45 10M/100 MEthernet port | ||
| Audio | G.711 1ch input + 1ch output | ||
| Other | Work environment | -10℃~60℃90%RH | |
| If you need POE module please consult with us. | |||
Packing list:
>" href="http://ccdcam.en.china.cn/" target="_blank">more porduct >>
1. Good quality products and low factory direct price
2. Free technical support and professional advice,timely communication and after-sale service
3. 24-hours aging test,two years warranty period, CE/FCC/Rohs passed
4. OEM/ODM service
1)customized camera housing
2)print logo on the camera
3)Any your idea on camera we can help you design and put it into production .
5.Fast delivery , 3-7 days for production
6.Accept paypal, tt, western union payment.
7. Delivery by DHL, EMS, Fedex, air, sea etc.
