Home > Security & Protection > Surveillance, Control & Protection > Monitoring System & Software > 4CH 960P Outdoor Night Vision P2P Onvif H264 WIFI NVR KIT 1.3MP Wireless Network Camera IP

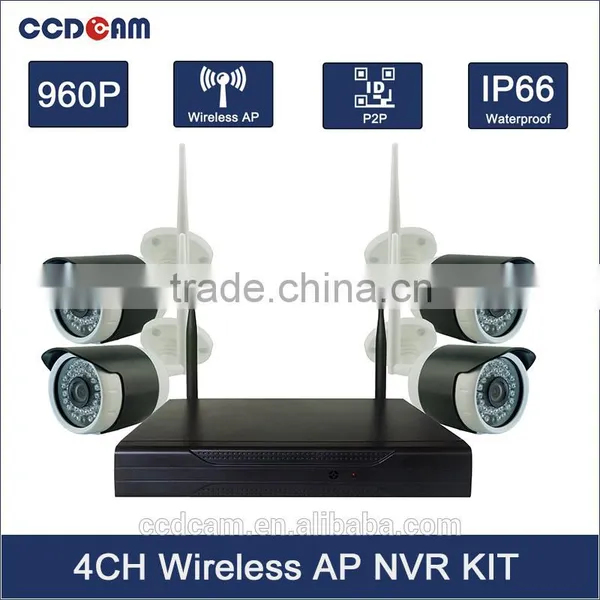

4CH 960P Outdoor Night Vision P2P Onvif H264 WIFI NVR KIT 1.3MP Wireless Network Camera IP
US$ 148.00 - 148.00
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CCDCM
Model Number:
NKIT8134W
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cheap 4CH 960P Wireless IP Camera 1.3MP Outdoor Night Vision P2P Onvif H264 WIFI NVR KitUS$ 148.00 - 148.00MOQ: 1 Piece -
Plastic Dome Day Night Vision CMOS 1000TVL Cctv CameraUS$ 12 - 14MOQ: 10 Pieces
-
EC-IP2521W Alarm System P2p Webcam Camera ipUS$ 30 - 60MOQ: 1 Piece
-
EC-IP2521W Home Alarm System Wireless ip CameraUS$ 30 - 60MOQ: 1 Piece
-
EC-IP2521W CCTV Camera System Mobile Watch Wireless CameraUS$ 30 - 60MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
CCDCM
Model Number
NKIT8134W
Cameras features:
4* 960P WIFI Camera
1/3 inch 1 Megapixel CMOS sensor
High resolution : 1280*960
NVR Features:
Support embedded Linux OS
Wireless AP NVR, set up without WIFI router
Private protocol, install without setting
Support 1*2.5 inch HDD. max 4TB.
| NKIT8134W | ||
| WIFI NVR | ||
| Support embedded Linux OS | ||
| Built-in Wireless AP,install without WIFI router | ||
| 2.4G All wireless Transfer video avoid from wiring problems | ||
| Support HDMI,VGA Sync 1080P video output | ||
| Support HD preview, all channels support Main stream | ||
| Support Zoom function of preview | ||
| Support event,playback,backup recording ,support picture playback and search | ||
| Support One-key setup and recording | ||
| System | ||
| Main processor | High performance embedded microprocessor | |
| Operating system | Embedded LINUX OS | |
| Video spec. | ||
| Video compression format | H.264 | |
| Display Image Resolution | 960P/720P 1~30FPS | |
| Playback Image Resolution | 960P/720P 1~30FPS | |
| Motion Detection | can setup 396(22×18)pcs motion detection area | |
| each channeland multi-level sensitivity(0-100 levels adjustable) | ||
| Recording Mode | ||
| Recording Mode | Manual Recording,Time Recording,Motion Recording | |
| Recording storage | HDD,Network | |
| Frame rate | 1~30 fps | |
| Playback | Max support 4ch 960P synchronously playback | |
| Backup Mode | Support HDD,USB Flash Disk store & backup | |
| Video | ||
| Video Input | 4CH 960P IPC | |
| Video output | 1ch HDMI, 1ch VGA | |
| Other | ||
| Network |
2.4Ghz Wireless AP,10/100Mbps Ethernet port; WIFI Barrier free transport 100 Meters, |
|
| wall transfers 30 Meters | ||
| USB | 2 USB 2.0 ports | |
| HDD | support 1 SATA HDD (MAX 4TB) | |
| Power | DC12V 3A | |
| Power consumption | 16W-18W(not include HDD) | |
| 4*IP WIFI cameras | ||
| Camera Type | 960P IP Camera | |
| Camera | Image Sensor | 1/3 inch 1.3 Megapixel CMOS sensor |
| DSP | HI3518 DSP 32 dual-core , pure hardware compression | |
| IR-LED | 36 PCS IR LEDS | |
| Illuminate Distance | 30m IR distance | |
| Day/Night | IR-CUT filter | |
| Min.Illumination | Color 0.6Lux/F1.2,B/W 0.08 Lux/F1.2 | |
| Electronic Shutter | 1/50(1/60)s-1/100,000s | |
| Lens | 3.6/6mm Fixed Lens | |
| Digital Zoom | 10X Digital Zoom | |
| Video | Compression standard | H.264 |
| Compression technology | Dual-stream compression technology | |
| Video frames | Real-time PAL 25fps,NTSC 30fps 1-30fpsAdjustable | |
| output bit rate | 32Kbps~5000Kbps Adjustable | |
| Image | Resolution | Main Stream:1280×720(video resolution); |
| Sub Stream:640×360, 480×270,320×180; | ||
| Network | protocol | DHCP,TCP/IP,HTTP,UDP,DNS |
| Alarm | Support Motion Detection | |
| Privacy Mask | Support | |
| Vedio port | Video output | 1CH Video output,RJ45/WIFI,PAL/NTSC Optional |
| Network interface | RJ4510M/100M Ethernet port /WIFI 2.4GHz | |
| Other | Power supply | DC 12V |
| Waterproof Criterion | IP66 | |
| KITS | ||
| Pcaking list | Wireless AP NVR*1pcs; Power for NVR*1; 1MP WIFI camera*4pcs; | |
| Power for camera*4pcs; CD*1pcs; mouse*1pcs | ||
| Work environment | -10℃~60℃90%RH | |
| Package Size | ||
| Net Weight | ||
1.Use via NVR

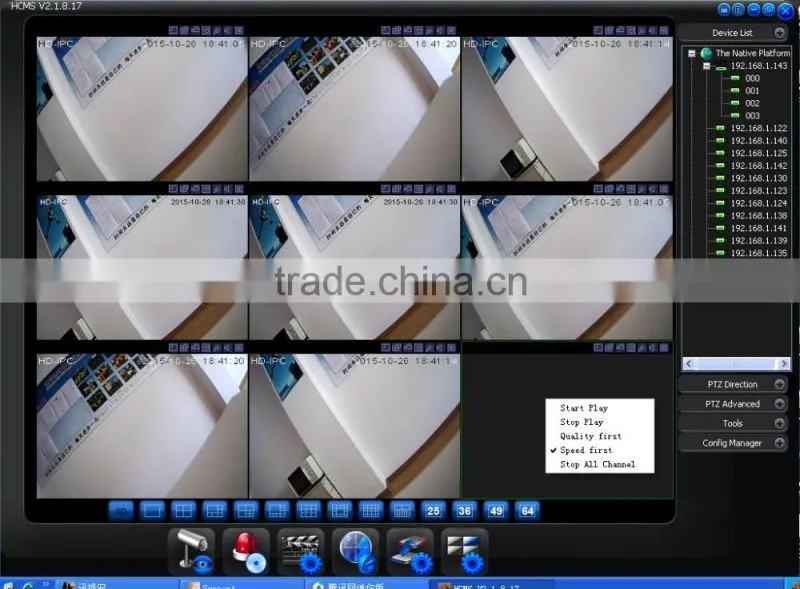

2.Use via Software
3.Use via Phone APP
How to install?
IP CAMERA
Packing
Lens
About Factory
Exhibition
Our Company
Other Sevice
1. Good quality products and low factory direct price
2. Free technical support and professional advice,timely communication and after-sale service
3. 24-hours aging test,two years warranty period, CE/FCC/Rohs passed
4. OEM/ODM service
1)customized camera housing
2)print logo on the camera
3)Any your idea on camera we can help you design and put it into production .
5.Fast delivery , 3-7 days for production
6.Accept paypal, tt, western union payment.
7. Delivery by DHL, EMS, Fedex, air, sea etc.
Cetificate
