Cameras features:
3pcs 4MP WIFI Camera
1pcs 2MP WIFI Camera
1/3 inch 4 Megapixel CMOS OV4689 sensor
High resolution : 1920*1080 / 2592*1520

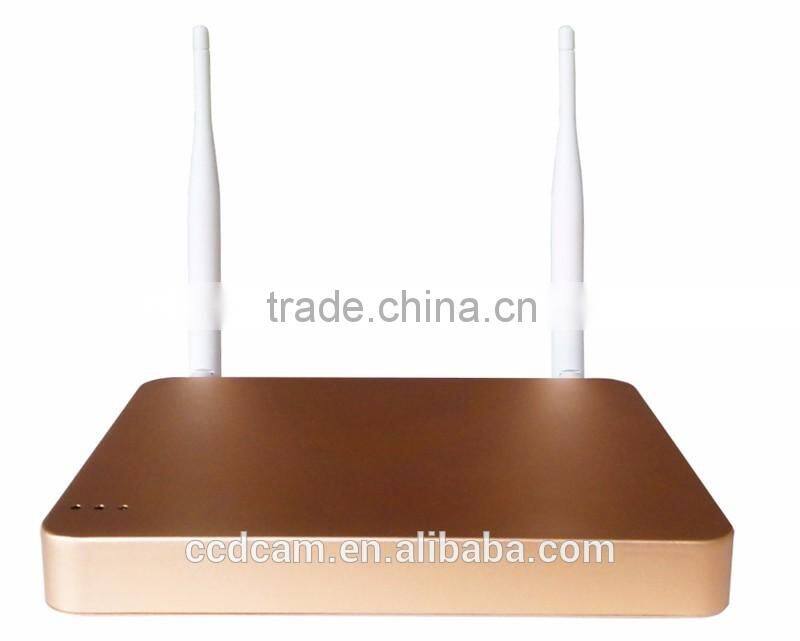

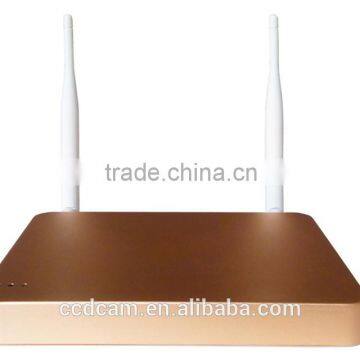

AP NVRres:
Support embedded Linux OS
Wireless AP NVR, set up without WIFI router

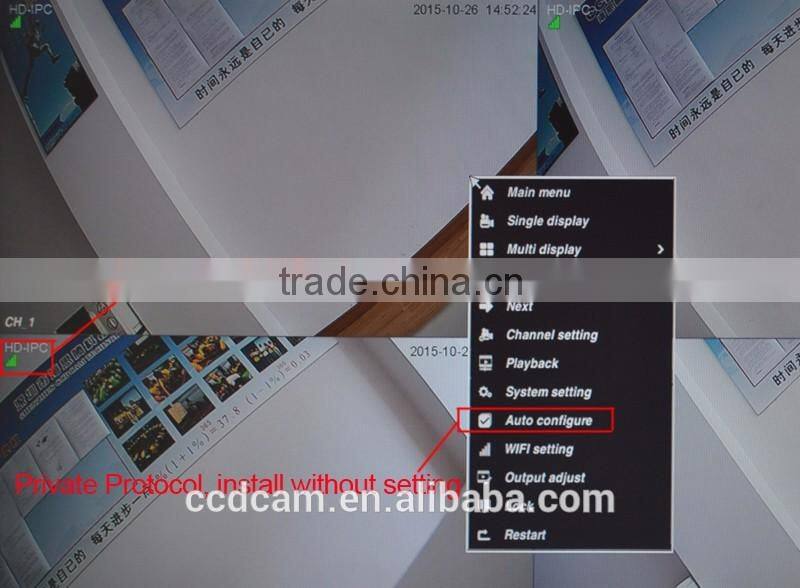

Private protocol, install without setting
Support 1*2.5 inch HDD. max 4TB.

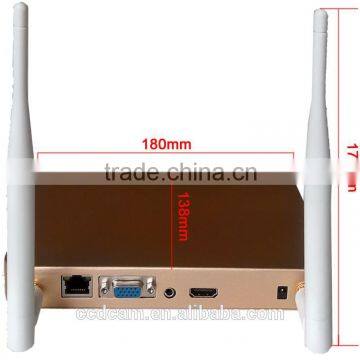

| NKIT8404WG | ||
| WIFI NVR | ||
| Support embedded Linux OS | ||
| Built-in Wireless AP,install without WIFI router | ||
| 2.4G All wireless Transfer video avoid from wiring problems | ||
| Support HDMI,VGA Sync 1080P video output | ||
| Support HD preview, all channels support Main stream | ||
| Support Zoom function of preview | ||
|
Support event,playback,backup recording , support picture playback and search | ||
| Support One-key setup and recording | ||
| System | ||
| Main processor | High performance embedded microprocessor | |
| Operating system | Embedded LINUX OS | |
| Video spec. | ||

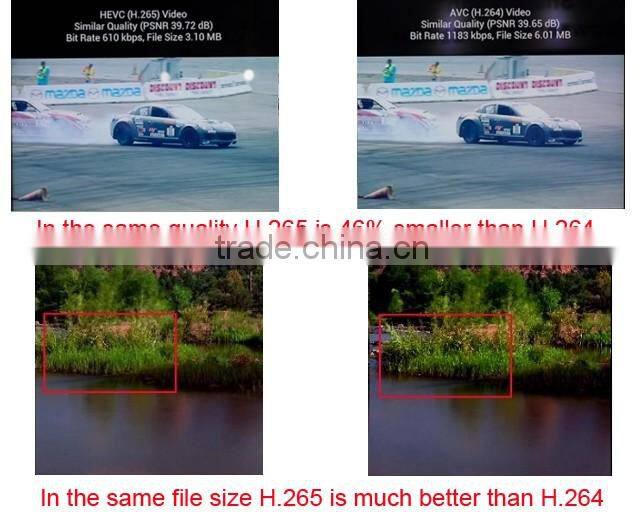

| Video compression format | H.265 | |
| Display Image Resolution | 4MP/2MP 1~30FPS | |
| Playback Image Resolution | 4MP/2MP 1~30FPS | |
| Motion Detection | can setup 396(22×18)pcs motion detection area | |
|
each channeland multi-level sensitivity (0-100 levels adjustable) | ||
| Recording Mode | ||
| Recording Mode | Manual Recording,Time Recording,Motion Recording | |
| Recording storage | HDD,Network | |
| Frame rate | 1~30 fps | |
| Playback | Max support 4ch 960P synchronously playback | |
| Backup Mode | Support HDD,USB Flash Disk store & backup | |
| Video | ||
| Video Input | 1CH 1080P IPC +3CH 4MP | |
| Video output | 1ch HDMI, 1ch VGA | |
| Other | ||
| Network |
2.4Ghz Wireless AP,10/100Mbps Ethernet port; WIFI Barrier free transport 100 Meters, wall transfers 30 Meters |
|
| USB | 2 USB 2.0 ports | |
| HDD | support 1 SATA 2.5 inch HDD. (MAX 4TB) | |
| Power | DC 5V 2A | |
| Power consumption | 16W-18W(not include HDD) | |

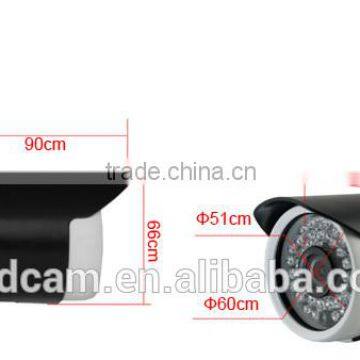

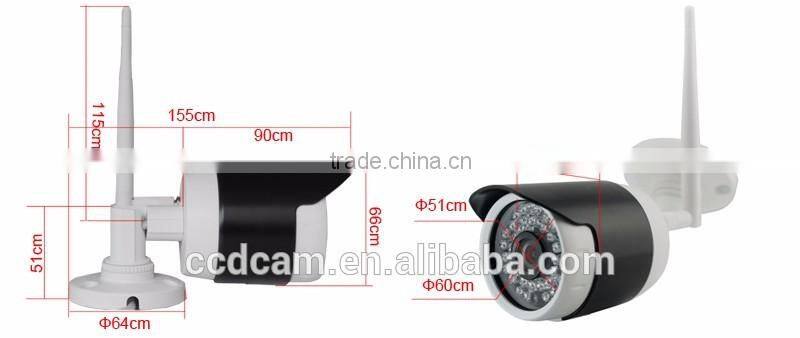

| 4*H.265 IP WIFI cameras | ||
| Camera Type |
1pcs 1080P 3pcs 4MP IP Camera |
|

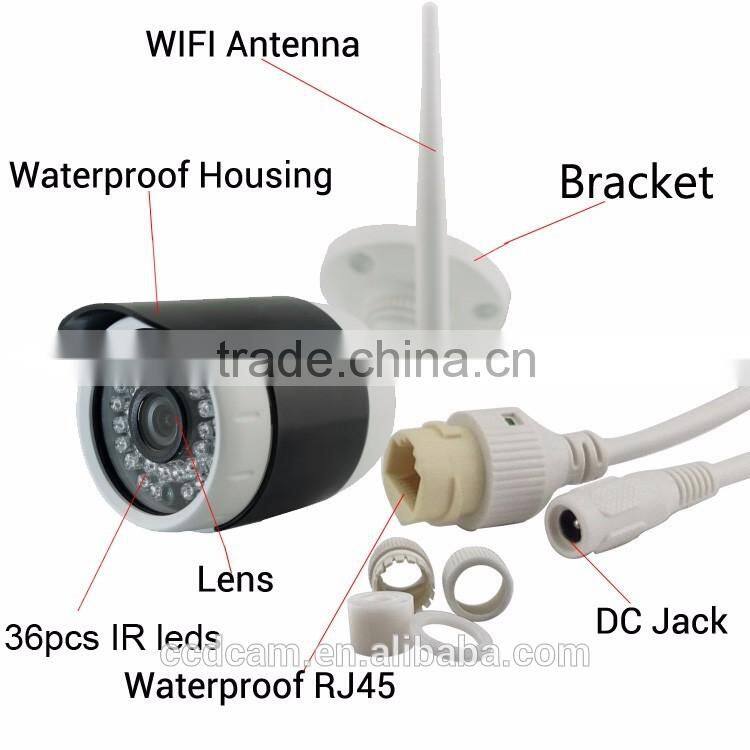

| Camera | Image Sensor |
1/3 inch 4 Megapixel CMOS OV4689 sensor |
| DSP | HI3516D | |
| IR-LED | 36 PCS IR LEDS | |
| Illuminate Distance | 30m IR distance | |
| Day/Night | IR-CUT filter | |
| Min.Illumination | Color 0.05Lux/F1.2,B/W 0.01 Lux/F1.2 | |
| Electronic Shutter | 1/50(1/60)s-1/100,000s | |
| Lens | 3.6/6mm Fixed Lens | |
| Digital Zoom | 10X Digital Zoom | |
| Video | Compression standard | H.264/H.265/MJPEG |
| Compression technology | Dual-stream compression technology | |
| Video frames |
Real-time PAL 25fps, NTSC 30fps 1-30fpsAdjustable |
|
| output bit rate | 32Kbps~5000Kbps Adjustable | |
| Image | Resolution | Main Stream:2592×1520/1920×1080 |
| (video resolution); | ||
|
Sub Stream:640×360, 480×270,320×180; | ||
| Network | protocol | DHCP,TCP/IP,HTTP,UDP,DNS |
| Alarm | Support Motion Detection | |
| Privacy Mask | Support | |
| Vedio port | Video output |
1CH Video output,RJ45/WIFI, PAL/NTSC Optional |
| Network interface |
RJ4510M/100M Ethernet port WIFI 2.4GHz |
|
| Other | Power supply | DC 12V |
| Waterproof Criterion | IP66 | |
| KITS | ||
| Pcaking list |
Wireless AP NVR*1pcs; Power for NVR*1; 4MP WIFI camera*3pcs;1MPWIFI camera*1pcs; Power for camera*4pcs; CD*1pcs; mouse*1pcs |
|
| Work environment | -10℃~60℃90%RH | |
| Package Size | ||
| Net Weight | ||

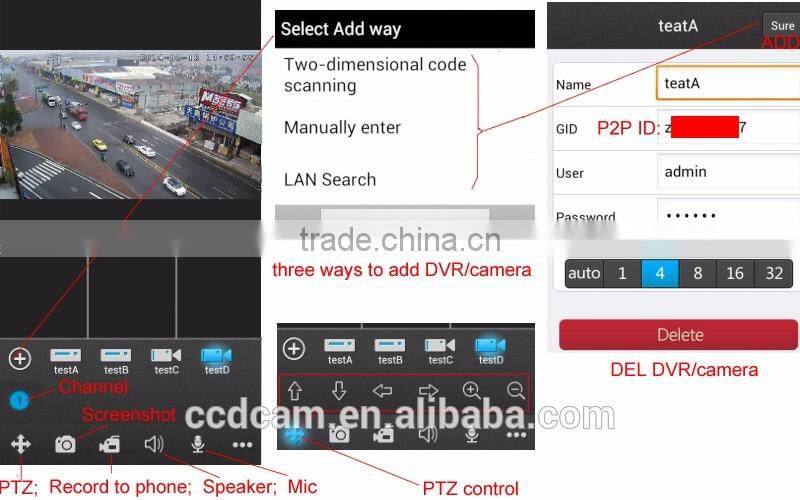

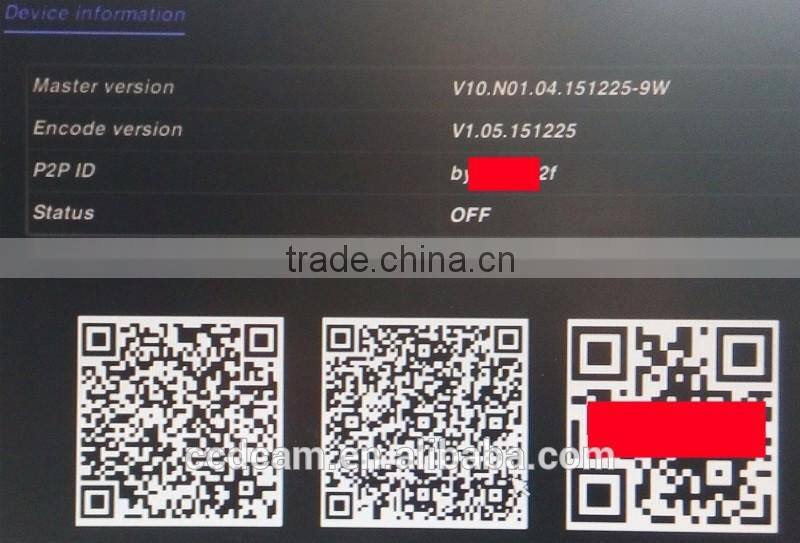

Use via Phone APP

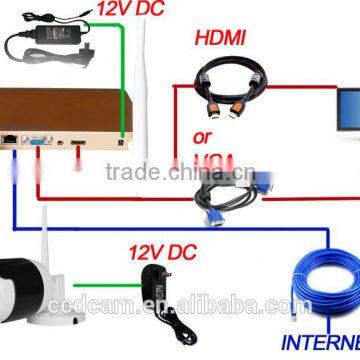

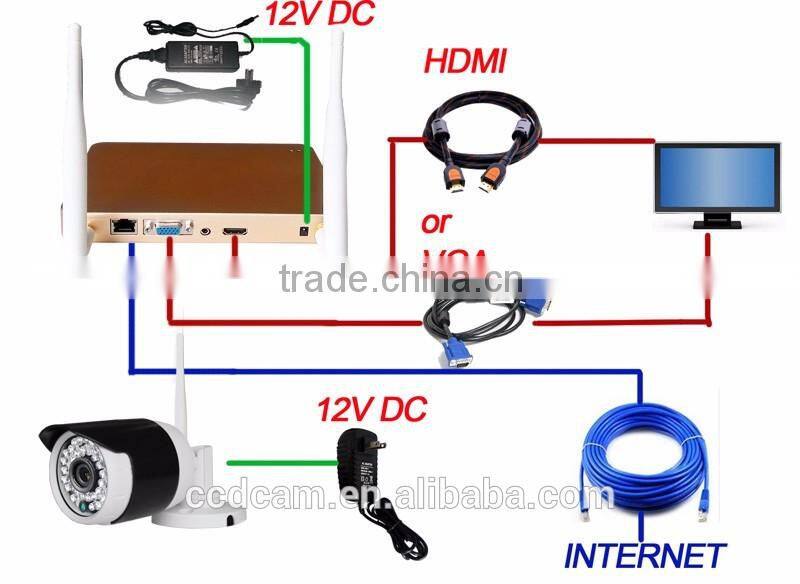

How to install?
| 4CH Mini Golden Wireless AP NVR | 1pcs |
| CD | 1pcs |
| Mouse | 1pcs |
| Power for DVR | 1pcs |
| 4MP WIFI camera | 3pcs |
| 2MP WIFI camera | 1pcs |
| Power for cameras | 4pcs |
Cetificate
