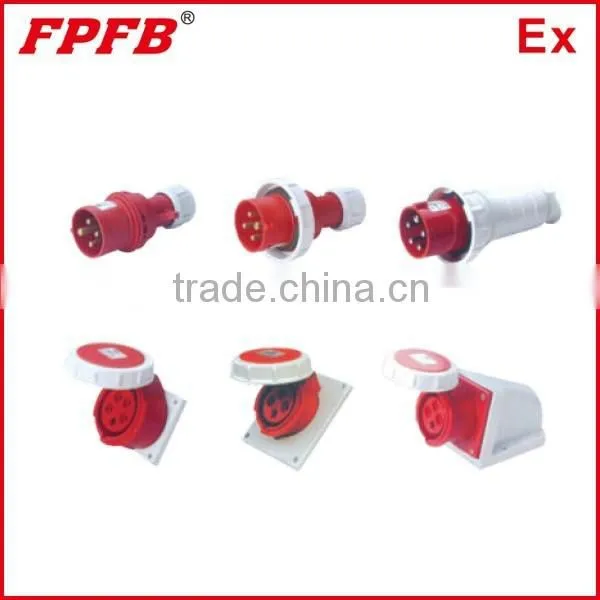

FAC water proof dust proof corrosion proof bolt ex plug and socket
1. Can be used in hazardous areas: Zone 1 and Zone 2 .
2. Can be used in explosive gas atmospheres of Category II B and II C where the temperature classification is T1-T6.
3. Hazardous zone : 20. 21. and 22
4. Flammable dust atmosphere.
5. widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.
Voltage |
RATED CURRENT |
INLET thread |
Application temperature |
structure type |
Degree of protection |
Erosionproofclass |
cableouterline (mm) |
AC220V/380V |
16A,32A,63A |
G3/4"~G11/4" |
-25℃~55℃ |
Z:Straight X:lean |
IP65 |
WF2
|
Φ9mm~Φ28mm |
APPlications:
- Ambient temperature:-25℃~55℃.
- Altitude:≤2000m.
- Can withstand the corrosion of acid, alkali, salt, ammonia, chlorine. They apply to washy, dusty and humidity environment.
- Widely used in the lines of peroleum, chemistry, dock, food, medicine, warindustry and so on.
- Used to turn on or off the circuit, mainly suitable for mobile device.
- Various current ratings and installation types are available.

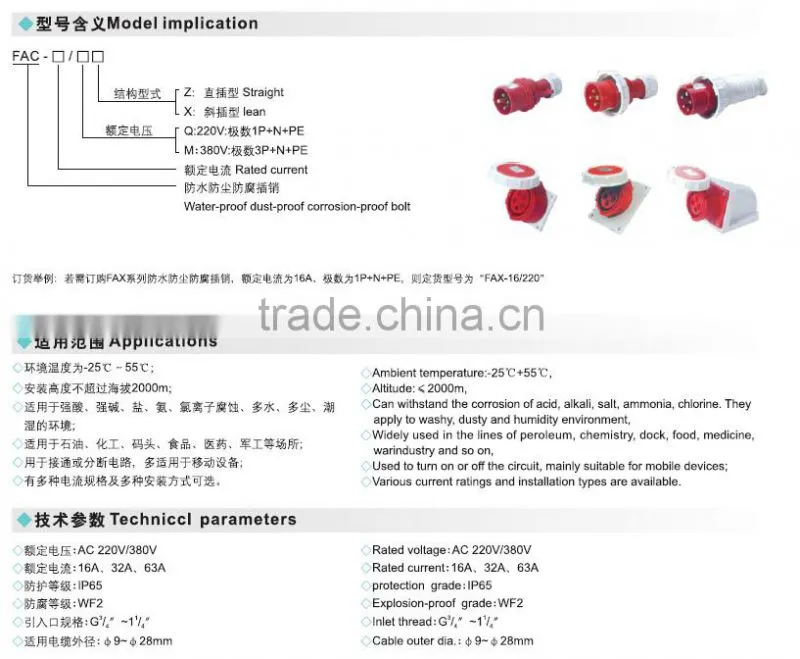

Techinical parameters:
- Rated voltage: AC220/380V
- Rated current: 16A,32A,63A
- Protection grade: IP65
- corrosion-proof grade:WF2
- Inlet thread: G3/4"~G11/4"
- Cable outer dia:Φ9mm~Φ28mm
Product Features:
- Engineering plastic Glas reinforced polyester enclosure, with the elegant shape, corrosion resistance, static, electricity, resistance, impact resistance and good thermal reliability.
- Have greater function of resisting the acid, salt and alkli, and its corrosion-proof grade is WF2.
- Exposed fasteners of stainless steel material, and the sealing elements are made of silica, with
- good oil, acid, alkali-resistance and anti-aging.
- The product has labyrinth seal structure; with high performance of water-proof and dust-proof, the protection grade is IP65.
- cable wiring.
Feipu Explosion-proof Electric Co., Ltd. is an advanced electrical solution provider for hazardous areas of zone1, zone 2, and zone 20, zone 21, zone 22.
We have wide range explosion proof products of lamp & light fixtures, electrical equipments, and box & fittings. And excellent company crew of R&D, marketing and artificers that has abundant experience in both Chinese domestic market and overseas markets.
Our products and projects occur in various occasions of petroleum, chemical, military and workshop across the world.
We care the most of quality and stability of our products, as well as efficient communication and positive service to our customers and partners.
Dear Customers,
Welcome to visit FPFB online marketing display.
To serve you in a better and efficient way, please browse our products and contact us with following information.
1. Where is the occasion products will be used, petroleum refinery, chemical factory or industrial workshop?
2. What is the purpose from products? Routine illumination, field illumination, platform lighting, emergency or portable.
3. Your preference on light source, power and installation methods etc.
We will offer our best products and prices according to your actual demand.
Sincerely yours,
FPFB sales team.
1. What is our advantage in the industry?
Our main advantage is high performance price ratio of our products, and positive service to our customers and partners.
Our products are not the top grade of quality in the industry, and our prices are not the lowest as well, but the performance price ratio of our products is outstanding.
2. What is our sales and distribution policy?
We welcome all kinds of business cooperation methods, including region distributors, new market agencies, project & bid buyers, and end user procurement.
3. Do you have warranty policy?
We offer at least 2 year-warranty for our products, longer warranty for certian products, and full lifespan aftersales service.
1. Standard export packing or customized packing available.
2. Shipping arrangement according to buyers request.
