Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | FPFB | Model Number: | SW-10 |
| Protection Level: | IP54,IP65 | Max. Current: | 10A | Max. Voltage: | 220V |
Product Description
2014 New Type Explosion proof lighting switch
1. Can be used in hazardous areas: Zone 1 and Zone 2 .
2. Can be used in explosive gas atmospheres of Category IIA and II B IIC where the temperature classification is T1-T6.
3. Steel conduit or cable wiring.
4. Flammable dust atmosphere.
5. widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.

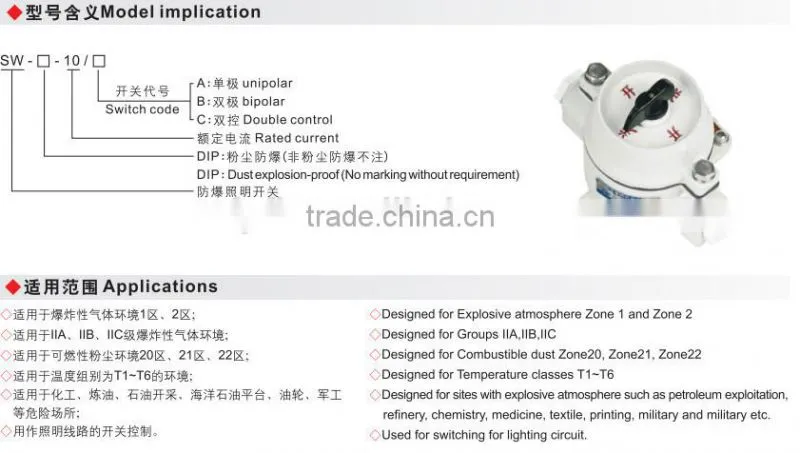

APPlications:
- Suitable for explosive gas environment Zone1 and Zone2.
- Suitable for IIA,IIB,IIC explosive gas environment.
- Suitable for Hazarous dust area: Zone20, Zone21, Zone22.
- Can be used in the environment of temperature group for T1~T6.
- Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.
- Used for Switching for lighting circuit.
Techinical parameters:
- Meet a criterion: G3B3836.1, GB3836.2, GB3836.3, GB12476.1,IEC60079
- Ex-proof Mark: Exde II BT6 Gb, DIP A21 TA, T6.
- Rated voltage: AC220V
- Protection grade:IP54,IP65
- Corrosion-proof grade:WF1
- Inlet Thread: 2-G3/4"
- Cable outer dia:9mm~14mm
Product Features:
- Aluminum alloy enclosure with high pressure electrostatic powder coated surface after shot blasted.
- Built-in combination switch with stable property.
- Special designed water resistance and dust resistance gasket.
- Convenient to maintaince and installation.
- Steel conduit and cable wiring.

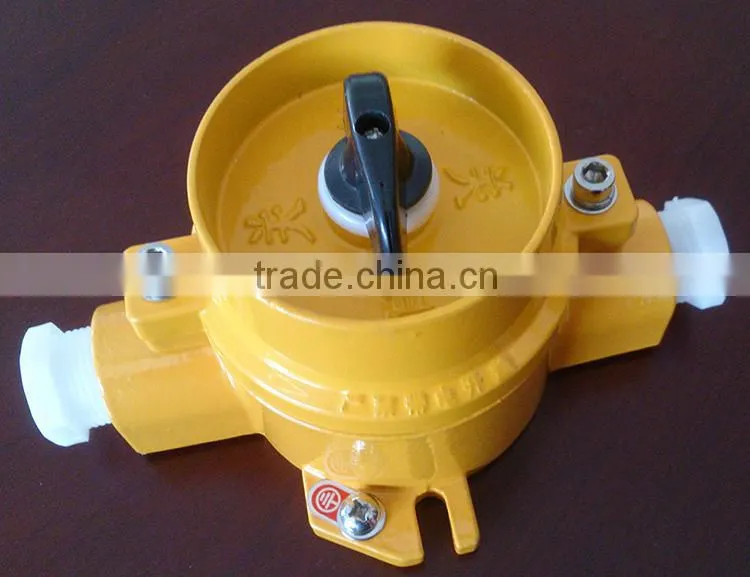

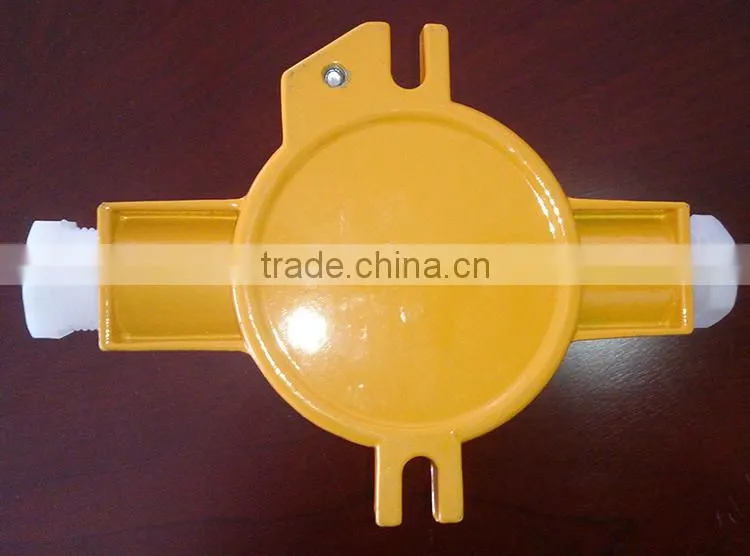

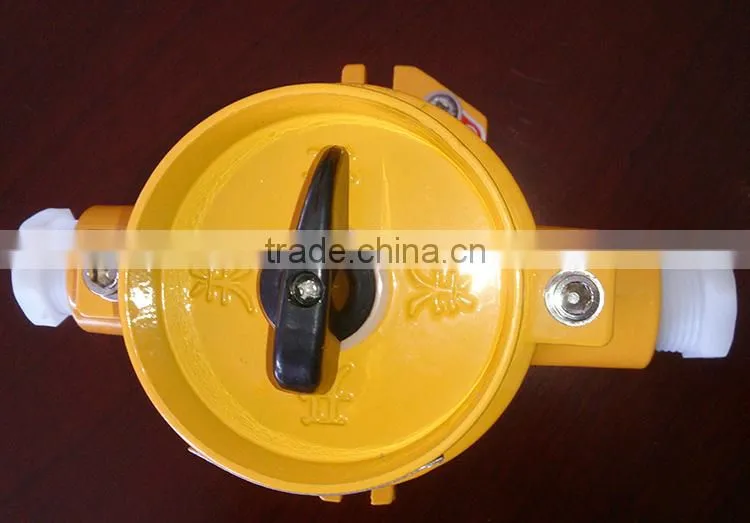

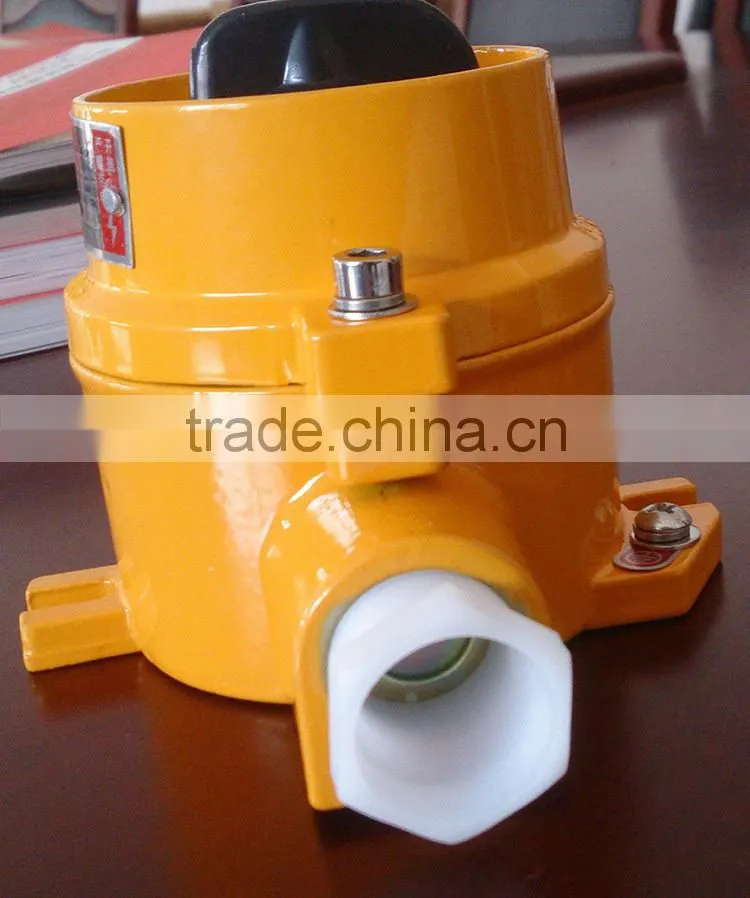

Sample pictures
Feipu Explosion-proof Electric Co., Ltd. is an advanced electrical solution provider for hazardous areas of zone1, zone 2, and zone 20, zone 21, zone 22.
We have wide range explosion proof products of lamp & light fixtures, electrical equipments, and box & fittings. And excellent company crew of R&D, marketing and artificers that has abundant experience in both Chinese domestic market and overseas markets.
Our products and projects occur in various occasions of petroleum, chemical, military and workshop across the world.
We care the most of quality and stability of our products, as well as efficient communication and positive service to our customers and partners.
Dear Customers,
Welcome to visit FPFB online marketing display.
To serve you in a better and efficient way, please browse our products and contact us with following information.
1. Where is the occasion products will be used, petroleum refinery, chemical factory or industrial workshop?
2. What is the purpose from products? Routine illumination, field illumination, platform lighting, emergency or portable.
3. Your preference on light source, power and installation methods etc.
We will offer our best products and prices according to your actual demand.
Sincerely yours,
FPFB sales team.
1. What is our advantage in the industry?
Our main advantage is high performance price ratio of our products, and positive service to our customers and partners.
Our products are not the top grade of quality in the industry, and our prices are not the lowest as well, but the performance price ratio of our products is outstanding.
2. What is our sales and distribution policy?
We welcome all kinds of business cooperation methods, including region distributors, new market agencies, project & bid buyers, and end user procurement.
3. Do you have warranty policy?
We offer at least 2 year-warranty for our products, longer warranty for certian products, and full lifespan aftersales service.
