fujikura fiber optic fusion splicing machine fsm-60sColor LCD
Compact design and Light weight
Fast operation time
CE,TL,ISO
fujikura fiber optic fusion splicing machine fsm-60s Characteristics:
- Core to core alignment by PAS (Profile Alignment System) technology Environmental resistant features, Environmental resistance features World's most compact and lightest of its class Arc calibration free system 4.1" TFT color LCD monitor Dual directional operation system Long life battery Fiber holder option Software upgrade via internet Detachable worktable (attached to carrying case)
fujikura fiber optic fusion splicing machine fsm-60s Application:
- Optical Fiber Fusion
fujikura fiber optic fusion splicing machine fsm-60s Brief Introduction
The FSM-60S sets another benchmark in robustness as well as reliability in splicing performance in a harsh environment. Not only history-proven Fujikura fusion splicing technology, excellent shock resistance supported by elastomer protectors and new structure design, and superior dust/rain resistance with new sealed design have been packed into the smallest package of its class. Other new features, such as FuseConnect capability creates a totally new splicing application, and Long life battery, Software upgrade via internet, Fiber holder option and Detachable work-tray offer increased flexibility to your unique splicing style.
fujikura fiber optic fusion splicing machine fsm-60s Pictures:
-

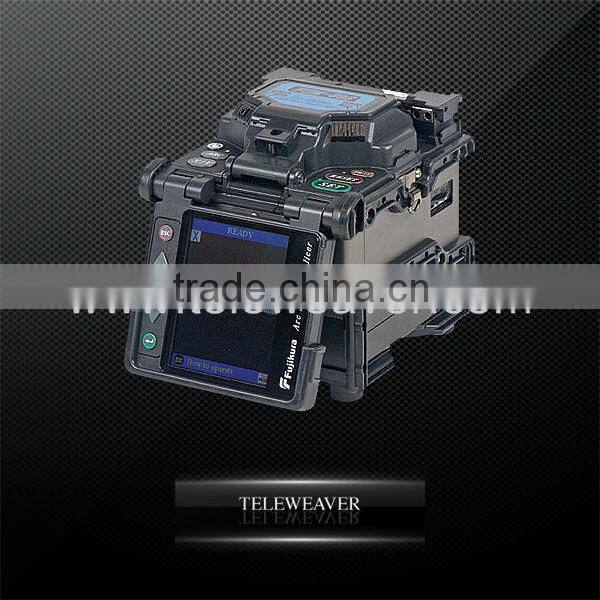

fujikura fiber optic fusion splicing machine fsm-60s
fujikura fiber optic fusion splicing machine fsm-60s Paramters:
FSM-60S |
Parameters |
Applicable type of fibers |
SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU -T G.653), NZDS(ITU-T G.655) |
and other single mode fibers including ITU-T G.657 fibers. | |
Fiber count |
Single |
Cladding diameter : 80 to 150µm | |
Fiber setting and cleaved length |
Coating diameter : 100 to 1000µm |
Sheathe clamp A (Standard) : For coating dia. up to 250mm (8 to 16mm cleave), coating dia. of over 250mm(16mm cleave) | |
Sheathe clamp B(option) : For coating dia. up to 1000mm (8 to 16mm cleave) | |
Sheathe clamp C(option) : For 900mm dia. loose tube fiber (8 to 16mm cleave) | |
Fiber holder (option) : FH-60-250, FH-60-900 (10mm cleave) | |
Splicing modes |
Total 100 modes |
Typical splice loss |
0.02dB with SM, 0.01dB with MM, 0.04dB with DS and 0.04dB with NZDS. (Measured by cut-back method relevant to ITU-T standard). |
Return loss |
>>60dB |
Splicing time |
Typical 9sec.with SM FAST, 10sec.with SM AUTO and 13sec.with AUTO modes with standard SM(ITU-T G.652). |
Splice loss estimate |
Available |
Attenuation splice function |
Intentional high splice loss of 0.1dB to 15dB ( 0.1dB step ) can be made for an in-line fixed attenuator. |
Tube heater / heating time |
Built-in tube heater with 30 heating modes. / Typical 30sec with Fujikura FP-03. |
60mm, 40mm and Fujikura FPS01 series. | |
Storage of splice result |
The last 2000 results to be stored in the internal memory. |
Tension test |
1.96 to 2.25N |
Operating condition |
0 to 5,000m above sea level, 0 to 95%RH and -10 to 50 degC and up to 15m/s wind velocity, respectively. |
Storage condition |
0 to 95%RH and -40 to 80 degC respectively. Battery : -20 to 30 degC for long term. |
Dimensions |
136W × 161D × 143H [mm] excluding rubber foot. |
Weight |
2.3kg with AC adaptor ADC-13, 2.7kg with battery BTR-08. |
Viewing method and display |
Two CMOS cameras and 4.1" color LCD monitor. |
Fiber view and magnification |
X / Y (300X magnification), or both X and Y simultaneously (187X magnification). |
Applicable voltage from 100 to 240V AC or 10 to 15V DC with ADC-13. 13.2V DC with BTR-08. | |
No.of splice cycles with battery |
Typical 160 cycles (splice / tube heat) with BTR-08. |
Electrode life |
2500 arc-discharges |
Terminals |
USB 1.1 (USB-MiniB type) connector for PC communication. |
6-pin Mini-DIN connector for HJS-02/03 or SH-8S/R/C power supply. |
Description |
Model No. |
Q'ty |
Fusion Splicer |
FSM-60S |
1pc. |
With CLAMP-S60A, ELCT2-20A and WPM-08 | ||
AC adapter / battery charger |
ADC-13 |
1pc. |
AC power cord |
ACC-XX |
1pc. |
Spare electrodes |
ELCT2-20A |
1pair |
USB cable |
USB-01 |
1pc. |
Quick reference giude |
M-60S/18S-E |
1pc. |
Video instruction manual (CD) |
V-60S-E |
1pc. |
Warning and Cautions |
W-60-E |
1pc. |
J plate |
JP-05 |
1pc. |
Carrying case |
CC-24-60S |
1pc. |
