MU Fiber Optic PigtailLow IL and High RL
High precision alignment
Various fiber optic pigtails with good price
ROHS
MU Fiber Optic Pigtail Characteristics:
- NTT-MU hardware compatibility
- NTT & JIS compliance, Compact, pull-proof design
- High precision alignment, One piece construction
- Tunable zirconia Pigtail ferrule
- Corrosion resistant body
- UL-Rated plastic housing and boot
- Universal Duplex Clip
- Low insertion loss & back reflection
MU Fiber Optic Pigtail Application:
- CATV, Video, Active Device Termination
- Premise Installations, Telecommunication Networks
- Local Area Networks (LANs), Data processing networks
- Wide Area Networks (WANs), Industrial, medical & military
MU Fiber Optic Pigtail Brief Introduction
MU Fiber Optic Pigtail features the small form design. MU Fiber Optic Pigtail uses 1.25mm pull-proof designed ferrule. For densely installation, MU Fiber Optic Pigtail is really a good choice. NTT has developed a variety of MU Fiber Optic Pigtails. We often use MU Fiber Optic Pigtail for mu fiber patch cable and mu fiber pigtail making.
The TELEWEAVER family of single-mode and multimode MU Fiber Optic Pigtail and adapters are fully intermateable with NTT-MU style products, and are NTT and JIS compliant. This small form factor Pigtail is approximately half the size of the SC Pigtail, and has a push-pull style design. The Pigtail features a pre-assembled body and precision molded plastic housing, and a free-floating ferrule measuring 1.25mm O.D. held in place with a precision spring.
Housing and boot are made from UL-rated material. The MU-J style Pigtail is the same as the regular MU Fiber Optic Pigtail, but without the outer housing, and with a very narrow, short boot for 900 micron fiber, ideal for back panel solutions and high-density situations.
TELEWEAVER MU Pigtails are available in pre-assembled (one-piece) versions or unassembled kits.
MU Fiber Optic Pigtail Pictures:
-

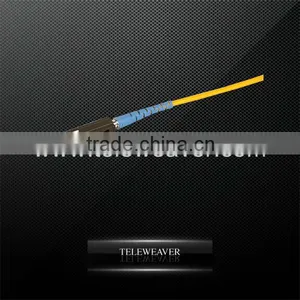

MU Fiber Optic Pigtail
MU Fiber Optic Pigtail Paramters:
|
Type Parameters |
Single-mode |
Multimode |
Pigtail Type |
MU Fiber Optic Pigtail |
|
Polishing Type |
PC |
PC |
Insertion Loss (dB) |
≤0.2 |
≤0.25 |
Return Loss (dB) |
≥45 |
N/A |
Repeatability (dB) |
IL≤0.2 RL≤5 |
IL≤0.1 |
Vibration (dB) |
IL≤0.2 dB RL≤5dB |
IL≤0.2 dB |
Exchangeability (dB) |
IL≤0.2 dB RL≤5dB |
IL≤0.2 dB |
Tensile Strength |
F200N |
|
Durability |
n=1000 |
|
Operation Temperature (°C) |
-40°C~+80°C |
|
Ferrule Material |
Zirconia Ceramic |
|
