Fused WDMLow IL and High RL
High precision
different ratios
Fused WDM Characteristics:
- Low Insertion Loss, High Isolation
- Low PDL, Good directivity
- Good environmental Stability
Fused WDM Application:
- Optical Fiber Communication Systems, CATV
- Test Equipment, Fiber Access Networks
- Optical Fiber Sensors
Fused WDM Brief Introduction
In fiber-optic communications, wavelength-division multiplexing (WDM) is a technology which multiplexesa number of optical carrier signals onto a single optical fiber by using different wavelengths (i.e. colors) of laser light. This technique enables bidirectional communications over one strand of fiber, as well as multiplication of capacity.
The term wavelength-division multiplexing is commonly applied to an optical carrier (which is typically described by its wavelength), whereas frequency-division multiplexing typically applies to a radio carrier (which is more often described by frequency). Since wavelength and frequency are tied together through a simple directly inverse relationship, the two terms actually describe the same concept.

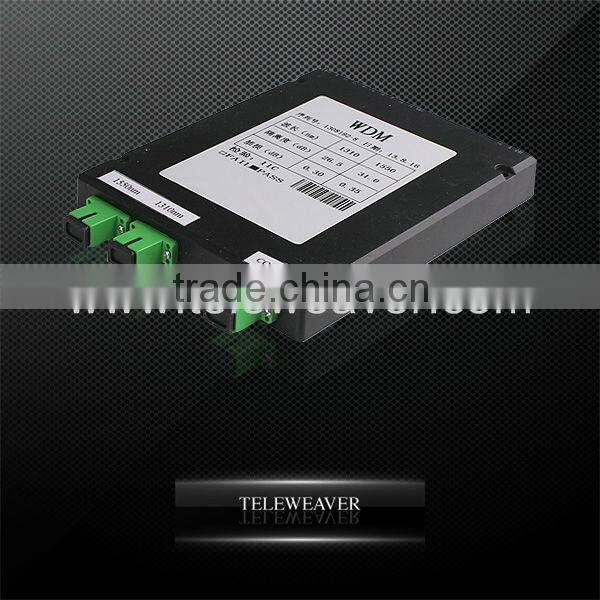

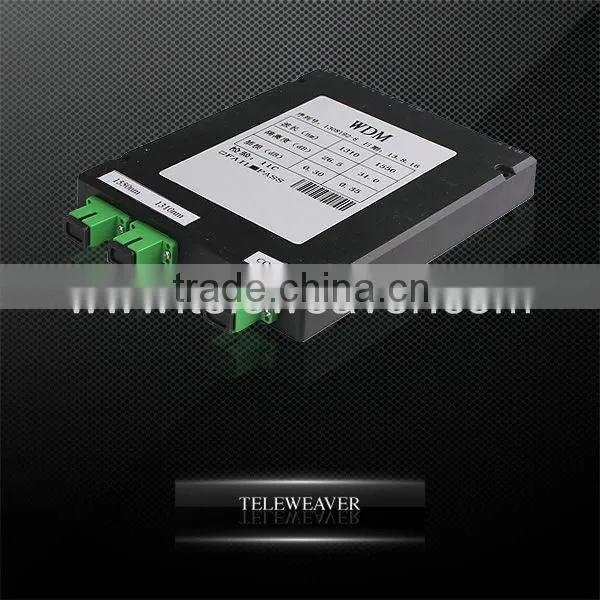

Fused WDM Pictures:
-
Fused WDM
-
Fused WDM
Fused WDM Paramters:
Type |
Multiplexer |
De-multiplexer |
||
Standard |
High Isolation |
Ultra Isolation |
||
Wavelength(nm) |
1310/1550nm |
|||
Bandwidth(nm) |
15nm |
|||
Max Insertion Loss(dB) |
0.3 |
0.3 |
0.6 |
0.9 |
Mini Wavelength Isolation(dB) |
25 |
25 |
30 |
40 |
±10nm bandwidth Typical Isolation(dB) |
23 |
23 |
37 |
45 |
Directivity(dB) |
>60(2x2) |
|||
PDL(dB) |
<0.15 |
|||
Max bearing power(mw) |
300 |
|||
Max Tensile Strength(N) |
5 |
|||
Operating Temperature(°C) |
-40~+85 |
|||
Storage Temperature(°C) |
-20~+70 |
|||
Packing Type |
Customer Specify |
|||
Industry Standard |
Telcordia GR-1221-CORE |
|||
Selectable Packing Size |
1. 3.0X54 (Stainless steel sleeve packing) 2. 90X20X10 3. 100X80X10 4. 120X80X18 5. 140X114X18 |
|||
Wavelength |
Package size |
Fiber type |
Diameter |
Cable |
Connecotor |
1315=1310&1550nm |
ST=Steel |
0=G652D |
1=250um |
0=none |
0=none |
9815=980&1550nm |
PM=Plastic |
1=G657A |
2=900um |
1=1m |
1=SC/APC |
18/15=1480&1550nm |
C=Customize |
3=2.0mm |
2=2m |
2=SC/PC |
|
4=3.0mm |
C=Customize |
3=FC/APC |
|||
4=FC/PC |
|||||
5=ST/APC |
|||||
6=ST/PC |
|||||
C=customize |
