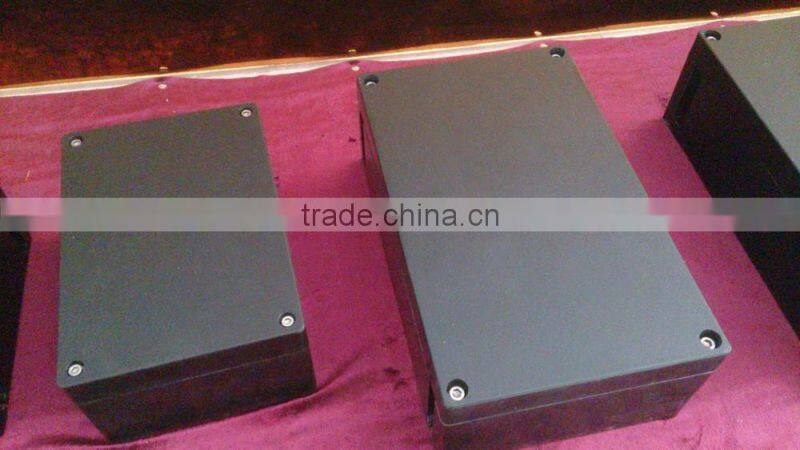

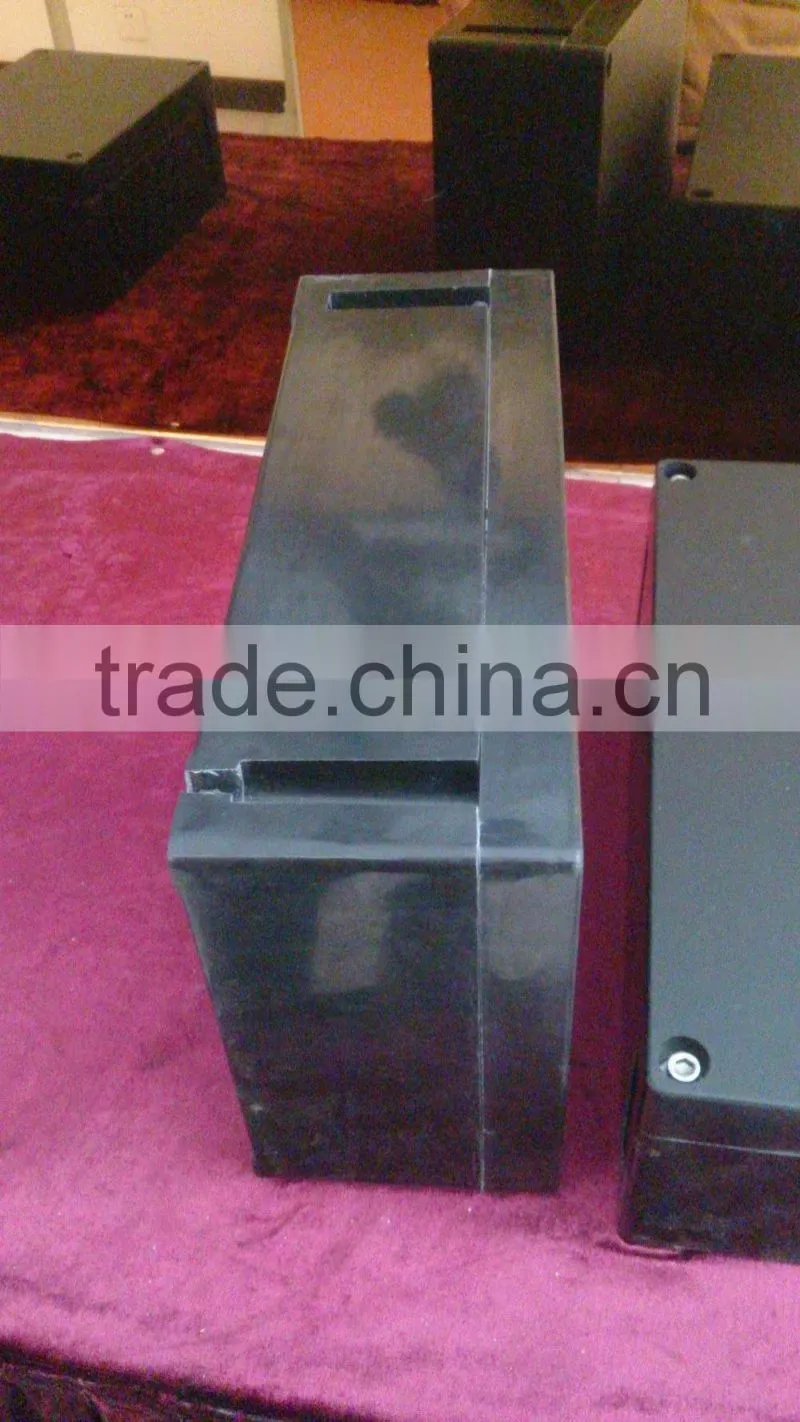

BJX8050- Explosion Proof corrosion proof GRP junction Box
1. Can be used in hazardous areas: Zone 1 and Zone 2 .
2. Can be used in explosive gas atmospheres of Category IIA, II B and II C where the temperature classification is T1-T6.
3. Hazardous zone : 20. 21. and 22
4. Flammable dust atmosphere.
5. widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.
Rated Voltage | Dust-mark | Inlet thread | enclosure material | Ex-mark | Degree of protection | Erosionproofclass | cableouterline (mm) |
AC220/380v | DIP A21 TA,T6 | G1"~G2" | GRP | Exed II T6 Gb | IP65 | WF2 | Φ6mm~Φ38mm |
APPlications:
- Suitable for explosive gas environment Zone1 and Zone2.
- Suitable for IIA,IIB,IIC explosive gas environment.
- Suitable for Hazarous dust area: Zone20, Zone21, Zone22.
- Can be used in the environment of temperature group for T1~T6.
- Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.
- Can be used as division and connection of cables.
Techinical parameters:
- Meet a criterion:G3B3836.1, GB3836.3, GB12476.1,IEC60079-0, IEC60079-7, IEC61241-1, EN60079-0, EN60079-7, EN61241-1
- Ex-proof Mark:Exe II T6 Gb, DIP A21 TA, T6.
- Rated voltage: AC220/380V
- Protection grade: IP65
- Corrosion-proof grade:WF2
- Inlet Thread: G1"~G2"
- Rated current: ≤100A
- Cable outer dia: Φ6mm~Φ38mm.
Product Features:
- Glas reinforced polyester enclosure, with the elegant shape, corrosion resistance, static, electricity, resistance, impact resistance and good thermal reliability.
- Labyrinthsealing structure, design and with the functions of waterproof and dustproof.
- Exposed fasteners of stainless steel and uses anti-lost type design, which to be convenient for user to install and maintain.
- Terminal can selected for line pressed type or pheonix's special terminal of safety-increased type.
- Built-in terminal number, inlet's direction, inlet's number and specification are determined by use.
- Can be use to sub-connect or connect the electrical control circuits, and also applicable to connect supply wire of self- control engineering or communication's signals.
- Steel pipe and cable wiring.
