ABSg- Explosion proof tank inspection lamp
/watch?v=6p-wfphoApk&feature=youtu.be
1. Can be used in hazardous areas: Zone 1 and Zone 2 .
2. Can be used in explosive gas atmospheres of Category II A and II B and II C where the temperature classification is T1-T6.
3. Hazardous zone : 20. 21. and 22
4. Flammable dust atmosphere.
5. widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.
Voltage |
Lamp Holder |
Enclosure Material |
Temperature area |
Ex-mark |
Degree of protection |
Erosionproofclass |
cableouterline (mm) |
AC220V AC/DC36V,24V,12V |
E27 |
Aluminum Alloy |
T1-T4 |
Exd II B/CT4 Gb, DIP A21 TA, T4 |
IP65 |
WF1,WF2 |
Φ 9- Φ 14 |
APPlications:
- Suitable for explosive gas environment Zone1 and Zone2.
- Suitable for IIA,IIB explosive gas environment.
- Suitable for ZONE20, ZONE21, ZONE22.
- Can be used in the environment of temperature group for T1~T4.
- Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.
Techinical parameters:
- Meet a criterion:G3B3836.1, GB3836.2, GB12476.1, IEC60079-0, IEC60079-1, EN60079-0,EN60079-1.
- Ex-proof Mark:Exd II BT4 Gb, Exd II CT4 Gb, DIP A21 TA, T4.
- Rated voltage: AC220V AC/DC36V,24V,12V.

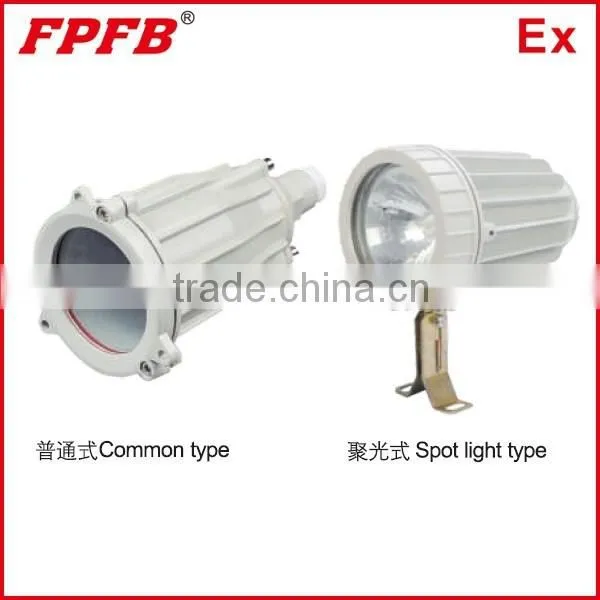

- Rated Power: Common type( Incandescent lamp: 60W, 100W) Spot light B type( Tungsten halogen 35W,50W)
- Lamp Holder:E27
- Protection grade: IP65
- Explosion-proof Grade: WF1,WF2
- Inlet thread: G3/4"
- Cable outer dia: 9mm~14mm
Product Features:

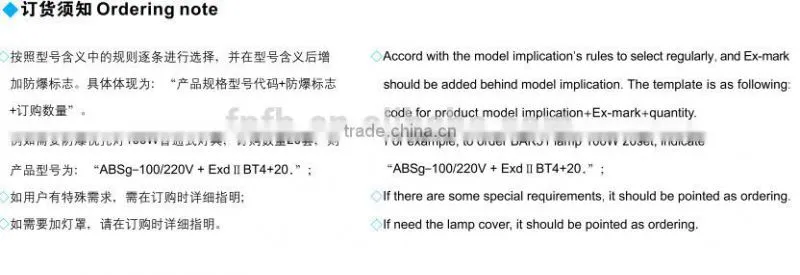

Order Information :
- The enclosure is made of aluminum alloy. It is moulded by the high strength aluminum alloy for one time, which has high strength, fine explosion-proof functions. Its exterior has sprayed with plastic by high pressure static after shot blasting at high speed, which has great corrosion proof and beautiful appearance.
- The toughened glass cover has great transmittance. Outer fasteners are made of stainless steel.
- In the spotlight, there are electronic regulator and tungsten halogen lamp of 12V. It has some advantages as following: the lamp voltage output 220V, power voltage 12V, fine light effect, high color rendering index and so on.
- Wiring with cables.
Feipu Explosion-proof Electric Co., Ltd. is an advanced electrical solution provider for hazardous areas of zone1, zone 2, and zone 20, zone 21, zone 22.
We have wide range explosion proof products of lamp & light fixtures, electrical equipments, and box & fittings. And excellent company crew of R&D, marketing and artificers that has abundant experience in both Chinese domestic market and overseas markets.
Our products and projects occur in various occasions of petroleum, chemical, military and workshop across the world.
We care the most of quality and stability of our products, as well as efficient communication and positive service to our customers and partners.
