BYS explosion proof lamp flange type ip67
/watch?v=-FfoMqyUrj4&feature=youtu.be
1. Can be used in hazardous areas: Zone 1 and Zone 2 .
2. Can be used in explosive gas atmospheres of Category II A and II B and II C where the temperature classification is T1-T5.
3. Lamp options: high light, fluorescent lamp.
4. widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.
5.T10single-pin instant fluorescent bube,fa6lamp holder,inductive ballast.T8 Bi-pin fluorescent tube,G13lamp holder.the ellectronic ballast T5and T8 led tube.
Model |
Lamp |
Power |
Luminous Flux |
Voltage |
Ex-mark |
BYS-2*9L |
fluorescent lamp |
18W |
3600 lm |
AC220V |
Exedmb II CT5 Gb DIP A21 TA,T5 |
| BYS-1*18L | 18W |
3600lm |
|||
| BYS-2*18L | 36W | 7200 lm |
APPlications:
- Suitable for explosive gas environment Zone1 and Zone2.
- Suitable for IIA,IIB,IIC explosive gas environment.
- Suitable for Hazarous dust area: Zone20, Zone21, Zone22.
- Can be used in the environment of temperature group for T1~T5.
- Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.
Techinical parameters:
- Meet a criterion:G3B3836.1, GB3836.2, GB3836.3, GB3836.9, GB12476.1, IEC60079-0,IEC60079-1, IEC60079-7, IEC60079-18, IEC61241-1-1, EN60079-0, EN60079-1,EN60079-7, EN60079-18 EN61241-1-1,
- Ex-proof Mark:Exedmb II CT5 Gb, DIP A21 TA, T5.
- Rated voltage: AC220V
- Ligting Source: Plz Refer the Selection Table.
- Protection grade:IP65, IP67
- Corrosion-proof grade:WF2

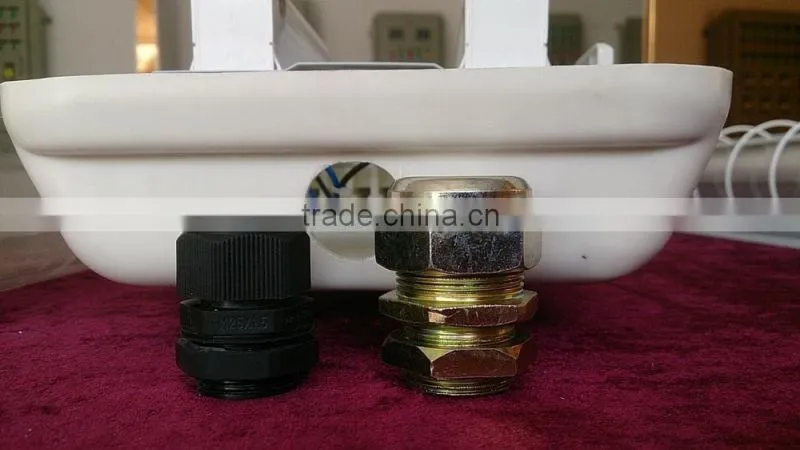

- Inlet Thread: 2-M25×1.5
- Cable outer dia:9mm~14mm
- Battery charging time:≤24h
- Emergency Start time:≤0.3s
- Emergency lighting duration:≥90min
Selection Table:
Product Features:
- SMC Glass fibre reinforced polyester(GRP) Enclosure, has benefits of high strength, impact resistance and corrosion resistance.
- Lampshade is injiected of polycarbonate with benefits of high light transmittance and impact resistance.
- Labyrinth seal structure with strong water resistance and dust resistance.
- Take name brand fluorescent tube with long service life and high light efficiency.
- Exclusive explosion proof ballast.
- Design with convenient opening method, turn opening mechanism as per indication to open cover.
- Built-in limit switch, de-energizing when open cover to assure the safety.
- For fitting with emergency unit, It will automatically turn to emergency lighting when power circuit failed.
- Inside the emergency unit designed with over charging and over discharging protection circuit.
- Steel conduit or cable wirings.
Order Information :
- Lamps has factory configuration light source, can be used directly access power;
- Take emergency unit, installation only ceiling type and boom type applicable;
- When double tube fluorescent lamp start emergency unit, Only one tube work.
- It is default pendant type is side entry type. Plz indicate when need upwards entry.
Feipu Explosion-proof Electric Co., Ltd. is an advanced electrical solution provider for hazardous areas of zone1, zone 2, and zone 20, zone 21, zone 22.
We have wide range explosion proof products of lamp & light fixtures, electrical equipments, and box & fittings. And excellent company crew of R&D, marketing and artificers that has abundant experience in both Chinese domestic market and overseas markets.
Our products and projects occur in various occasions of petroleum, chemical, military and workshop across the world.
We care the most of quality and stability of our products, as well as efficient communication and positive service to our customers and partners.
Dear Customers,
Welcome to visit FPFB online marketing display.
To serve you in a better and efficient way, please browse our products and contact us with following information.
1. Where is the occasion products will be used, petroleum refinery, chemical factory or industrial workshop?
2. What is the purpose from products? Routine illumination, field illumination, platform lighting, emergency or portable.
3. Your preference on light source, power and installation methods etc.
We will offer our best products and prices according to your actual demand.
Sincerely yours,
FPFB sales team.
1. What is our advantage in the industry?
Our main advantage is high performance price ratio of our products, and positive service to our customers and partners.
Our products are not the top grade of quality in the industry, and our prices are not the lowest as well, but the performance price ratio of our products is outstanding.
2. What is our sales and distribution policy?
We welcome all kinds of business cooperation methods, including region distributors, new market agencies, project & bid buyers, and end user procurement.
3. Do you have warranty policy?
We offer at least 2 year-warranty for our products, longer warranty for certian products, and full lifespan aftersales service.
1. Standard export packing or customized packing available.
2. Shipping arrangement according to buyers request.
