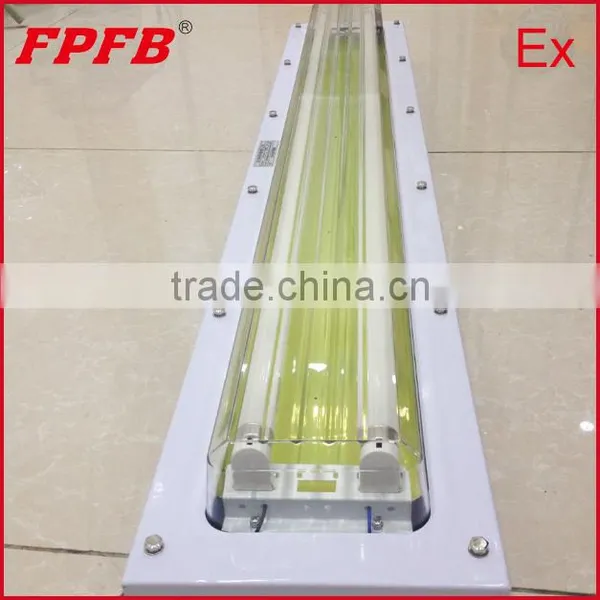

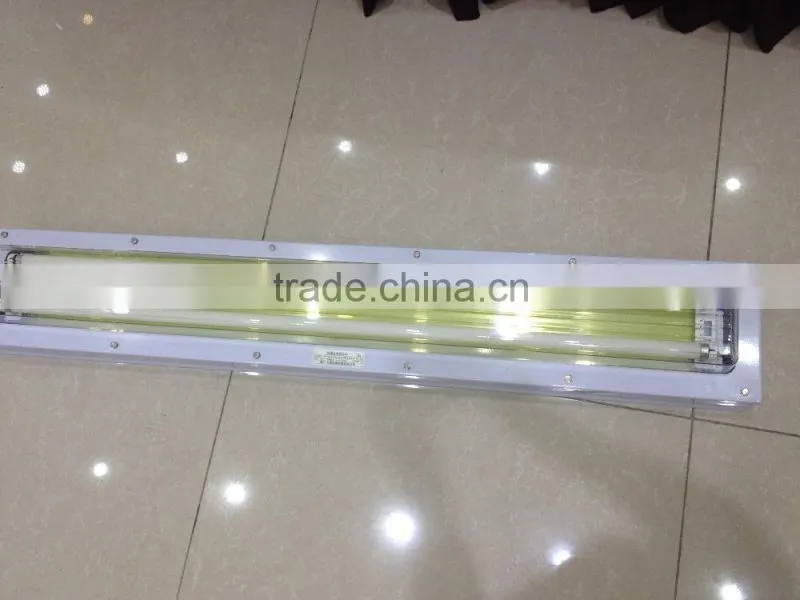

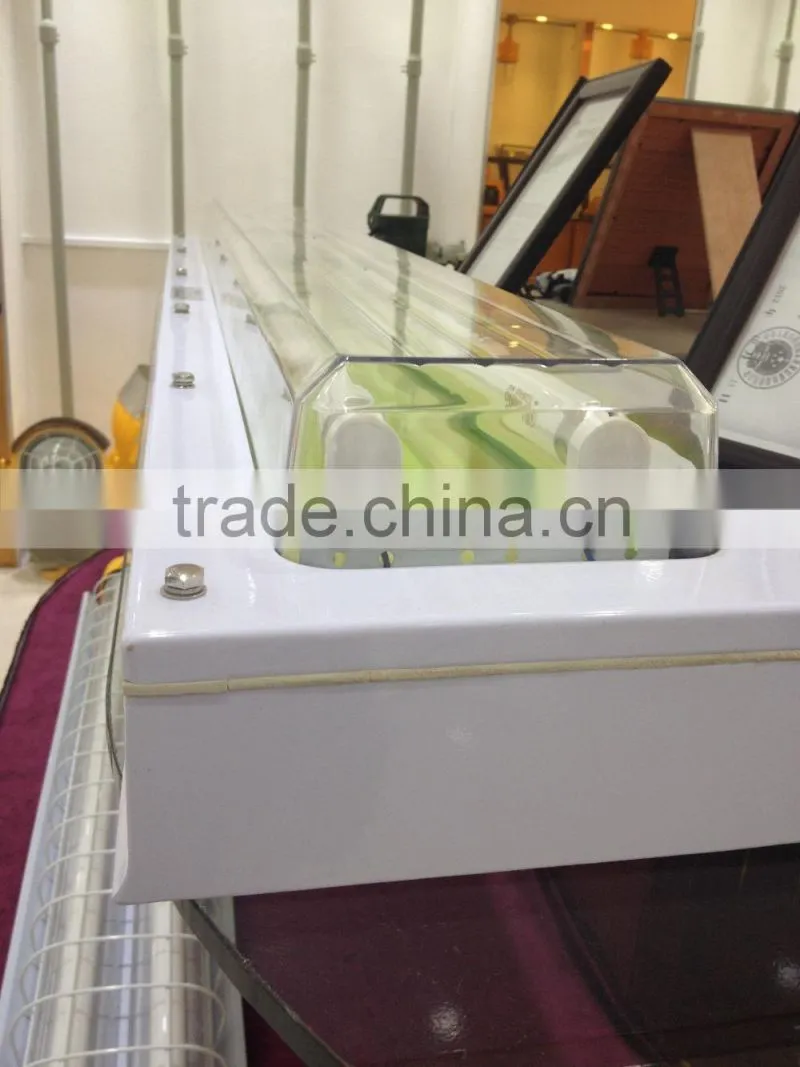

Explosion-proof front access fluorescent lamp LED light

  Explosion-proof front access fluorescent lamp LED light

1. Can be used in hazardous areas: Zone 1 and Zone 2 .

2. Can be used in explosive gas atmospheres of Category II A and II B and II C where the temperature classification is T1-T4.

3. Hazardous zone : 20. 21. and 22

4. Flammable dust atmosphere.

5. Widely used in the fields of oil, chemical industry , spaceflight ,war industry and so on.

Applications:

• Suitable for explosive gas environment Zone1 and Zone2.
• Suitable for IIA,IIB,IIC explosive gas environment.
• Suitable for Hazarous dust area: Zone20, Zone21, Zone22.
• Can be used in the environment of  temperature group for T1~T5.
• T10 Single-pin and T8, T5Bi-pin tube as lighting sources.
• It can be fitted with emergency device on request.
• Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.

Techinical parameters:

• Meet a criterion:G3B3836.1, GB3836.2, GB3836.3,  GB12476.1, IEC60079-0,IEC60079-1, IEC60079-7, IEC61241-1, EN60079-0, EN60079-1,EN60079-7, EN61241-1,
• Ex-proof Mark:Exed II CT5 Gb, DIP A21 TA, T5.
• Rated voltage: AC220V
• Ligting Source: T10 Single-pin tubes(1×20W,2×20W,1×40W,2×40W)
                        T8 Bi-pin tubes(1×18W,2×18W,1×36W,2×36W)
                        T5 Bi-pin tubes(1×14W,2×14W,1×28W,2×28W)
                        T5 and T8 LED tube(1×9W, 2×9W,1×18W,2×18W)
                        Detail Plz refer the blew table.
• Protection grade:IP54,IP65
• Corrosion-proof grade:WF2,WF1
• Inlet Thread: G3/4"
• Cable outer dia:9mm~14mm
• Battery charging time:≤24h
• Emergency Start time:≤0.3s
• Emergency lighting duration:≥90min

Selection Table:

Product Features:

• Steel plate or stainless steel Enclosure, high voltage electrostatic powder coated surface.
• Transparent bubble high strength impact resistance, good pervious to light
• Exposed fasteners are of stainless steel.
• Take name brand fluorescent tube with long service life and high light efficiency.
• For fitting with emergency unit, It will automatically turn to emergency lighting when power circuit failed.
• Inside the emergency unit designed with over charging and over discharging protection circuit.
• Steel conduit or cable wirings.

Order Information :

• Lamps has factory configuration light source, can be used directly access power;
• Take emergency unit, installation only ceiling type and boom type applicable;
• When double tube fluorescent lamp start emergency unit, Only one tube work.
• Stainless steel material is available as per request,
• Upward opening model is available as per request, this upward opening model is convenient for maintain in the back from the ceiling no need front opening.
