CCD96- Explosion-proof circular fluorescent lamp

APPlications:

• Suitable for explosive gas environment Zone1 and Zone2.
• Suitable for IIA,IIB,IIC explosive gas environment.
• Can be used in the environment of  temperature group for T1~T6.
• Lighint source:HB LED or phosphor circular fluorescent lamp;
• Saving energy, high efficiency, long service life, maintenance free and reduce usage cost.
• Suitable for places with higher requirement of lights;

• Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.

Techinical parameters:

• Meet a criterion:G3B3836.1, GB3836.2, GB3836.3,  IEC60079-0,IEC60079-1, IEC60079-7.
• Ex-proof Mark:Exd II BT6 Gb, Exd II CT6 Gb, DIP A21 TA, T6.
• Rated voltage: AC90~270V(LED)/AC176~264V(fluorescent lamp)
• Ligting Source: Plz Refer the Selection Table.
• Protection grade:IP66
• Corrosion-proof grade:WF1
• Inlet Thread: G³/4"
• Cable outer dia:9mm~14mm
• Battery charging time:≤24h
• Emergency Start time:≤0.3s
• Emergency lighting duration:≥90min

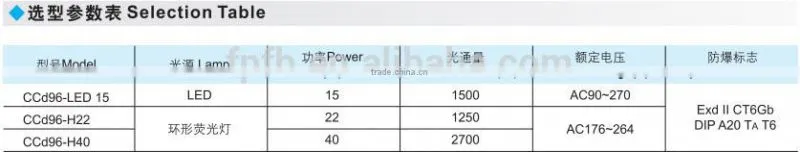

Selection Table:

Product Features:

• Aluminium alloy Enclosure,high voltage electrostatic powder coated after shot blasted.
• Polycarbonate transparent cover with gestures of high transmittance, impact resistance and ageing resistance;
• Lamp options of high lights LED or phosphor circular fluorescent lamp, safe and reliable.
• HB LED lamp has features like: small volume, high light efficiency, low consumption, the theoretical service life reach 100000 hours;
• For fitting with emergency unit, It will automatically turn to emergency lighting when power circuit failed.
• Inside the emergency unit designed with over charging and over discharging protection circuit.
• Phosphor circular fluorescent lamp with features of soft light, good color rendering index;
• Excellent photometric design, equipped with special design to exert property of different light source.
• Compound structure designed, connection compartment is of increased safety structure convenient for quick wiring.
• Wide voltage range meeting with industry site usage requirements;
• Specially designed seal structure to ensure ingress protection IP66.

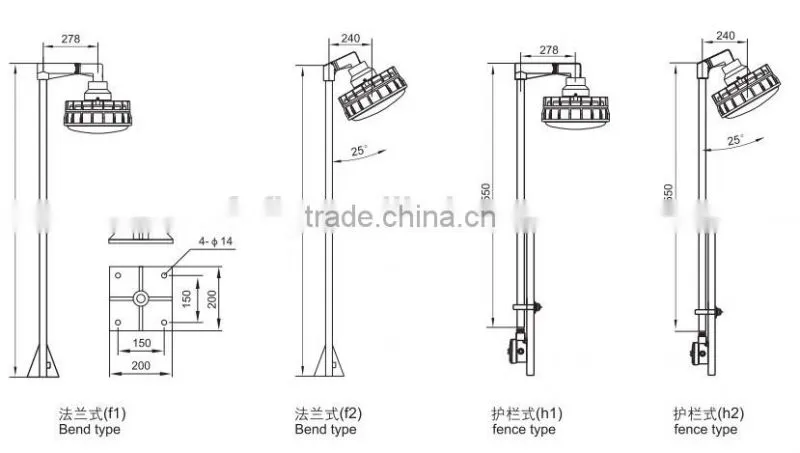

• Specially designed mounting accessories convenient for quick install.
• Exposed fasteners are of high corrosion resistant stainless steel;
• Steel conduit or cable wirings.

Order Information :

• Lamps has factory configuration light source, can be used directly access power;
• Emergency unit for circular fluorescent lamp 40W should be specially made;
