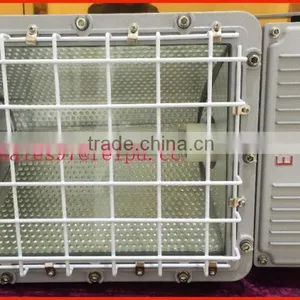

Help CenterBAT53 Alluminum Alloy Enclosure Explosion Proof Floodlight IP65 400W
Related Products
-
Floodlights BAT53 Series Explosion-proof FloodlightsUS$ 1 - 60MOQ: 50 Pieces -
BAT53 Explosion Proof Floodlight/lamp 400W ( Square )US$ 50 - 100MOQ: 50 Pieces
-
BAT51 400w 360 Degree Rotary Explosion Proof IP65 Pedestal Type Flood LightUS$ 10 - 80MOQ: 50 Pieces
-
BAT55 China Supplier High Quality Explosion Proof LED Energy Saving Lamp IP65US$ 1 - 40MOQ: 20 Pieces
-
BAT52 150W 250W 400W Explosion Proof Flood Street LightUS$ 10 - 200MOQ: 50 Pieces
BAT53 explosion proof floodlight street led lamp
1. Can be used in hazardous areas: Zone 1 and Zone 2 .
2. Can be used in explosive gas atmospheres of Category IIA IIB and II C where the temperature classification is T1-T3.
3. Hazardous zone : 20. 21. and 22
4. Flammable dust atmosphere.
5. widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.
Voltage |
cable outer dia |
INLET thread |
protection grade |
explosion proof grade | temperature group | lamp source | |
AC220V |
9-14mm |
G3/4" |
IP54 IP65 |
WF1 |
T1~T3 |
energy saving |

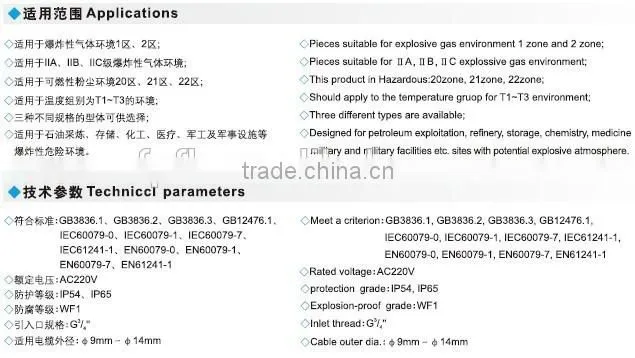

APPlications:
- Suitable for explosive gas environment Zone1 and Zone2.
- Suitable for IIA,IIB,IIC explosive gas environment.
- Suitable for explosion zone20,21,22.
- Can be used in the environment of temperature group for T1~T3.
- Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.

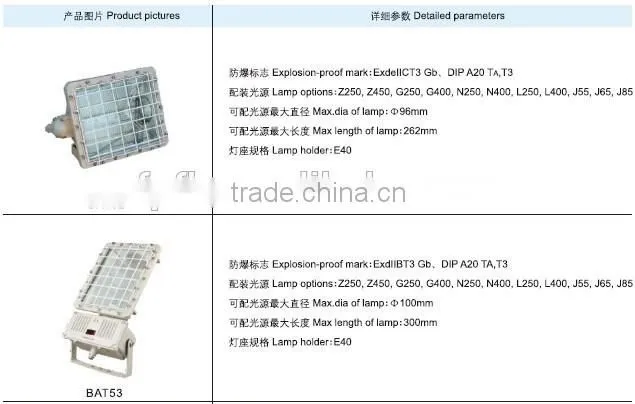

Technical parameters:
- Meet a criterion:GB3836.1 GB12476 IEC60079 EN60079
- Rated power:AC220V
- protection grade:IP54 IP65
- explosion proof grade:WF1
- inlet thread:G3/4"
- cable outer dia:9mm-14mm

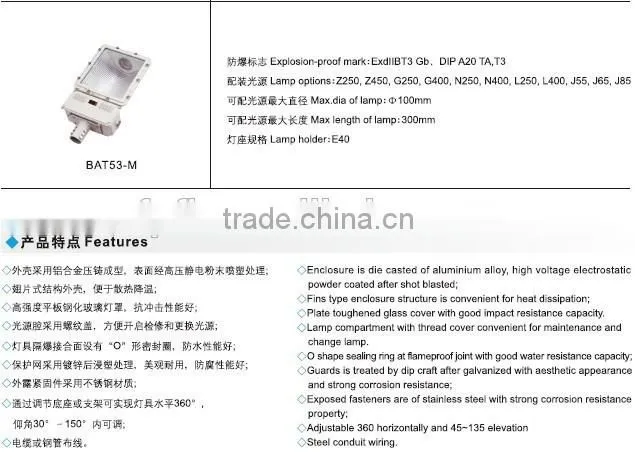

Features:
- Enclosure is die casted of aluminum alloy,high voltage electrostatic powder coated after shot blasted.
- Fins type enclosure structure is covenient for heat dissipation.
- Plate toughened glass cover with good impact resistance capacity.
- Lamp compartment with thread cover convenient for maintenance and change lamp
- O shape sealing ring at flameproof joint with good water resistance capacity.
- Guards is treated by dip craft after galvanized with aesthetic apprearance and strong corrosion resistance.
- Exposed fasteners are of stainless steel with strong corrosion resistance property.
- Adjustable 360 horizontally and 45-135 elevation
- Steel conduit wiring.

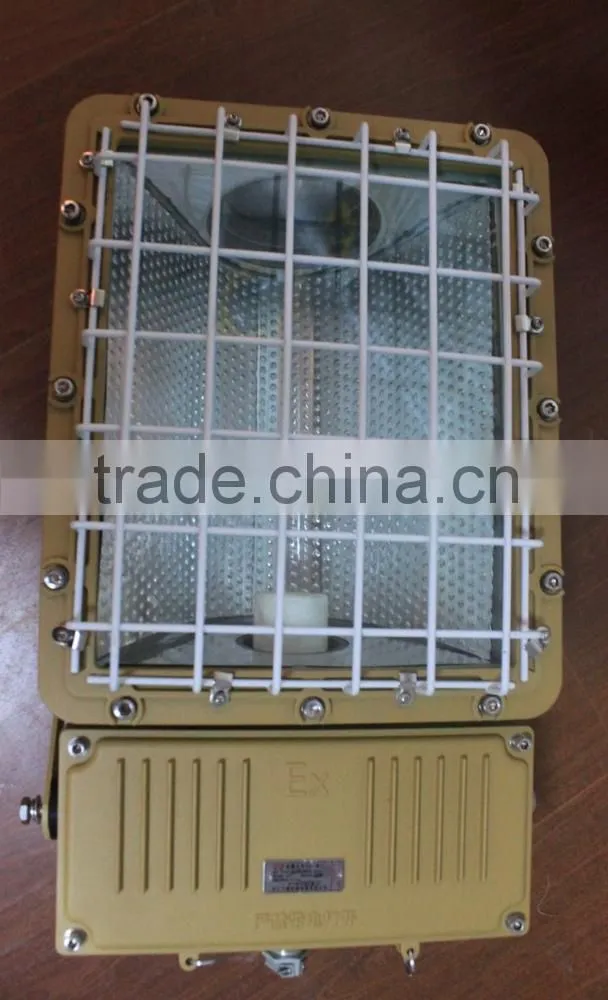

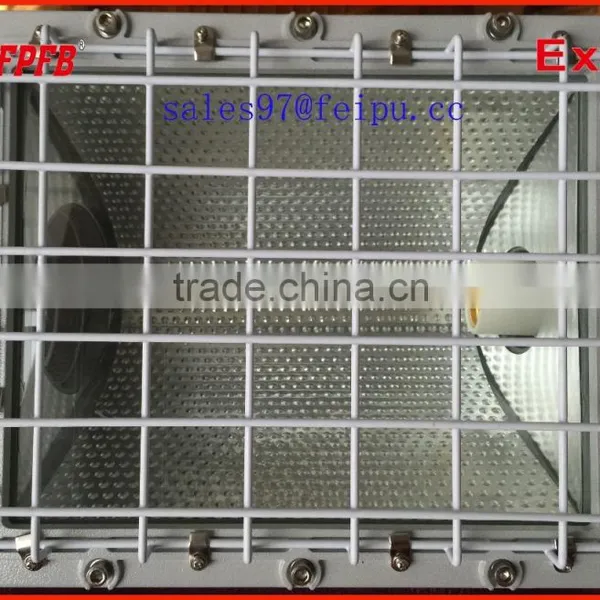

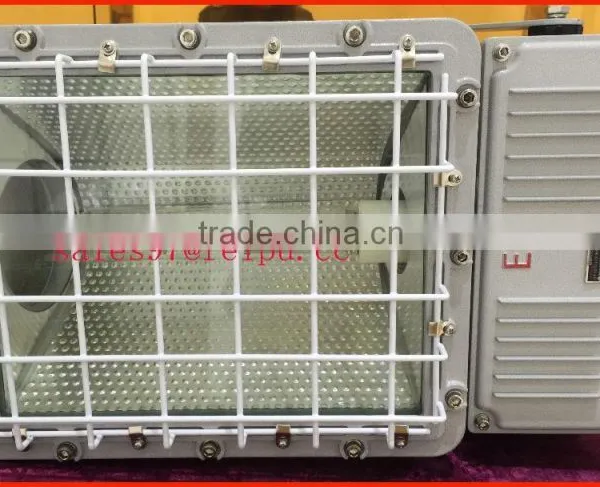

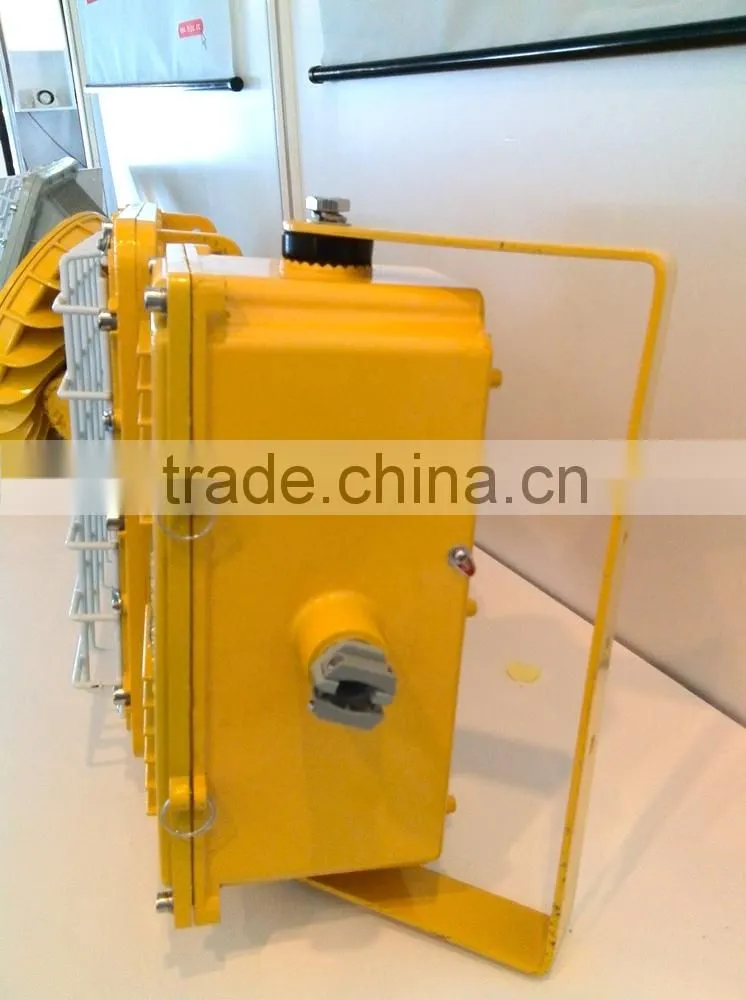

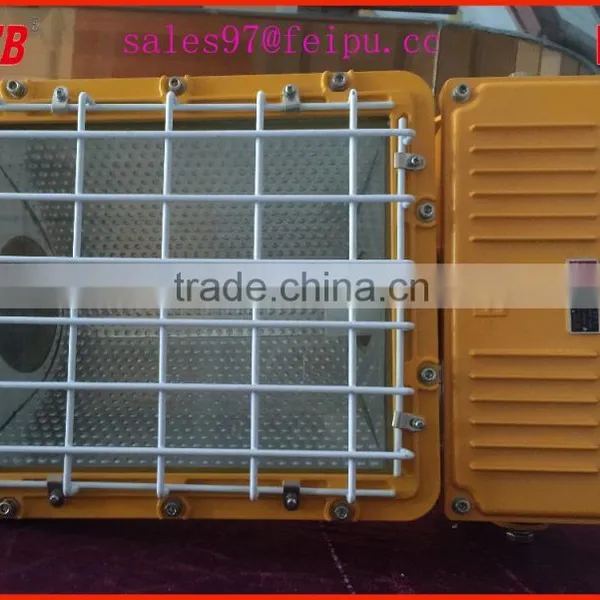

DISPLAY OF SAPLES:
Feipu Explosion-proof Electric Co., Ltd. is an advanced electrical solution provider for hazardous areas of zone1, zone 2, and zone 20, zone 21, zone 22.
We have wide range explosion proof products of lamp & light fixtures, electrical equipments, and box & fittings. And excellent company crew of R&D, marketing and artificers that has abundant experience in both Chinese domestic market and overseas markets.
Our products and projects occur in various occasions of petroleum, chemical, military and workshop across the world.
We care the most of quality and stability of our products, as well as efficient communication and positive service to our customers and partners.
Dear Customers,
Welcome to visit FPFB online marketing display.
To serve you in a better and efficient way, please browse our products and contact us with following information.
1. Where is the occasion products will be used, petroleum refinery, chemical factory or industrial workshop?
2. What is the purpose from products? Routine illumination, field illumination, platform lighting, emergency or portable.
3. Your preference on light source, power and installation methods etc.
We will offer our best products and prices according to your actual demand.
Sincerely yours,
FPFB sales team.
1. What is our advantage in the industry?
Our main advantage is high performance price ratio of our products, and positive service to our customers and partners.
Our products are not the top grade of quality in the industry, and our prices are not the lowest as well, but the performance price ratio of our products is outstanding.
2. What is our sales and distribution policy?
We welcome all kinds of business cooperation methods, including region distributors, new market agencies, project & bid buyers, and end user procurement.
3. Do you have warranty policy?
We offer at least 2 year-warranty for our products, longer warranty for certian products, and full lifespan aftersales service.
1. Standard export packing or customized packing available.
2. Shipping arrangement according to buyers request.
