IP66 LED floodlight ex proof lights

  IP66 LED floodlight ex proof lights

Youtube video web: /watch?v=G1k4nEWTH2w

1. Can be used in hazardous areas: Zone 1 and Zone 2 .

2. Can be used in explosive gas atmospheres of Category II B and II C where the temperature classification is T1-T4.

3. Hazardous zone : 20. 21. and 22

4. Flammable dust atmosphere.

5. Widely used in the fields of oil, chemical industry , spaceflight ,war industry and so on.

APPlications:

• Suitable for explosive gas environment Zone1 and Zone2.
• Suitable for IIA,IIB explosive gas environment.
• Suitable for Hazarous dust area: Zone20, Zone21, Zone22.
• Can be used in the environment of  temperature group for T1~T4.
• Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.

Techinical parameters:

• Meet a criterion:G3B3836.1, GB3836.2, GB3836.3,  GB12476.1, IEC60079-0,IEC60079-1, IEC60079-7, IEC61241-1, EN60079-0, EN60079-1,EN60079-7, EN61241-1,
• Ex-proof Mark:Exed II BT6/CT6 Gb, DIP A21 TA, T6.
• Rated voltage: AC220V, DC24-36
• Ligting Source: LED
• Rated power: 50W,60W,72W,85W,100W,110W,120W,130W,140W
• Protection grade:IP66,IP67
• Corrosion-proof grade:WF2,WF1
• Inlet Thread: G3/4"
• Cable outer dia:9mm~14mm

Product Features:

• Aluminum alloy enclosure, surface plastic-sprayed on high-pressure electrostatic technique.
• High impact resistance tempered glass cover, stainless steel exposed fasteners.
• Seal gasket is made of heat resistant and anti-aging slicone rubber, with good features of water and dust proof.
• Cabinets of light source, electrical and connection are separated wjocj effectively decreases the temperature increasing in cabinets of light source and electric, and ensure the longtime working life. More convenient and safe in installation and maintenance.
• Reasonable LEDs layout, high efficiency and energy saving, luminous factor≥120lm/W, color rendering index ≥80, extra long lifetime >50000 hours, maintenance for long time; green product without pollution.
• Double optical design, patented reflector, high efficiency and even illumination.
• Wide input voltage range 150~260V(or DC24/36V), constantpower output, constant output power, power factor ≥0.98, with instant voltage, over current, open circuit, short circuit and surge protection etc.
• Good color rendering, cold white, nature light, warm white available for different request, look more comfortable and improve the efficiency.
• Light angle adjustable according to users request, horizontal or vertical installation.
• Steel conduit or cable wirings.

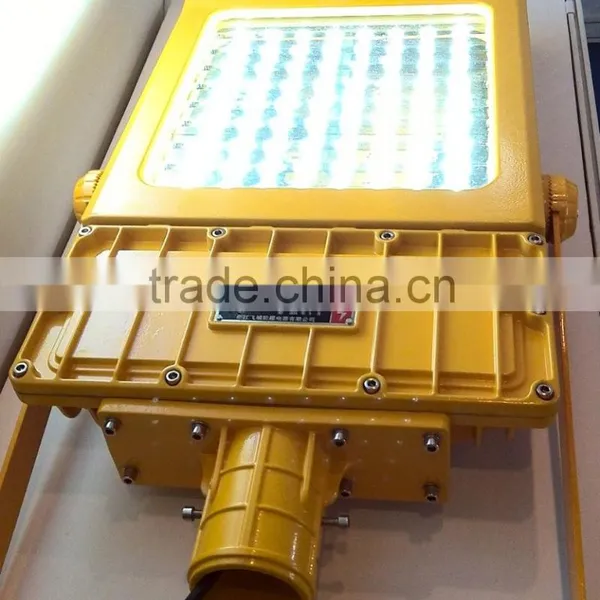

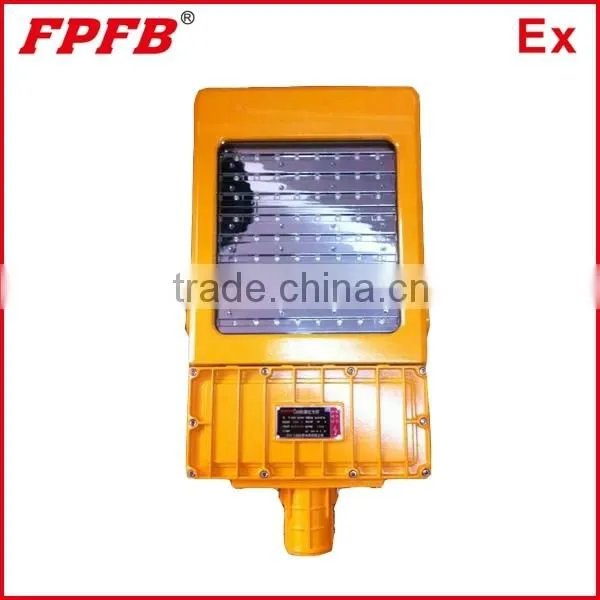

Sample pictures

Welcome to visit FPFB online marketing display.

To serve you in a better and efficient way, please browse our products  and contact us with following information.

1. Where is the occasion products will be used, petroleum refinery, chemical factory or industrial workshop?

2. What is the purpose from products? Routine illumination, field illumination, platform lighting, emergency or portable.

3. Your preference on light source, power and installation methods etc.

We will offer our best products and prices according to your actual demand.

Sincerely yours,

FPFB sales team.
