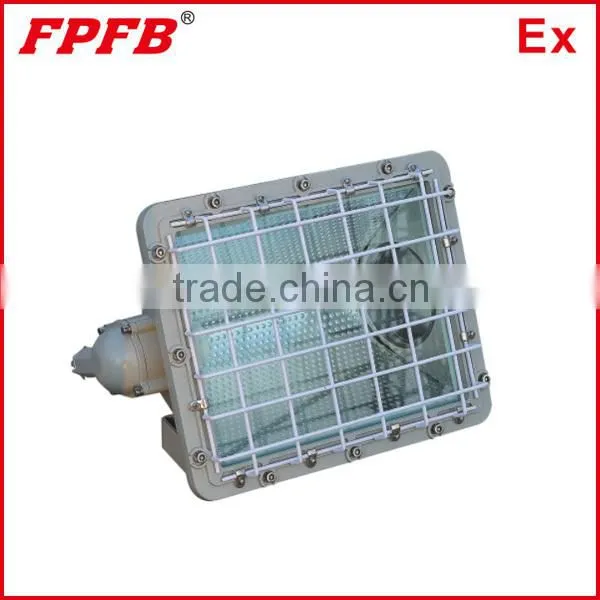

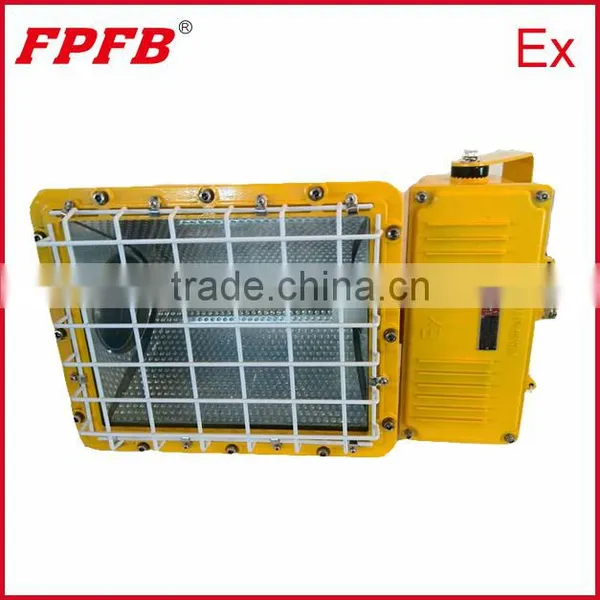

BAT53 Exd IIBT3 Explosion proof flood light
Youtube video web: /watch?v=tMZw5qKZZJg
1. Can be used in hazardous areas: Zone 1 and Zone 2 .
2. Can be used in explosive gas atmospheres of Category II B and II C where the temperature classification is T1-T4.
3. Hazardous zone : 20. 21. and 22
4. Flammable dust atmosphere.
5. widely used in the fields of oil, chemical industry , spaceflight ,war industry and so on.
Voltage | RATED power | INLET thread | Lighting source | Ex-mark | Degree of protection | Erosionproofclass | cableouterline (mm) |
AC220v | 55W-400W | G3/4" | N,L,G,Z,J | Exde II BT6/CT6 GB | IP54,IP65 |
WF1
| Φ 9- Φ 14 |
APPlications:
- Suitable for explosive gas environment Zone1 and Zone2.
- Suitable for IIA,IIB,IIC explosive gas environment.
- Suitable for Hazarous dust area: Zone20, Zone21, Zone22.
- Can be used in the environment of temperature group for T1~T3.

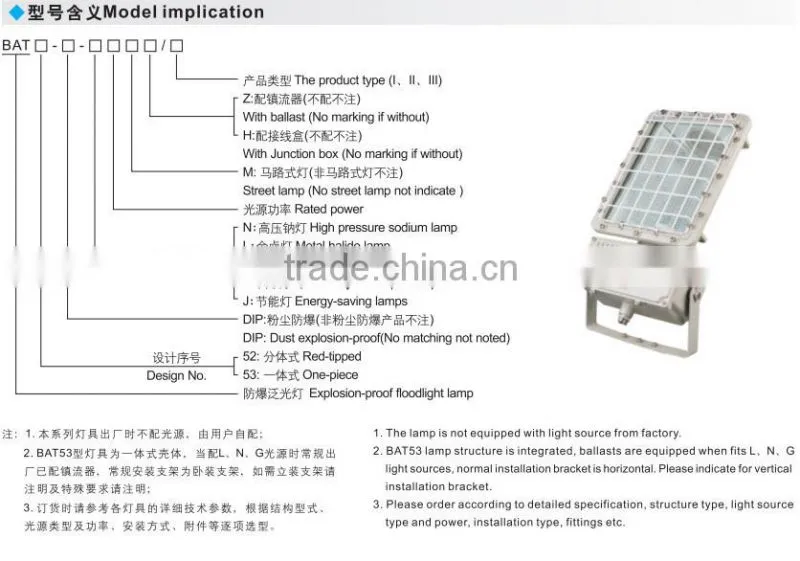

- 3 different Types are available.
- Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.

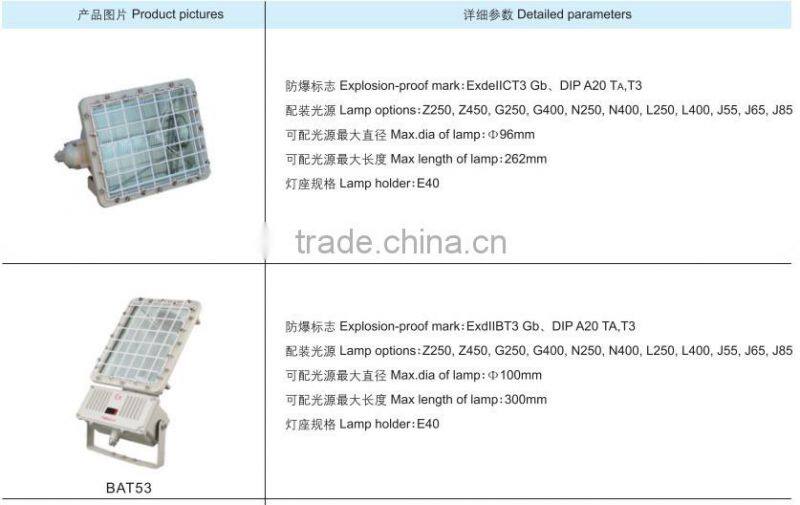

Techinical parameters:
- Meet a criterion:G3B3836.1, GB3836.2, GB3836.3, GB12476.1,IEC60079-0, IEC60079-1, IEC60079-7, IEC61241-1, EN60079-0, EN60079-1, EN60079-7, EN61241-1
- Ex-proof Mark:Exd II BT3 Gb, Exd II CT3 Gb, DIP A21 TA, T3.
- Rated voltage: AC220V
- Protection grade: IP54,IP65
- Corrosion-proof grade:WF1
- Inlet Thread: G3/4"
- Cable outer dia:9mm~14mm

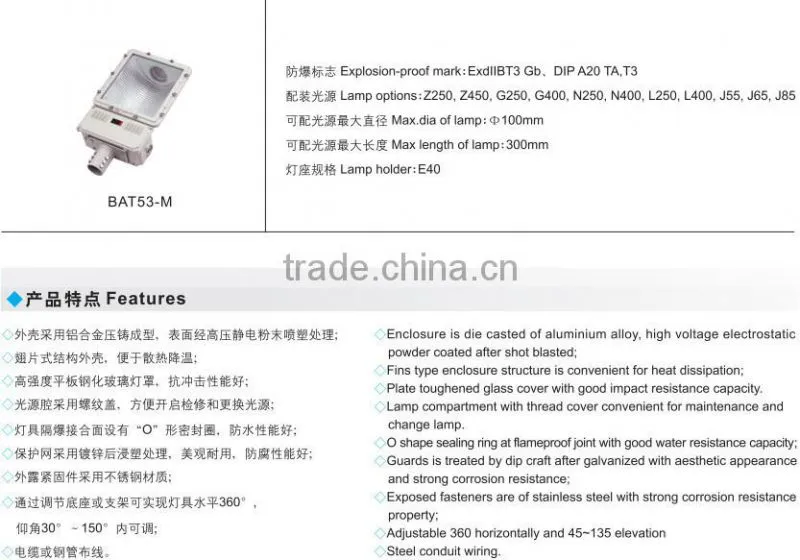

Product Features:
- Aluminium alloy Enclosure,high-pressure electrostatic powder coated after shot plastic.
- Fins type enclosure structure is convenient for heat dissipation.
- Plate toughened glass cover with good impact resistance capacity.
- Lamp compartment with thread cover convenient for maintenance and change lamp.
- O shape sealing ring at flameproof joint with good water-proof capacity.
- Guards are treated by dip craft after galvanized with aesthetic appearance and strong corrosion resistance.
- Stainless steel Exposed fasteners with strong corrosion resistance capacity.

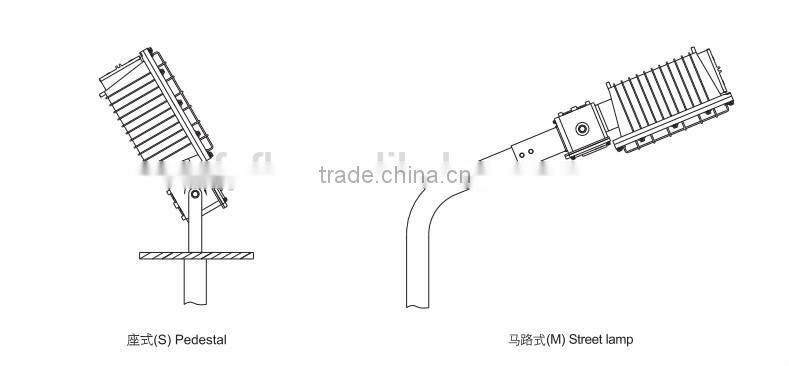

- Ajustable 360 horizontally and 45~135 elevation.
- Steel conduit wiring.

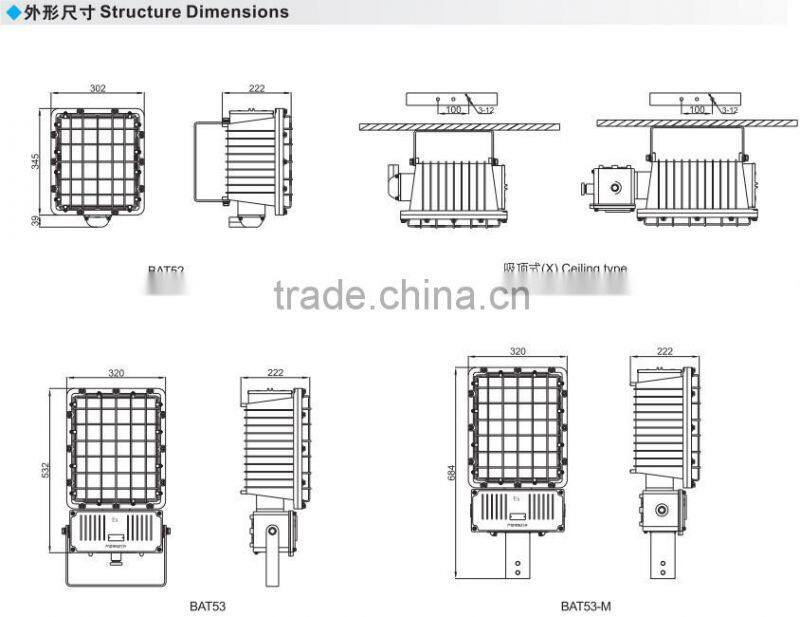

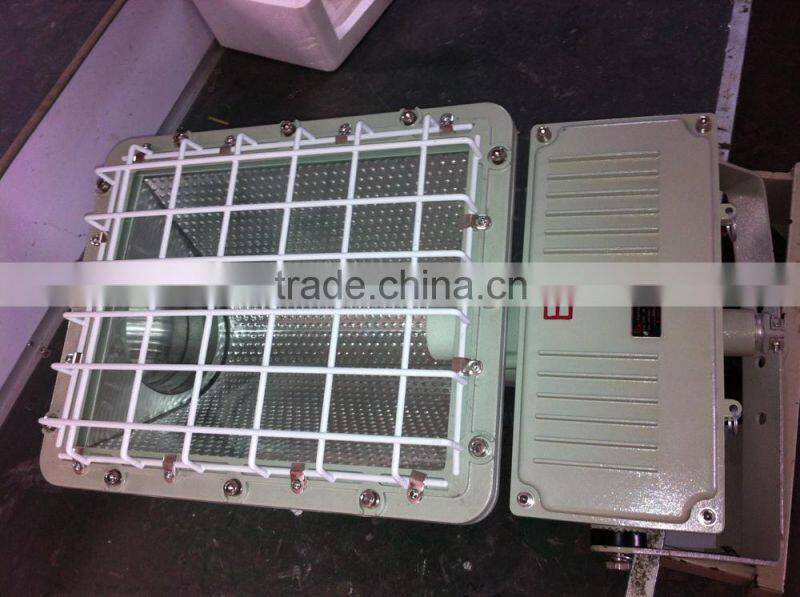

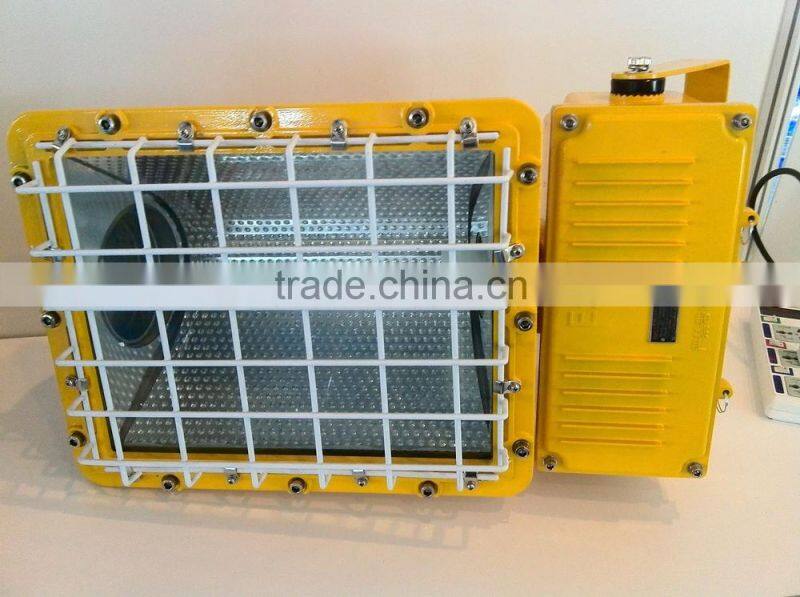

Profile Display

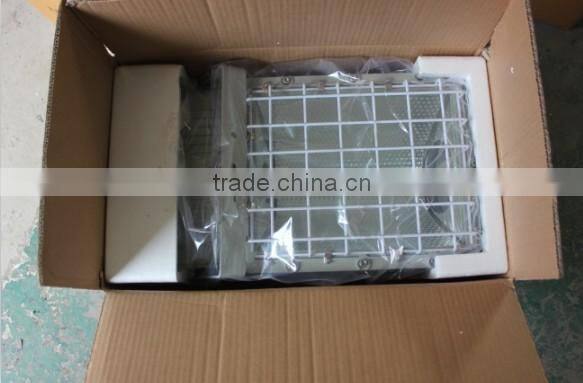

Packaging Display
Dear Customers,
Welcome to visit FPFB online marketing display.
To serve you in a better and efficient way, please browse our products and contact us with following information.
1. Where is the occasion products will be used, petroleum refinery, chemical factory or industrial workshop?
2. What is the purpose from products? Routine illumination, field illumination, platform lighting, emergency or portable.
3. Your preference on light source, power and installation methods etc.
We will offer our best products and prices according to your actual demand.
Sincerely yours,
FPFB sales team.
1. What is our advantage in the industry?
Our main advantage is high performance price ratio of our products, and positive service to our customers and partners.
Our products are not the top grade of quality in the industry, and our prices are not the lowest as well, but the performance price ratio of our products is outstanding.
2. What is our sales and distribution policy?
We welcome all kinds of business cooperation methods, including region distributors, new market agencies, project & bid buyers, and end user procurement.
3. Do you have warranty policy?
We offer at least 2 year-warranty for our products, longer warranty for certian products, and full lifespan aftersales service.
1. Standard export packing or customized packing available.
2. Shipping arrangement according to buyers request.
