BTS- Professional Explosion proof Ventilator
1. Can be used in hazardous areas: Zone 1 and Zone 2 .
2. Can be used in explosive gas atmospheres of Category IIA and II B where the temperature classification is T1-T4.
3. Steel conduit or cable wiring.
4. Flammable dust atmosphere.
5. widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.
Rated power |
Rated voltage |
Inlet thread |
Cable outer dia |
Wind rate(min/m3) |
Fan diameter(mm) |
EX-MARK |
Temperature |
370W,450W |
AC220V/380V |
G3/4" |
9mm-14mm |
110/160/300
|
500,600,750 |
Exd II BT4 Gb,DIP A21 TA,T4 |
T1-T4 |

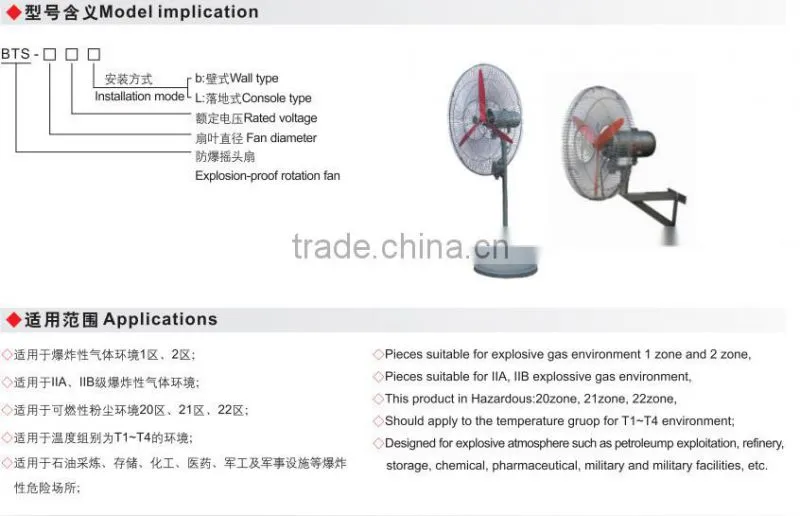

APPlications:
- Suitable for explosive gas environment Zone1 and Zone2.
- Suitable for IIA,IIB explosive gas environment.
- Suitable for explosion zone20,21,22.
- Can be used in the environment of temperature group for T1~T4.
- Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.
Techinical parameters:
- Meet a criterion: GB3836.1, GB3836.2, GB12476.1, IEC60079-0, IEC60029-1, IEC61241-1.
- Ex-proof mark: Exd II BT4 Gb, DIP A21 TA,T4.
- Rated voltage: AC220/380V
- Protection grade: IP54
- corrosion-proof grade: WF1
- Inlet thread: G3/4"
- Cable outer dia:Φ9mm~Φ14mm
Product Features:

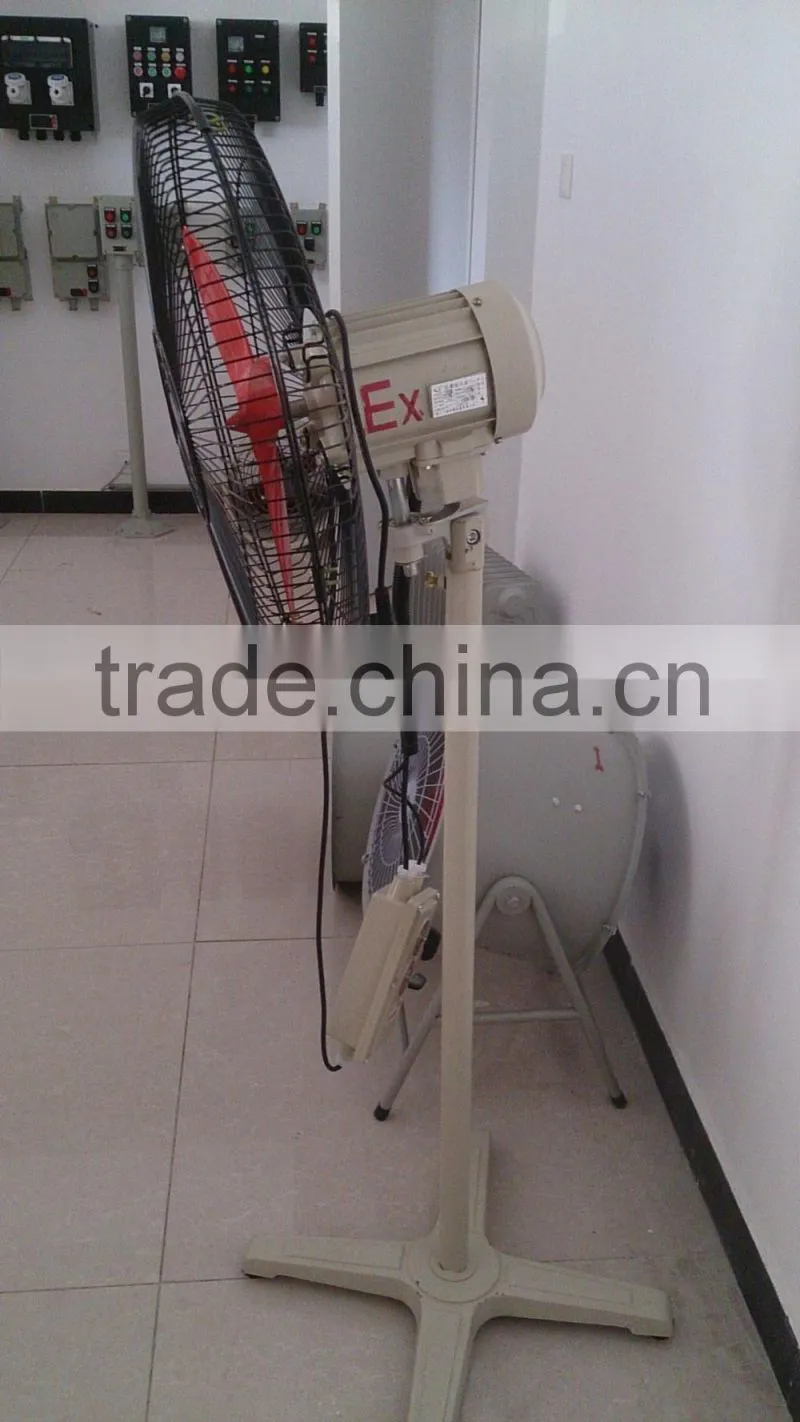

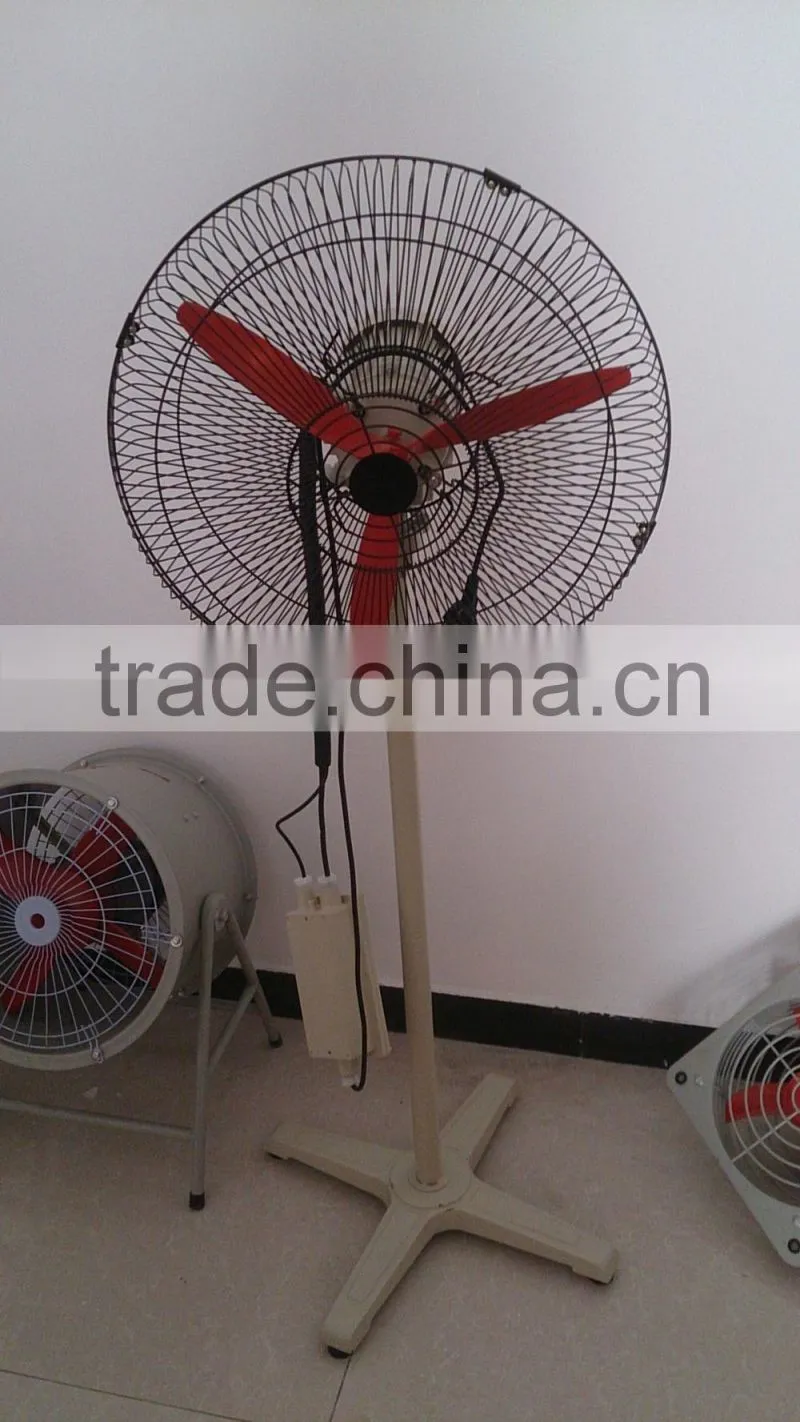

- Oscillating fan is composed of explosion proof motor, fan, explosion proof control switch, rocking head, etc.
- With novel structure, running smoothly, easy usage and beautiful appearance.
- Fan blades are made of rigid aluminium alloy, with high-pressure electrostatic plastic-sprayed surface.
- Oscillating head with independent mico-motor system can reduce the main motor load and mechanical transmission noise.
- The main motor cooling fan, compulsory air-cooled increase, effectively reduce the main motor temperature rise.

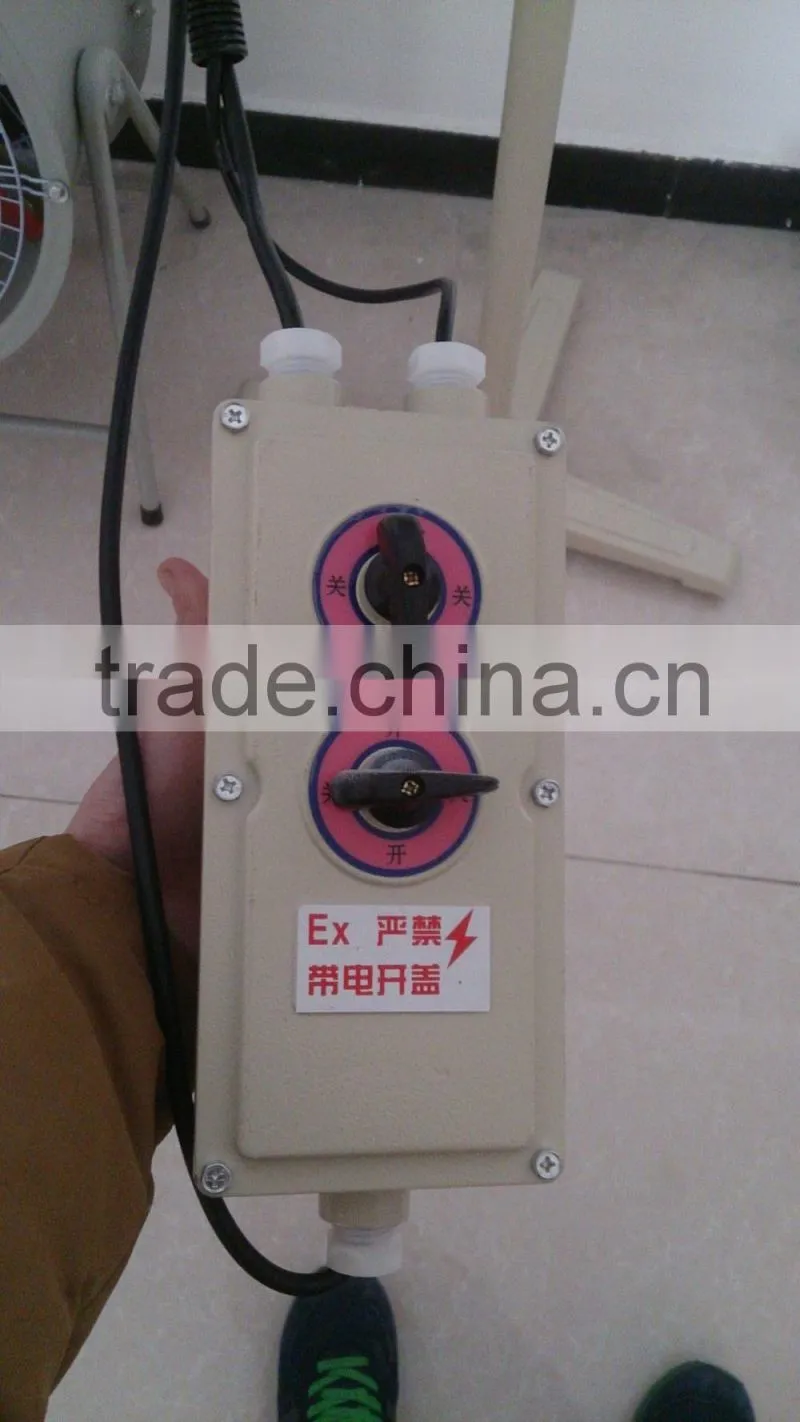

- The flameproof, explosion proof control box, control fans and oscillating head, respectively, start and stop the body.
- Cable wiring.
