BAS51 China supplier aluminum alloy 80W explosion proof adjustable ceiling fan
1. Can be used in hazardous areas: Zone 1 and Zone 2 .
2. Can be used in explosive gas atmospheres of Category IIA and II B where the temperature classification is T1-T4.
3. Steel conduit or cable wiring.
4. Flammable dust atmosphere.
5. widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.
Rated power |
Rated voltage |
Inlet thread |
Cable outer dia |
Wind rate(min/m3) |
Fan diameter(mm) |
charging time |
Temperature |
80W |
220V |
2-G3/4" |
9mm-14mm |
250/270
|
1200.1400 |
6h |
T1-T4 |
TECHNICAL PARAMETERS:
1.MEET A CRITERION:GB3836.2 GB3836.3 GB3836.9 IEC60079-0 IEC60079-7 IEC60079-18
2.RATED VOLTAGE:AC220V
3.RATED POWER:80W
4.EX-PROOF GRADE:WF1
5.INLET THREAD:2-G3/4"
6.CABLE OUTER DIA:9MM-14MM
FEATURES:
1.Explosion proof ceiling fan is composed of explosion proof motor,fan,terminal box,explosion proof speed controller,etc.
2.Explosion proof motor is die casted of shell of aluminum alloy with high pressure electrostatic plastic-sprayed surface.
3.Explosion speed controller using the capacitive gear.gear speed regulation no dead zone,which be canrealize 1-5 wind speed adjustment.
4.Steel conduit or cable wiring
1. Can be used in hazardous areas: Zone 1 and Zone 2 .
2. Can be used in explosive gas atmospheres of Category IIA and II B where the temperature classification is T1-T4.
3. Steel conduit or cable wiring.
4. Flammable dust atmosphere.
5. widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.
Rated power |
Rated voltage |
Inlet thread |
Cable outer dia |
Wind rate(min/m3) |
Fan diameter(mm) |
charging time |
Temperature |
80W |
220V |
2-G3/4" |
9mm-14mm |
250/270
|
1200.1400 |
6h |
T1-T4 |

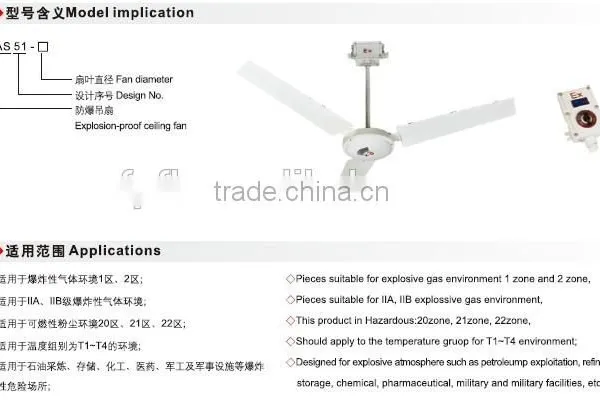

APPlications:
- Suitable for explosive gas environment Zone1 and Zone2.
- Suitable for IIA,IIB explosive gas environment.
- Suitable for explosion zone20,21,22
- Can be used in the environment of temperature group for T1~T4.
- Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.

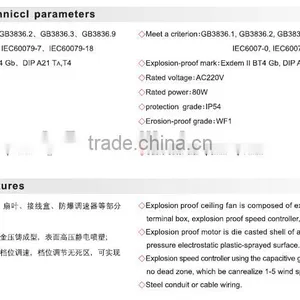

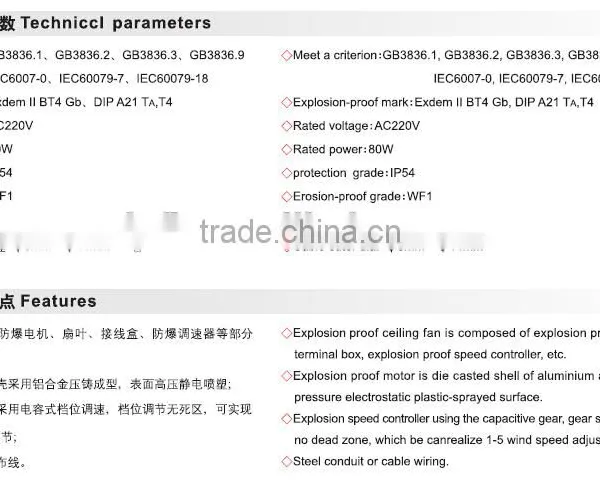

Techinical parameters:
- Meet a criterion: GB3836.1, GB3836.2, GB3836.3, GB3836.9, IEC6007-0, IEC60079-7, IEC60079-18.
- Ex-proof mark: Exdem II BT4 Gb, DIP A21 TA,T4.
- Rated voltage: AC220V
- Rated power: 80W
- Protection grade: IP54
- corrosion-proof grade: WF1
- Inlet thread: 2-G3/4"
- Cable outer dia:Φ9mm~Φ14mm
Product Features:
- Explosion proof ceiling fan is composed of explosion proof motor, fan, terminal box, explosion proof speed controller, etc.
- Explosion proof motor is die casted shell of aluminum alloy with high-pressure electrostatic plastic-sprayed surface.
- Explosion speed controller using the capacitive gear, gear speed regulation no dead zone, which be canrealize 1-5 wind speed adjustment.
- Steel conduit or cable wiring.
Feipu Explosion-proof Electric Co., Ltd. is an advanced electrical solution provider for hazardous areas of zone1, zone 2, and zone 20, zone 21, zone 22.
We have wide range explosion proof products of lamp & light fixtures, electrical equipments, and box & fittings. And excellent company crew of R&D, marketing and artificers that has abundant experience in both Chinese domestic market and overseas markets.
Our products and projects occur in various occasions of petroleum, chemical, military and workshop across the world.
We care the most of quality and stability of our products, as well as efficient communication and positive service to our customers and partners.
