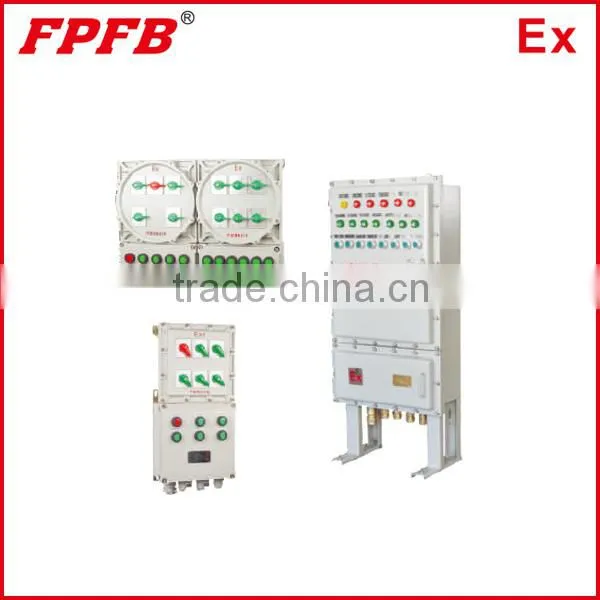

BXM(D)51 IIB Explosion proof distribution Exd box 400*650mm
1. Can be used in hazardous areas: Zone 1 and Zone 2 .
2. Can be used in explosive gas atmospheres of Category II A and II B and II C where the temperature classification is T1-T6.
3. Enclosure is cast with aluminnium alloy,surface is sprayed with plastic,fine outline.
4. With overload and short circuit protection functions.
5. Mould structure,each branch circuit can be assemled freely.

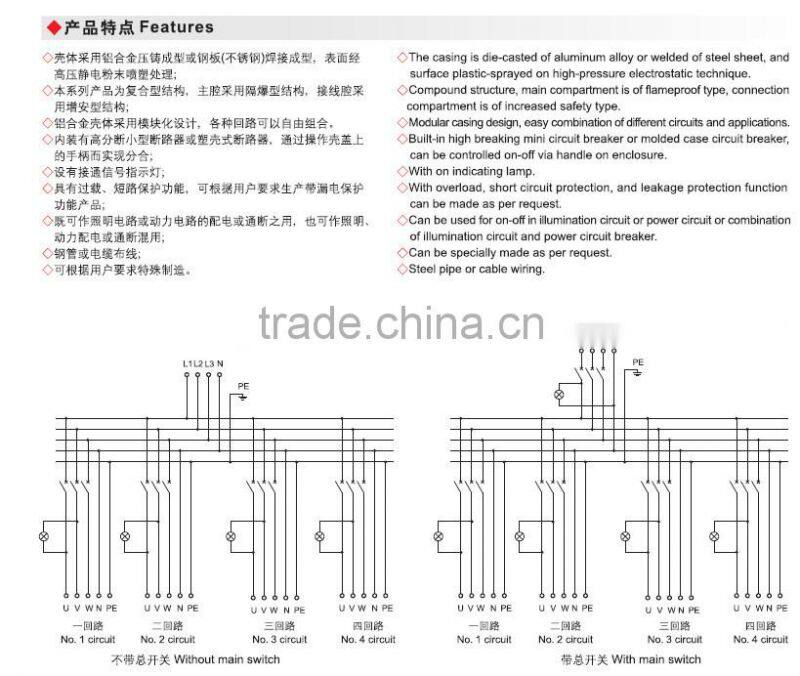

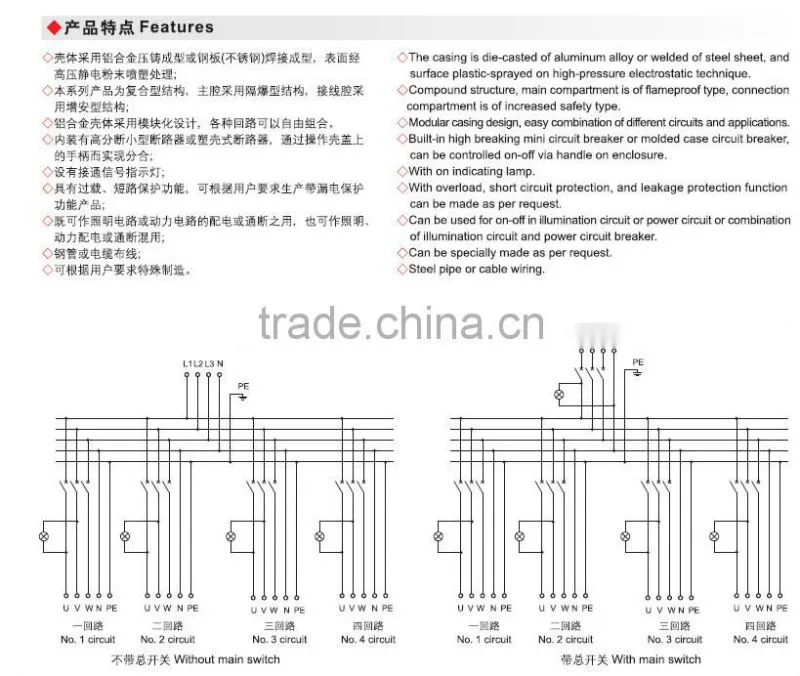

Product Features
1.Enclosure is cast with aluminum alloy or steel plate. Surface is sprayed with plastic by high pressure static. The shell and exposed fixed parts can be made of stainless steel.
2.The series of products is complex type or flameproof type, the hybrid of the electrical box is flameproof type and the junction box is increase safety type.
3.Mold structure, each branch circuit can be assembled freely.
4.Some products can be added hinges on request, which is convenient for installation and maintenance.
5.Built-in C65N, NC100H and S25-S high disjunction mini-circuit breaker, M611 or GV2 motor protector, 3VE1 air switch, CM1 plastic mounded circuit breaker and signal lamp.
6.Has over loading and short circuit protection function, leakage protection device can be added on request.
7.It can be made on request, including adding electric surge protector, ammeter and voltmeter and so on. Also can configure with padlock metal handles outside.
8.Wiring with steel tube or cable.

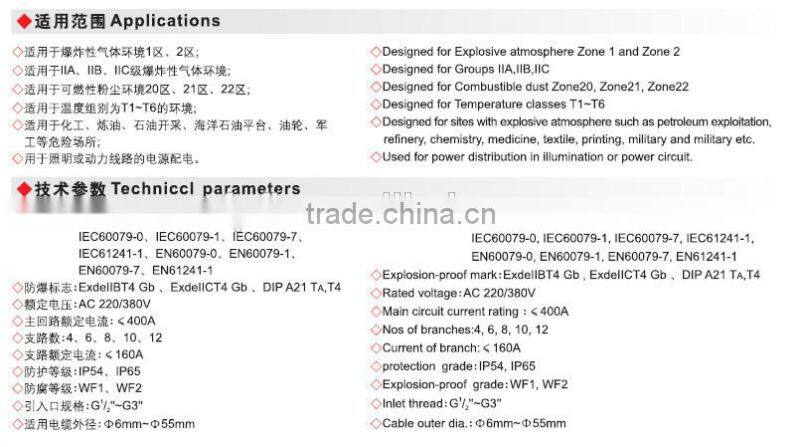

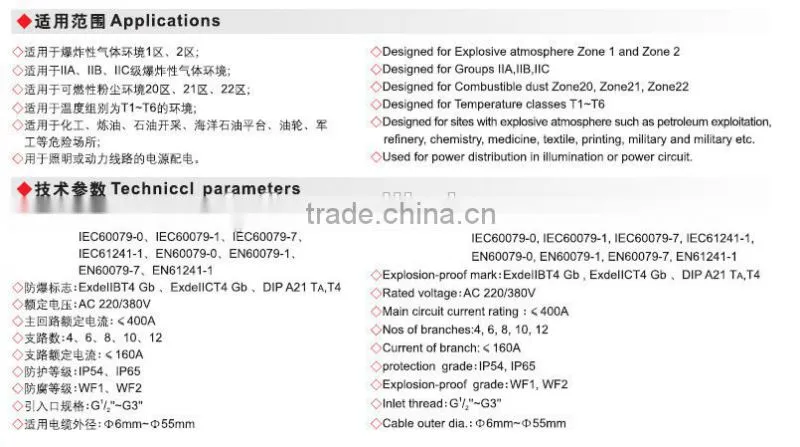

Applications
1. Can be used in zone 1 and zone 2, group IIA, IIB and IIC explosive atmosphere and zone 20, zone 21, zone 22 flammable dust atmospheres.
2. Temperature class: T1~T6
3. Indoor or outdoor (IP54, IP65*, IP66* indicate it when ordering).
4. Can be used in the chemical, petroleum refining, petroleum exploitation, offshore platform, tankers, military industry and other dangerous places.
Feipu Explosion-proof Electric Co., Ltd. is an advanced electrical solution provider for hazardous areas of zone1, zone 2, and zone 20, zone 21, zone 22.
We have wide range explosion proof products of lamp & light fixtures, electrical equipments, and box & fittings. And excellent company crew of R&D, marketing and artificers that has abundant experience in both Chinese domestic market and overseas markets.
Our products and projects occur in various occasions of petroleum, chemical, military and workshop across the world.
We care the most of quality and stability of our products, as well as efficient communication and positive service to our customers and partners.
Dear Customers,
Welcome to visit FPFB online marketing display.
To serve you in a better and efficient way, please browse our products and contact us with following information.
1. Where is the occasion products will be used, petroleum refinery, chemical factory or industrial workshop?
2. What is the purpose from products? Routine illumination, field illumination, platform lighting, emergency or portable.
3. Your preference on light source, power and installation methods etc.
We will offer our best products and prices according to your actual demand.
Sincerely yours,
FPFB sales team.
1. What is our advantage in the industry?
Our main advantage is high performance price ratio of our products, and positive service to our customers and partners.
Our products are not the top grade of quality in the industry, and our prices are not the lowest as well, but the performance price ratio of our products is outstanding.
2. What is our sales and distribution policy?
We welcome all kinds of business cooperation methods, including region distributors, new market agencies, project & bid buyers, and end user procurement.
3. Do you have warranty policy?
We offer at least 2 year-warranty for our products, longer warranty for certian products, and full lifespan aftersales service.
1. Standard export packing or customized packing available.
2. Shipping arrangement according to buyers request.
