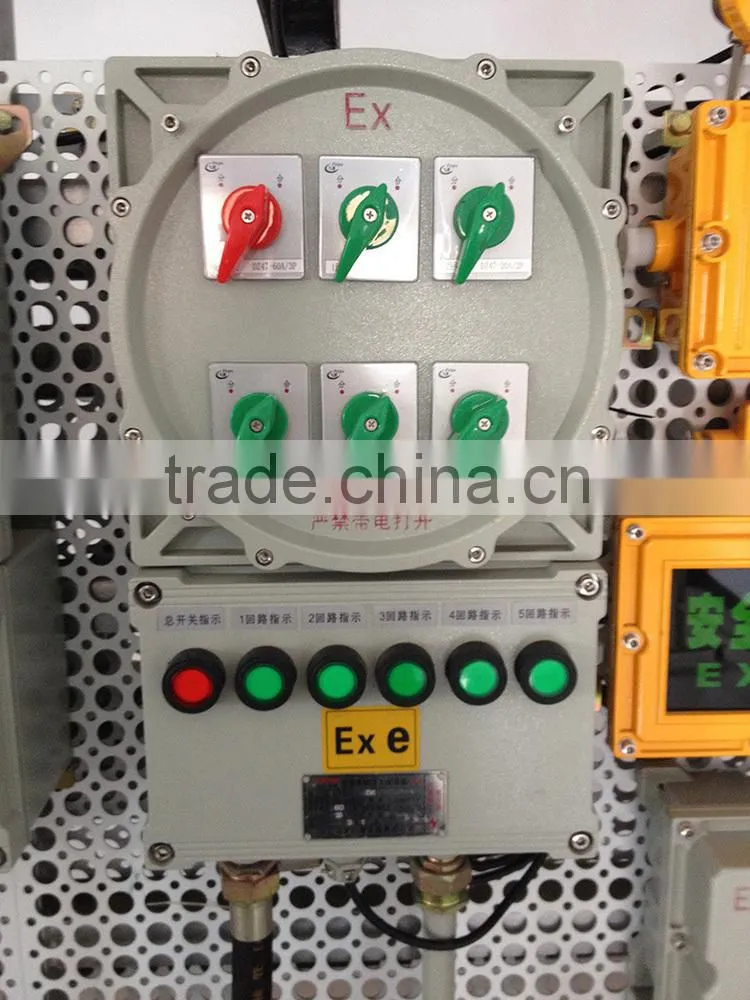

BXM(D)51 OEM Ex-protected distribution box with high quality
1. Can be used in hazardous areas: Zone 1 and Zone 2 .
2. Can be used in explosive gas atmospheres of Category II A and II B and II C where the temperature classification is T1-T6.
3. Enclosure is cast with aluminnium alloy,surface is sprayed with plastic,fine outline.
4. With overload and short circuit protection functions.
5. Mould structure,each branch circuit can be assemled freely.
6.Used for power distribution for illumination or power circuit.
APPLICATIONS:
- Designed for Explosive atmosphere Zone 1 and Zone 2
- Designed for Groups IIA IIB IIC
- Designed for combustible dust Zone 20,21,22.
- Designed for Temperature classes T1-T6.
- Designed for Sites with explosive atmosphere such as petroleum exploitation, refinery, chemistry,medicine,textile,printing,military and military etc.
- Use for power distribution in illumination or power circuit.
TECHNICAL PARAMETERS:
- Meet a criterion: GB3836.1 GB3836.2 GB3836.3 IEC60079-0 IEC60079-1 EN60079-0 ,etc
- Explosion proof Mark:Exde IIB T4 Gb Exde IIC T4 Gb DIPA21 TA T4
- Rated Voltage:AC220/380V
- Main circuit current rating : below 400A
- Current of Branch: 4.6.8.10.12
- Protection Grade:IP65 IP54,WF1,WF2
- Inlet thread:G1/2"-G3"
- Cabel diameter: 6-55mm
FEATURES:
- The casing is dia-casted of aluminum alloy or welded of steel sheet. and surface plastic sprayed on high pressure electrostatic technique.
- Compound structure ,main compartment is of flameproof type,connection compartment is increased safety type.
- Modular casing design,easy combination of differeant circuits and applications.
- Buitl in high brading mini circuit breaker of molded case circuit breaker,can be controlled on off via hanle on enclosure.
- with on indicating lamp.
- With overload,short circuit protection, and leakage protection function can be made as per request.
- Can be used for on off in illumination circuit or power circuit or combination of illumination circuit and power circuit breaker.
- Can be specially made as per request.
- Steel pipe or Cable wiring.
