la53-x explosion proof control button fire button warning button push button
1. Can be used in hazardous areas: Zone 1 and Zone 2 .
2. Can be used in explosive gas atmospheres of Category IIA and II B IIC where the temperature classification is T1-T6.
3. Steel conduit or cable wiring.
4. Flammable dust atmosphere.
5. widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.
6.Enclosure is casted of aluminum alloy with high voltage electrostatic powder coated suiface aftwer shot blasted.

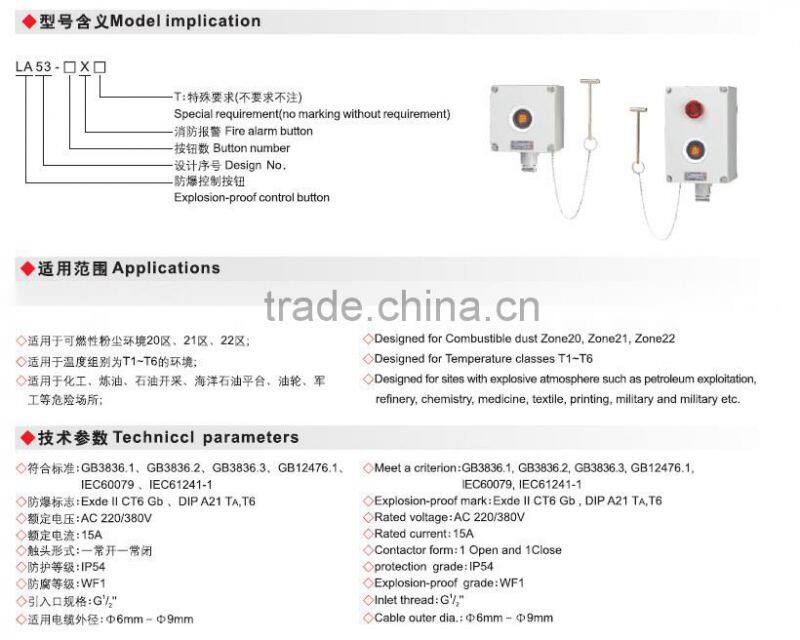

Model |
Voltage |
Rated current |
Ex-mark |
Degree of protection |
Erosionproofclass |
cableouterline |
LA53-X |
AC220V/380V |
15A |
Exde II CT6 Gb, DIP A21 TA, T6 |
IP54 |
WF1 |
G1/2'' |
APPlications:
- Suitable for explosive gas environment Zone1 and Zone2.
- Suitable for IIA,IIB,IIC explosive gas environment.
- Suitable for explosion zone20,21,22.
- Can be used in the environment of temperature group for T1~T6.
- Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.
Techinical parameters:
- Meet a criterion: GB3836.1, GB3836.2, GB3836.3, GB12476.1, IEC60079, IEC61241-1,
- Ex-proof mark: Exde II CT6 Gb, DIP A21 TA,T6.
- Rated voltage: AC220/380V
- Rated current: 15A
- Contactor form: 1 Open and 1 close
- Protection grade: IP54
- corrosion-proof grade: WF1
- Inlet thread: G1/2"
- Cable outer dia:Φ6mm~Φ9mm

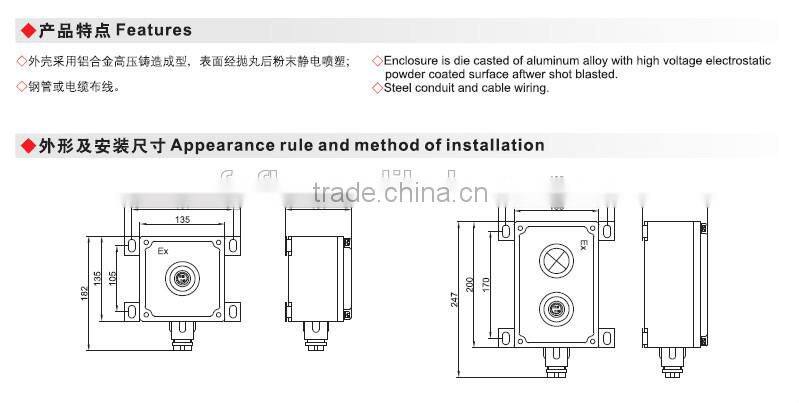

Product Features:
- Aluminum alloy enclosure, surface plastic-sprayed on high-pressure electrostatic technique.
- Steel conduit or cable wiring.
